PRODUCT DETAILSSIEMENS

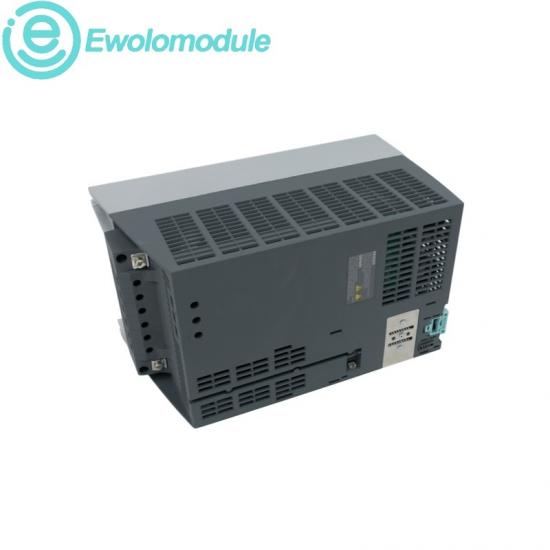

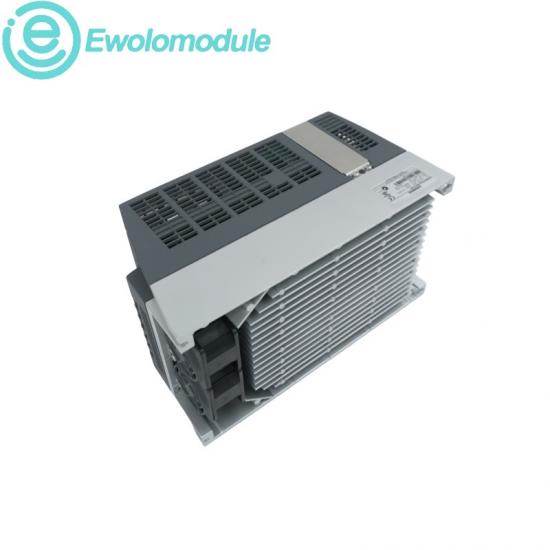

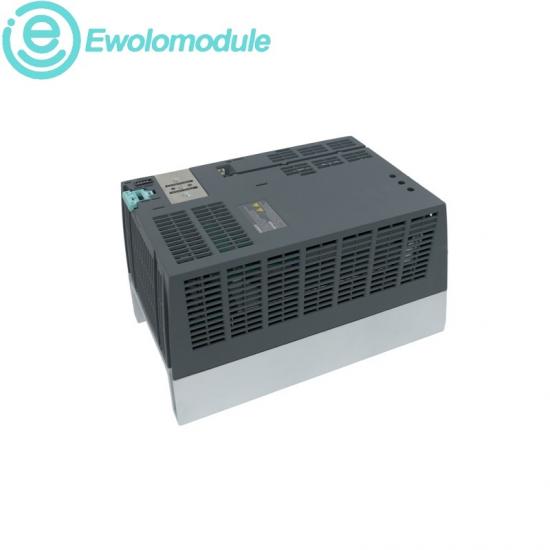

Article number 6SL3220-1YD36-0UB0 Warranty: One year Availability: In stock	Official product name SINAMICS G120XA 37 kW Drive
	Description: 37 kW SINAMICS G120XA drive for three-phase 380–440 V applications.
Tel : +86 17359287459\|Email : sales9@apterpower.com

SPECIFICATIONS

Technical profile

SINAMICS G120XA is an AC drive rated at 37 kW for 380–440 V three-phase supplies. The official data sheet lists integrated USS, Modbus RTU and BACnet MS/TP communications.

OFFICIAL TECHNICAL DATA

Drive family	SINAMICS G120XA	Rated power	37 kW at 400 V
Input supply	3 AC, 380 to 440 V +10/-20%	Line frequency	47 to 63 Hz
Rated output current	73.5 A at 380 V	Frame size	FSD
Degree of protection	IP20 / UL open type	Integrated fieldbus	USS, Modbus RTU, BACnet MS/TP
Ambient operating temperature	-20 to +60 °C	Standard board coating	3C2

CERTIFICATION & STANDARDS

The official data sheet lists CE, EAC, RCM and RoHS II compliance.

COMPATIBILITY & INTEROPERABILITY

Configured for three-phase 380–440 V supply and integrated USS, Modbus RTU or BACnet MS/TP communications; supplied without I/O expansion.

RECOMMAND

RELATED INDUSTRIES

Pumping, ventilation, water treatment and building-infrastructure drive systems.

APPLICATION SCOPE

Variable-speed control of 37 kW motors in compatible SINAMICS G120XA applications.
