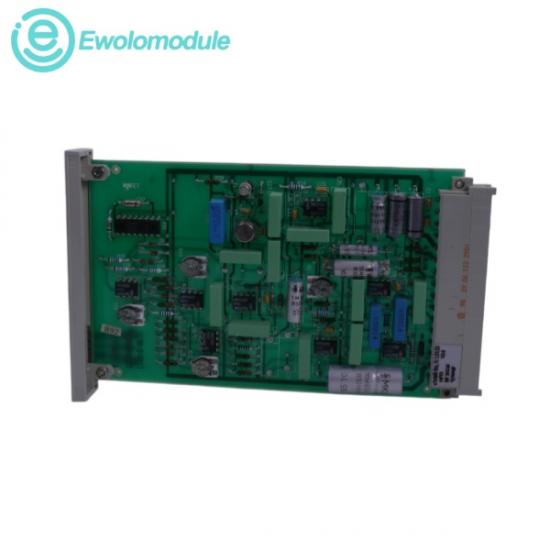

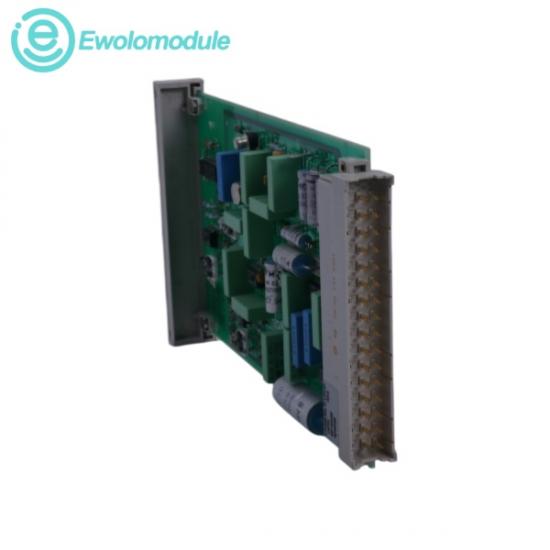

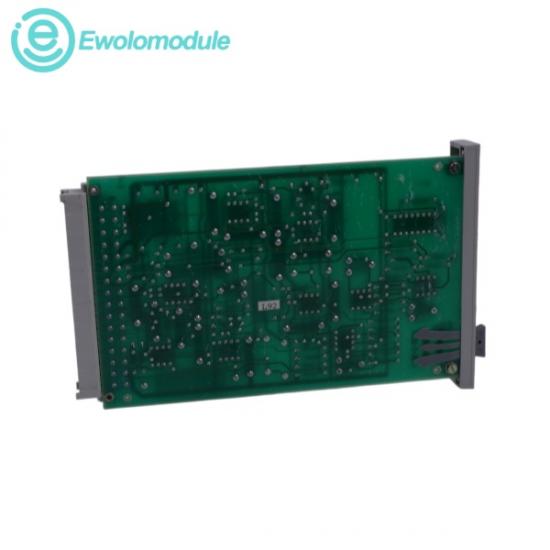

The Siemens 7TW4600-0/BF is a high-density, multi-channel industrial digital input module engineered to bridge discrete field devices with centralized processing controllers. Acting as a rugged status-tracking node, it continuously senses binary signals, such as mechanical contact openings/closings, limit switch positions, or proximity sensor states and translates them into stable logic levels for the system CPU. The module features an advanced architecture constructed on a multi-layer printed circuit board (PCB) with onboard logic filters, state status LEDs, and a dense current-sinking or current-sourcing input configuration.

l Nominal Operating Voltage: 24 V DC standard system logic power

l Nominal Input Current: Draws approximately 4 mA to 7 mA per channel

l Signal State Thresholds: Signal state "0" (OFF): -3 V DC to +5 V DC

l Signal State Thresholds: Signal state "1" (ON): +13 V DC to +30 V DC

l Input Impedance: Rated at approximately 3.3 kΩ to 4.7 kΩ nominal across individual input loops

l Ambient Operating Temperature: Engineered for harsh industrial thermal environments spanning from 0 °C to +60 °C

l Storage Temperature Range: Safe keeping limits from -40 °C to +70 °C

l Relative Humidity Tolerance: Up to 95% non-condensing moisture resistance

Machinery Interlock Tracking:

Monitors automated assembly line pushbuttons, emergency stop circuits, and mechanical safety guard doors to manage factory interlocking systems.

Substation Status Telemetry:

Installed in power plant electrical control panels to capture real-time binary feedback regarding heavy circuit breaker states and isolator valve positions.

Material Handling and Conveyors:

Collects precise discrete triggers from physical alignment rollers, load-sensing plates, and proximity switches across high-volume distribution centers.

Chemical Process Control:

Connects with discrete float switches, pressure triggers, and valve-closed feedback arrays inside high-density control racks under severe electromagnetic noise.
