PRODUCT PASSPORT · 01

SIEMENS / SINAMICS PERFECT HARMONY

A1A10000432.71M

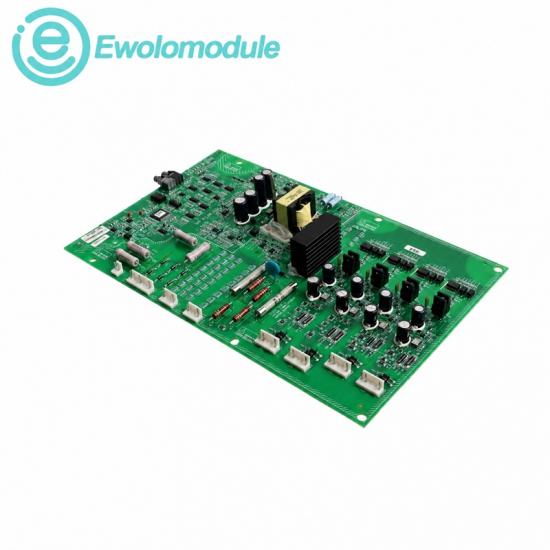

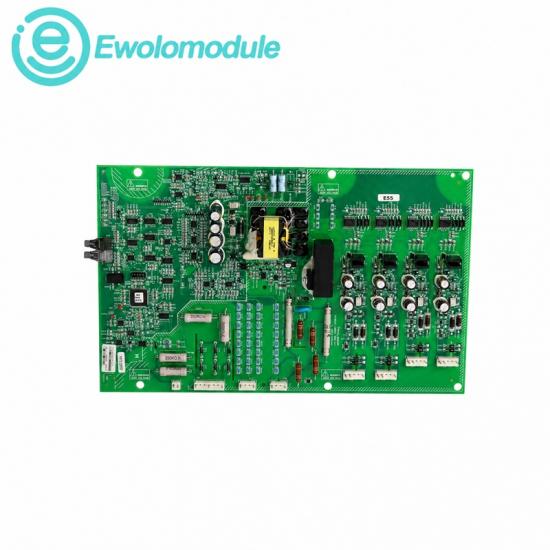

Cell Control Board

A service control board identified by the complete Siemens legacy material number A1A10000432.71M. It belongs to the Robicon technology lineage now represented by the SINAMICS PERFECT HARMONY medium-voltage drive platform.

CELL
CTRL

Power-cell control interface

BRAND

Siemens

SERIES

SINAMICS PERFECT HARMONY

OFFICIAL NAME

Cell Control Board

SOURCE

Siemens SINAMICS PERFECT HARMONY GH180 Catalog D 17

CONDITIONNew Original

WARRANTYOne year

IN STOCK1 pcs

TECHNICAL CIRCUIT · SYSTEM MAP

Control intelligence within a modular power-cell architecture

Siemens PERFECT HARMONY drives use cascaded power cells coordinated by master control. Fiber-optic signal paths provide communication between the control system and individual cell assemblies.

ORDERING CODE NOTE

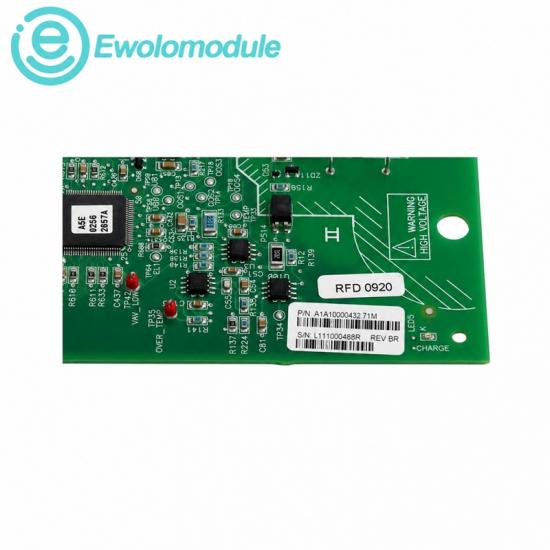

The full A1A10000432.71M material number must be matched as one complete identifier. Siemens does not provide a public decoder for the .71M suffix.

VERIFIED DATA

Complete model

A1A10000432.71M

Product family

SINAMICS PERFECT HARMONY GH180

Technology lineage

Robicon multilevel topology, now Siemens

System class

Medium-voltage variable-frequency drive

Drive architecture

Cascaded modular power cells

Control communication

Fiber-optic signals to and from master control

Availability concept

Integrated power-cell bypass capability

Compatibility rule

Match the complete board number and drive service record

SIGNAL ROUTE

Master control

Fiber-optic link

Cell control board

Power cell

Modular service

Supports service work within a cell-based drive architecture.

Isolated signalling

Fiber-optic control paths separate signal communication from power circuitry.

Exact matching

The complete material and revision code must be verified before replacement.

03 / FIELD DIRECTORY

Applications

Medium-voltage drives

Control-board service for SINAMICS PERFECT HARMONY installations.

Process machinery

Drive systems used with pumps, fans, compressors and conveyors.

Lifecycle support

Identification and replacement of legacy Robicon power-cell electronics.
