SIEMENS • PRODUCT DETAILS

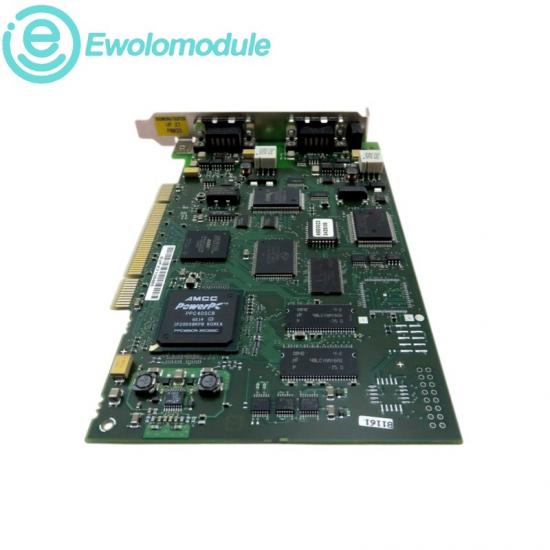

SIMATIC NET PROFIBUS Communication Processor

CP 5614 A2

PRODUCT IDENTITY

A PCI communication processor with two RS-485 PROFIBUS interfaces for simultaneous master and slave communication in PC-based automation.

☎+86 17359287459 ✉sales9@apterpower.com

SPECIFICATIONS • OFFICIAL PRODUCT DATA

Diagnostics, protection and installation

DIAGNOSTIC & PROTECTION

Separate PROFIBUS interfaces support diagnostics for master and slave communication paths

SIMATIC NET software provides communication status and configuration diagnostics

The PCI processor supports reliable PC-based PROFIBUS network operation

INSTALLATION & UPGRADE

Install the short-format PCI card in a compatible industrial PC slot

Connect the two RS-485 PROFIBUS interfaces according to the master and slave network design

Configure the CP 5614 A2 with the supported SIMATIC NET software and station settings

OFFICIAL TECHNICAL DATA

PRODUCT DESIGNATION

CP 5614 A2

PRODUCT FAMILY

SIMATIC NET

INTERFACE TYPE

PCI, short format

PROFIBUS INTERFACES

2 x RS-485

OPERATING MODES

Master and slave

SIMULTANEOUS OPERATION

Master/slave supported

APPLICATION

PC-based PROFIBUS communication

MANUFACTURER

Siemens

RECOMMAND • APPLICATION CONTEXT

Industry relevance and application scope

RELATED INDUSTRIES

Factory automation, process control, test systems, industrial PCs and PROFIBUS network integration.

APPLICATION SCOPE

PC-based PROFIBUS master and slave communication through two independent RS-485 interfaces.
