PRODUCT IDENTITY

CALL +86 17359287459 EMAIL sales9@apterpower.com

VIBRO-METER

MEGGITT CONDITION MONITORING

ARTICLE NUMBER

IQS452

OFFICIAL PRODUCT NAME

Eddy-Current Signal Conditioner

REFERENCE 204-452-000-221

CONDITION

New Original

WARRANTY

One year

AVAILABILITY

In stock

TECHNICAL & CONTROL PROFILE

CALL +86 17359287459 EMAIL sales9@apterpower.com

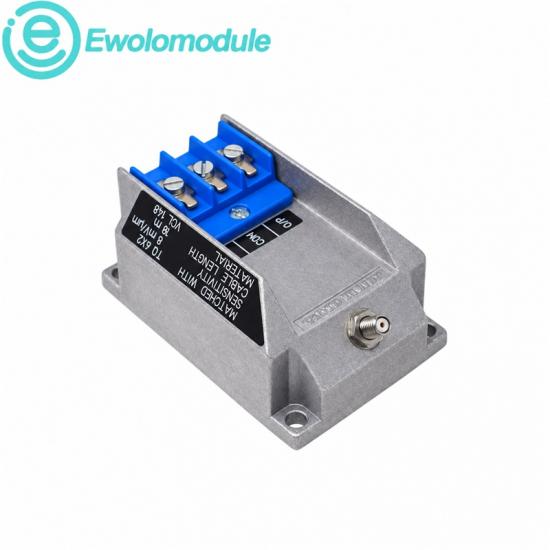

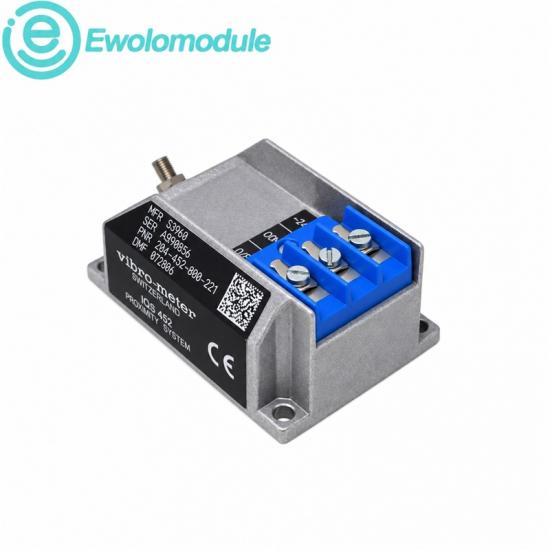

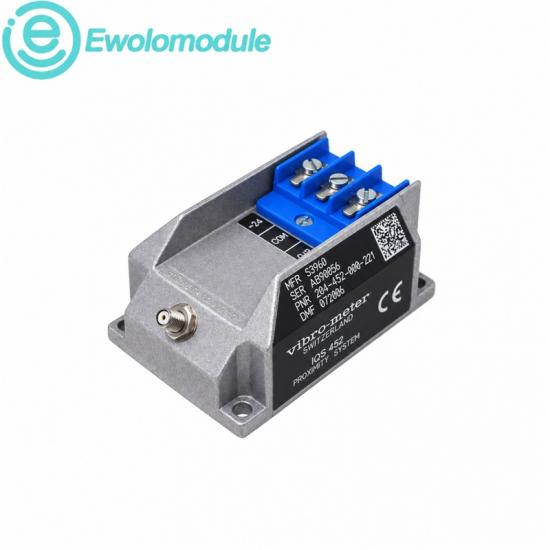

A Vibro-Meter IQS452 signal conditioner for matched eddy-current probe systems, converting shaft displacement or vibration measurements into a conditioned voltage signal.

TECHNICAL SPECIFICATIONS

Manufacturer	Vibro-Meter
Part number	204-452-000-221
Device type	Eddy-current signal conditioner
Measuring range	2 mm
Sensitivity	8 mV/µm
Dynamic output range	16 V
Output signal	−1.6 to −17.6 VDC
Frequency response	DC to 20 kHz
Power supply	−20 to −32 VDC isolated
Operating temperature	−30 to +70 °C

OPERATING ENVIRONMENT

Install with the specified probe and extension cable in rotating-machinery monitoring cabinets. Preserve cable length, shield termination, power isolation and environmental limits during replacement.

MATCHED PROBE

ISOLATED SUPPLY

−30 TO +70 °C

MONITORING & CONTROL

Conditions shaft displacement and vibration signals for protection or diagnostic channels. Check probe gap voltage, sensitivity, polarity, frequency response and alarm-channel scaling before commissioning.

SHAFT GAP

8 mV/µm

DC–20 kHz

BRAND & APPLICATION OVERVIEW

BRAND CHARACTERISTICS

Vibro-Meter monitoring hardware provides precise transducer conditioning, wide-band machinery signals and dependable integration with protection systems.

PRECISION SIGNAL

WIDE BAND

MACHINE PROTECTION

APPLICATION FIELDS

Used on turbines, compressors, pumps and generators for shaft position, relative vibration and rotating-equipment condition monitoring.

TURBINES

COMPRESSORS

GENERATORS

RELATED MODELS

Vibro-Meter

IQS450	IQS452	TQ402	TQ412	EA402
GSI127	GSI130	UVC752	UVV696	VM600 MPC4
VM600 IOC4T	VM600 CPUM	VM600 IOCN	RLC16	XMV16
ABE040	CMC16	XIO16T	RPS6U	PLD772

Koyo Electronics

D2-230	D2-240	D2-250-1	D2-260	D2-430
D2-440	D2-450	D2-16ND3-2	D2-16NA	D2-16TD1-2
D2-08NA-1	D2-04AD	D2-08AD-1	D2-02DA	D2-08TR
D4-450	D4-16ND2	D4-16TD2	DL06	CLICK PLUS C2-03CPU
