Product category: VMIC VMIVME-4900 Digital-to-Synchro/Resolver Converter Board Series

Product status: New and Original

Tariff code: 85371091

Product description:

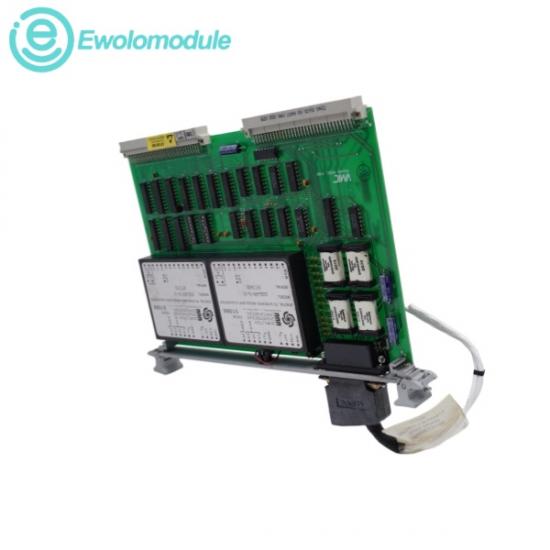

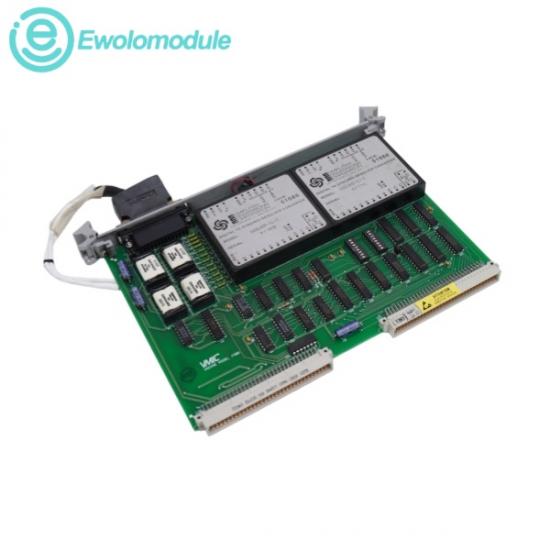

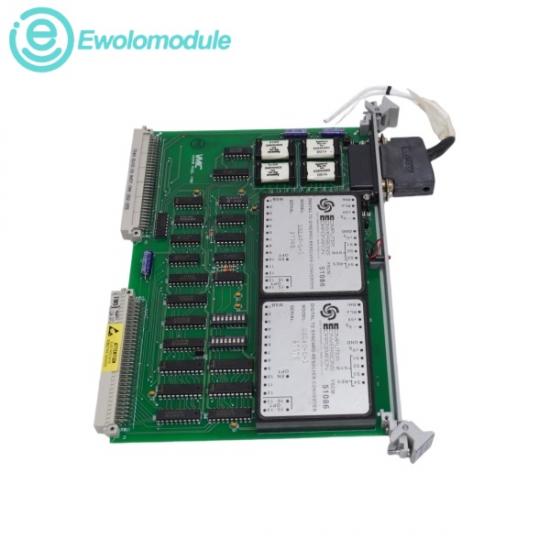

VMIC VMIVME-4900 Dual-Channel Digital-to-Synchro/Resolver Converter Board

VMIC VMIVME-4900 is a dual-channel 14-bit digital-to-synchro/resolver VMEbus converter with ±4 arc-minute accuracy, internal transformers, and 3- or 4-wire outputs; VMIVME-4900 supports fault-isolated industrial position-control and simulation systems requiring dependable angular-signal generation in critical applications.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

Product Overview

The VMIC VMIVME-4900 is a dual-channel VMEbus digital-to-synchro/resolver converter board that converts 14-bit digital position commands into 3-wire synchro or 4-wire resolver outputs It delivers ±4 arc-minute overall accuracy, supports 1.5, 4.5, and 5.0 VA output configurations, uses internal transformers, provides short supervisory or nonprivileged I/O access, and supports real-time and off-line fault detection and isolation through the VMIC SRTbus

Converter resolution	14-bit	VMEbus supply	+5 V ±5% at 2 A
Overall accuracy	±4 arc minutes	Positive external supply	+15 V ±10% at 600 mA per channel, typical
Channel voltage ranges	7.0, 11.8, and 90.0 V	Negative external supply	−15 V ±10% at 600 mA per channel, typical
Output power options	1.5, 4.5, and 5.0 VA	Operating temperature	0 to +45 °C for 5.0 VA options; 0 to +55 °C for all other options
Output wiring	3-wire synchro or 4-wire resolver	Storage temperature	−20 to +85 °C

Industrial Applications

1. VMEbus position-control systems: Converting host digital position commands into synchro or resolver output signals for angular-position control

2. Synchro output systems: Driving 3-wire synchro loads through selectable voltage and VA configurations with internal transformer isolation

3. Resolver output systems: Driving 4-wire resolver loads in VMEbus-based control, instrumentation, and simulation equipment

4. High-power synchro interfaces: Using the VMIVME-4900-218R configuration with compatible high-power synchro booster amplifiers

5. Fault-detection subsystems: Supporting real-time and off-line fault detection and isolation with the VMIC SRTbus and compatible VMIVME-4910 or VMIVME-4911 hardware

Application Industry

1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
