➤Product
|

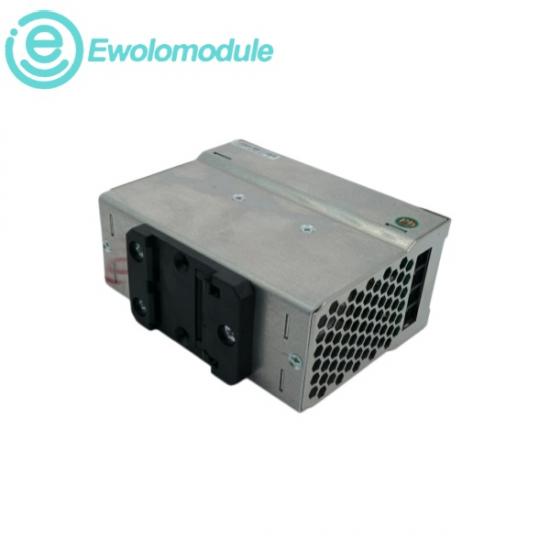

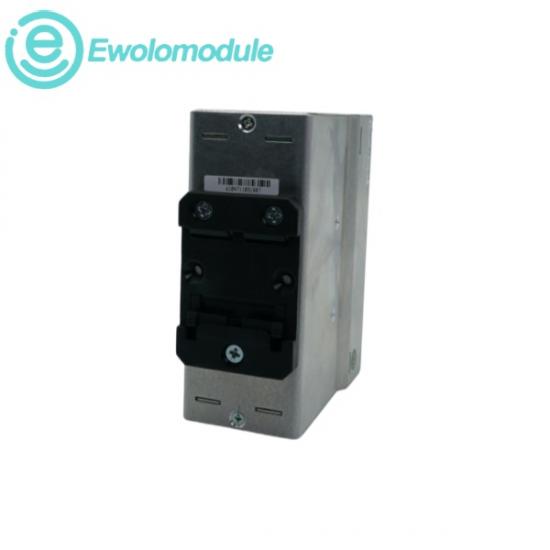

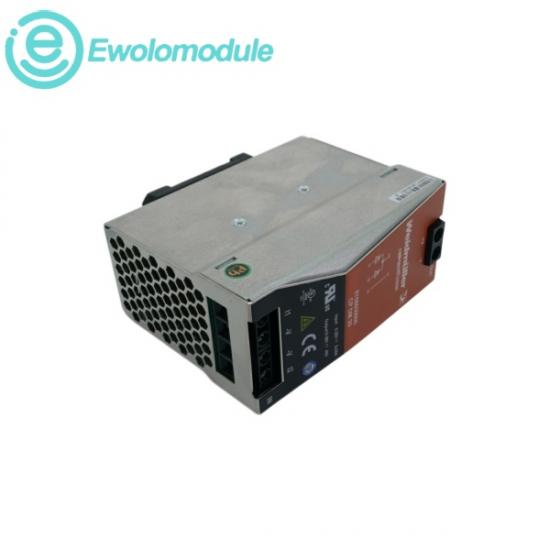

The WEIDMULLER CP-DM20 is an industrial-grade, rail-mounted diode module engineered to isolate and couple dual power circuits. Acting as a passive safety decoupling bridge within automated setups, it links parallel switched-mode power units to achieve fault-tolerant power configurations. By separating input lines through internal diode pathways, it prevents a single localized short-circuit fault in one supply line from crippling the entire DC bus framework. |
|
|
Maximum Input Voltage: |
Up to 40 V DC maximum |
|
Maximum Input Current: |
Configured for dual lines up to 2 x 0...20 A max |
|
Maximum Output Current: |
Up to 40 A max |
|
Total Output Power Capacity: |
Evaluated up to 960 Watts |
|
Ambient Operating Temperature: |
Formally rated from -10 °C to +55 °C |
|
Storage Temperature Boundaries: |
Safely preserved between -20 °C and +85 °C |
➤Features
|
Advanced Multi-Module Compatibility: Designed to interface directly with external DC UPS modules, active electronic load monitoring equipment, and smart power management networks. |
|
High-Density Slim Form Factor: Engineered with a space-saving compact footprint optimized for installation inside flat field control cabinets and tight junction boxes. |
|
Flexible Dual-Channel Logic: Employs an internal dual-diode cathode configuration to cleanly parallel split loads or establish active n+1 supply topologies. |
|
Tool-Free TS 35 Rail Grounding: Mounts securely onto standard TS 35 terminal rails with specific mechanical clearance margins to maintain natural convective cooling. |
➤Application
Refinery: Controls emergency shutoff valves to prevent fire and explosion.
Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.
Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.
Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.
Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
