Item

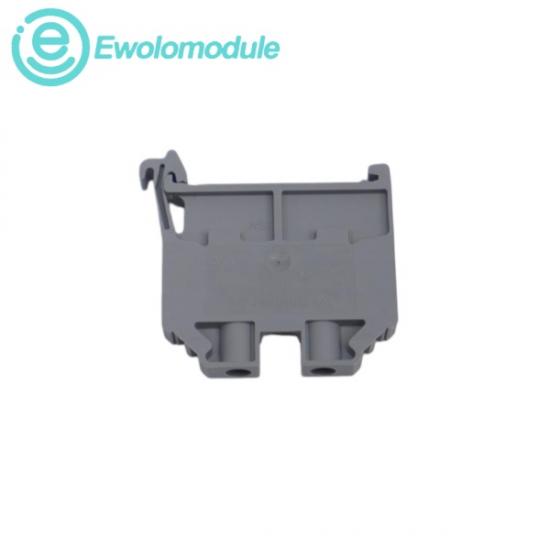

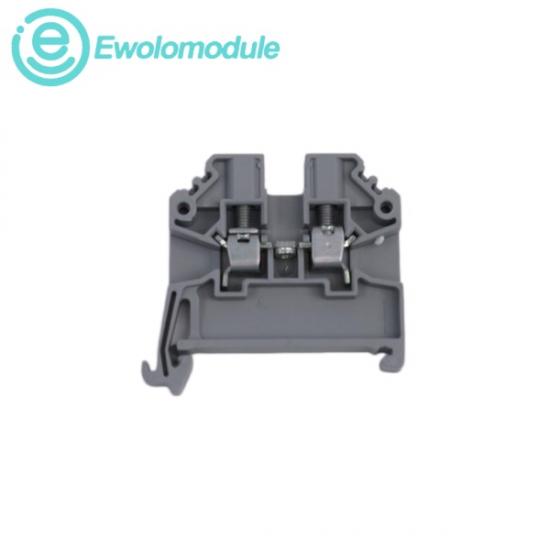

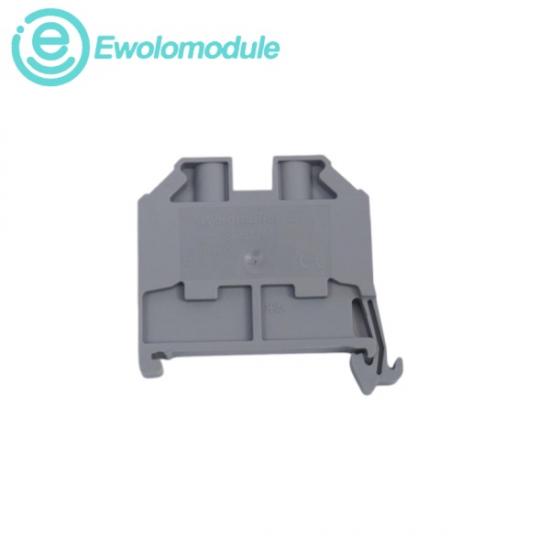

The Weidmuller SAKDU4 is a standard industrial modular feed-through terminal block engineered to securely join and distribute electrical wiring. Constructed with a high-grade modified PA66 insulating housing, it possesses excellent tracking resistance and an impressive UL94 V-0 flammability class rating. It employs the classic hardened steel clamping yoke mechanism coupled with a premium tinned copper busbar, creating high mechanical pull-out forces that compensate for thermal fluctuations and completely eliminate the need to retighten clamping screws over years of service.

Specifics

Rated Cross-Section: 4 mm² nominal conductor capability

Clamping Wire Gauge Range: Accommodates AWG 20 to AWG 10 wire sizes

Rated Operational Current: Rated for a continuous thermal load of 32 A

Rated Operational Voltage: Certified up to 800 V

Maximum Working Temperature: Long-term thermal stability rated up to 120°C

Application

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
