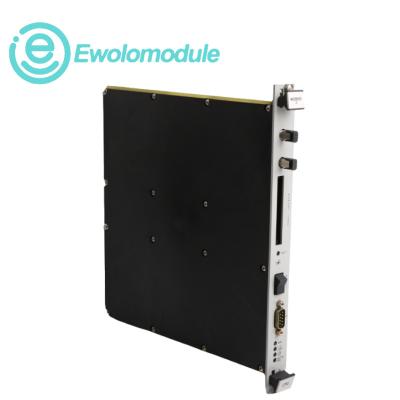

The Woodward 5464-653 discrete output module belongs to the 5464 series PLC I/O components. It is primarily used to convert the logic output signals of the controller CPU into multiple independent digital switch levels to drive and control the on/off states of field devices. This module is often used in conjunction with Woodward NETCON/MicroNet controllers, front-end CPUs, and relay interface modules, playing a crucial role in turbine control systems, generator sets, process control, and discrete I/O-intensive automation.

This module supports up to 32 discrete output channels, each driven by commands sent from the CPU module. It is suitable for driving relays, contactors, or directly controlling external DC/AC loads (through external relay interfaces, etc.). The module's outputs use an open-drain/collector structure, enabling isolated drive and feedback control when used with external relay interfaces. The 5464-653 is installed in a slot on the backplane of the control cabinet and communicates with the CPU and other I/O modules via the backplane bus.

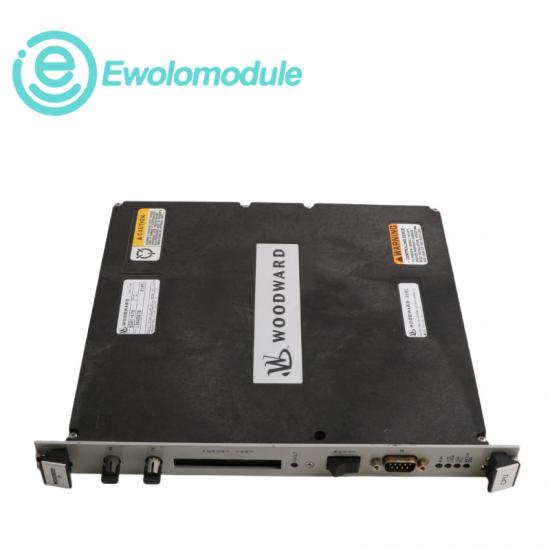

The Woodward 5464 Series is a broad portfolio of digital control, speed control, governor, I/O and automation modules designed for industrial engine and turbine control systems. These modules are typically part of Woodward’s MicroNet / NetCon platform, offering rugged, reliable control components for power generation, marine propulsion, engine governors and complex automation systems.
