Product category: WOODWARD SPC Servo Position Controller Series

Product status: New and Original

Tariff code: 85389091

Product description:

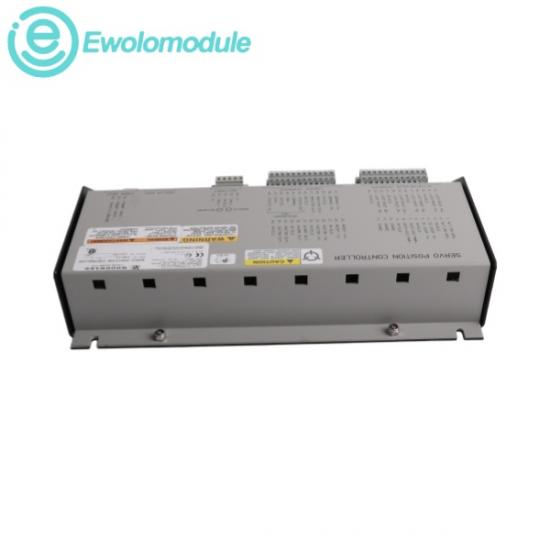

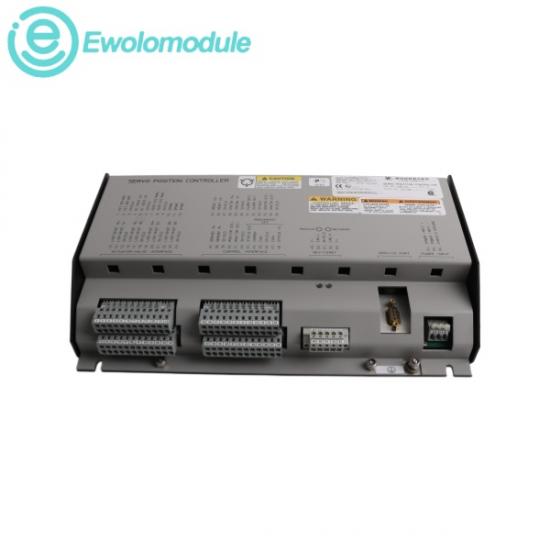

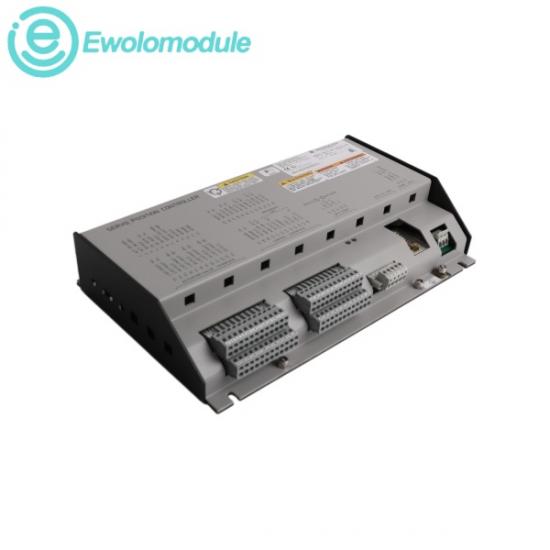

WOODWARD 8200-226 Servo Position Controller

WOODWARD 8200-226 is a DeviceNet-enabled SPC servo position controller for precise hydraulic or pneumatic actuator positioning. 8200-226 accepts 4–20 mA demand signals, supports redundant feedback devices and provides configurable actuator-driver current ranges.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed, I will make ProForma Invoice with bank account for you to pay.
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp: +86 17359287459

Email: sales15@amikon.cn

Add: Siming district, Xiamen, Fujian, China

Product Overview

The WOODWARD 8200-226 is the DeviceNet model in the Woodward SPC Servo Position Controller series. It positions a hydraulic or pneumatic single-coil actuator from a DeviceNet or 4–20 mA demand signal, processes single or dual position-feedback devices, and supports configuration, calibration, monitoring and troubleshooting through the SPC Service Tool.

Nominal input voltage	24 Vdc	Actuator driver ranges	±10, ±25, ±50, ±100, ±250 mA
Input voltage range	18–32 Vdc	Analog demand range	4–20 mA nominal
Maximum continuous current	1.1 A	Analog input impedance	200 Ω
Power dissipation	20 W typical	System accuracy	0.25% FS at 25 °C
Operating temperature	–40 to +70 °C	Relay driver maximum current	500 mA

Industrial Applications

1. Steam- and gas-turbine valve control: Positioning hydraulic or pneumatic single-coil actuators from DeviceNet or 4–20 mA demand signals in turbine governing systems.

2. Compressor control systems: Driving compatible actuator and valve assemblies that require closed-loop position feedback in industrial compressor installations.

3. Marine propulsion and auxiliary machinery: Providing certified actuator-position control for ships, high-speed craft, light craft and mobile offshore units.

4. Oil, gas and process equipment: Controlling valve actuators in Class I, Division 2 or Zone 2 cabinet installations that meet the specified enclosure and wiring requirements.

5. DRFD modernization projects: Replacing inactive SPC models 8200-224 and 8200-225 or upgrading compatible Digital Remote Final Driver installations.

Application Industry

1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
