XYCOM · VME ANALOG INPUT CALL +86 17359287459 EMAIL sales9@apterpower.com

XVME 500

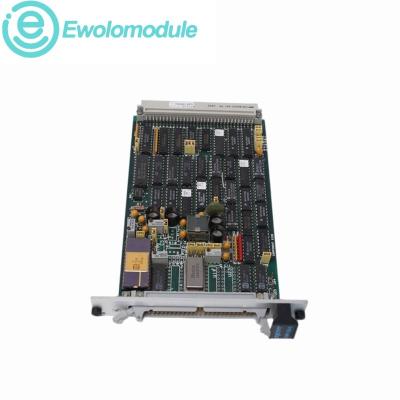

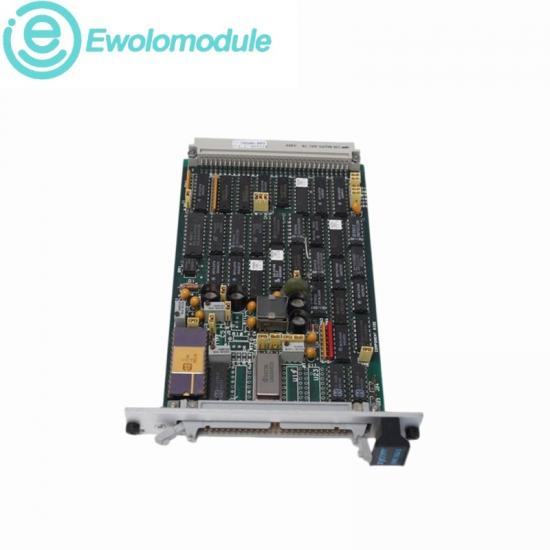

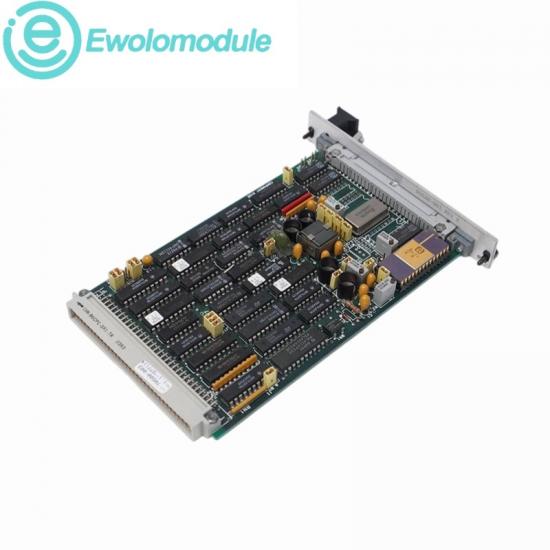

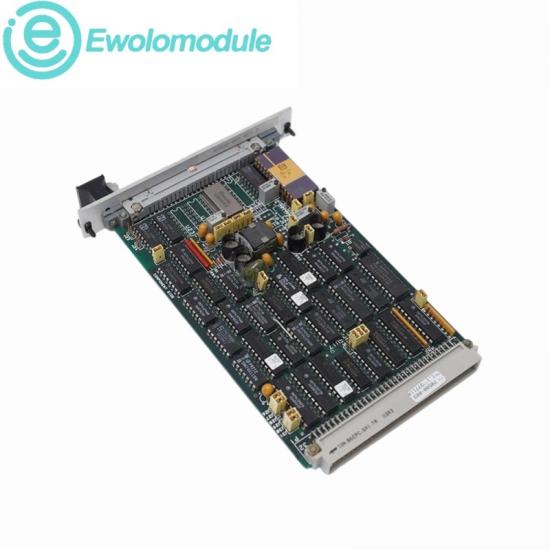

VMEbus 16-Channel 12-Bit Analog Input Module

CONDITION
New Original

WARRANTY
One year

AVAILABILITY
In stock

TECHNICAL DETAILS CALL +86 17359287459 EMAIL sales9@apterpower.com

The XVME 500 is a single-high VMEbus analog input board for precision industrial data acquisition. It accepts single-ended or differential signals, provides 12-bit conversion and supports selectable voltage ranges and gain for legacy process-control and test systems.

MODULE TYPE Analog input module	BUS VMEbus IEEE 1014	INPUT CHANNELS 16 SE / 8 DI
RESOLUTION 12 bit	INPUT RANGES 0-10 V, ±5 V, ±10 V	THROUGHPUT 20 kHz

PERFORMANCE & EFFICIENCY

Twelve-bit conversion, selectable gain and multi-channel scanning support stable acquisition of process signals while preserving the original VME address and interrupt architecture.

FIRMWARE & UPDATES

This hardware board does not use separately loaded field firmware. Verify base-address jumpers, gain resistors, input mode and host-driver settings against the installed XVME rack documentation before replacement.

BRAND CHARACTERISTICS

Xycom VME modules use documented board identities, standard backplane interfaces and serviceable configurations that support long-term maintenance of installed data-acquisition systems.

VME COMPATIBLE

12-BIT ACQUISITION

SERVICEABLE

APPLICATION FIELDS

Used in process monitoring, machine control, laboratory test systems, sensor acquisition and legacy VME retrofit projects requiring multi-channel analog measurement.

PROCESS CONTROL

TEST SYSTEMS

LEGACY RETROFIT
