Description

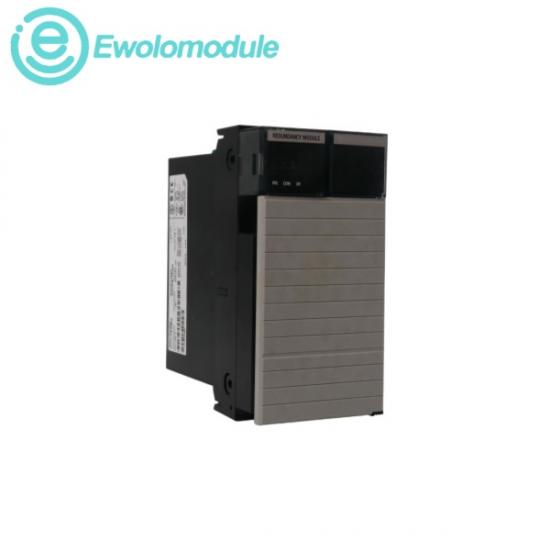

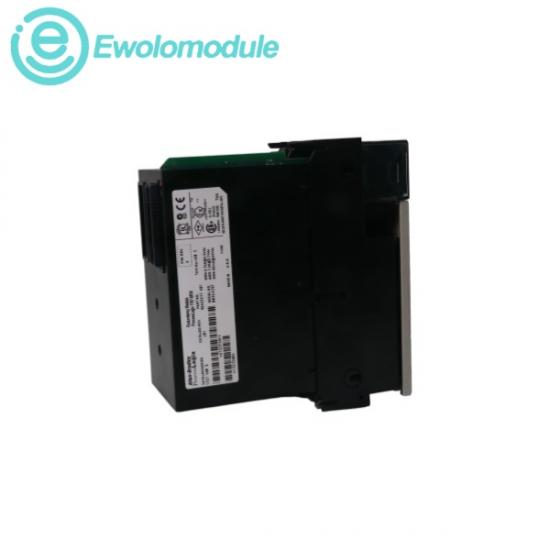

The 1757-SRM is a high-availability synchronization hardware interface engineered to establish a fault-tolerant backup infrastructure on critical production lines. Operating in matching pairs across two distinct 1756 ControlLogix chassis (Primary and Standby), it eliminates single points of system failure by using high-speed fiber-optic linkages to continuously mirror program execution states, I/O connection tables, and memory data tags from the active controller to the backup unit. In the event of a hardware, power, or communication network fault, the module initiates an automated, bumpless control transfer to the secondary rack within milliseconds to ensure uninterrupted process continuity. Additionally, field engineers can leverage an onboard four-character alphanumeric rolling display and dedicated status LEDs (PRI, COM, Health) for real-time diagnostics, while an embedded solid-state primary status relay provides immediate system-failure signaling for external warning horns, beacons, or SCADA supervisory logs.

Data informations

l Backplane Input Voltages: Draws power natively at 5.1 VDC and 24 VDC from the standard 1756 chassis power supply

l Backplane Current Draw (5.1V DC): 1.8 A (Typical)

l Backplane Current Draw (24V DC): 0.12 A (Typical)

l Maximum Power Consumption: 11.28 W

l Power Dissipation / Thermal Output: 38.49 BTU/hr

l Relay Contact Ratings: Max 30V DC at 100 mA (Resistive loads only)

l Operating Temperature Limits: 0°C to 60°C (32°F to 140°F)

l Relative Operating Humidity: 5% to 95% non-condensing
