Description

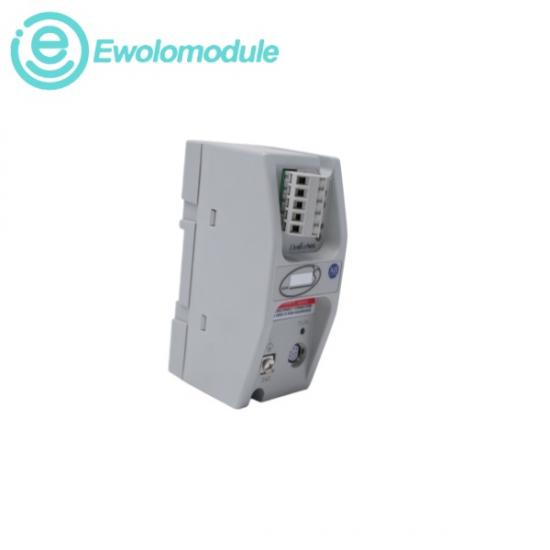

The 1761-NET-DNI is a standalone, intelligent protocol conversion device manufactured by Rockwell Automation under the Allen-Bradley brand, designed to seamlessly integrate serial controllers into high-speed industrial networks. Acting as a protocol bridge, it converts point-to-point DF1 Full-Duplex serial signals into the distributed DeviceNet network protocol, establishing bi-directional data flow by forwarding local serial inputs to a DeviceNet master while pushing output commands back down to the controller. The interface supports both peer-to-peer explicit messaging for exchanging data files or program parameters across nodes, and remote programming access, which allows engineers to upload, download, and monitor ladder logic via RSLogix 500 without a direct cable hookup. Furthermore, the hardware features integrated galvanic isolation between the DeviceNet port and local serial paths, providing robust noise isolation that protects vital data signals from industrial ground loops and electromagnetic interference.

Data informations

l DeviceNet Input Voltage Range: 11 to 25 VDC

l Typical Current Consumption: 200 mA typical at 24 VDC

l Maximum Inrush Current: 400 mA maximum

l Internal Isolation Voltage: 500 VDC for 1 minute

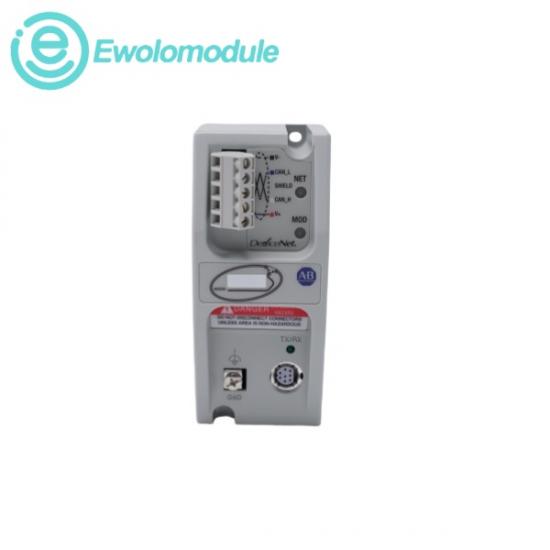

l Port 1 (Network Port): 1 DeviceNet open-style 5-pin pluggable terminal connector

l Port 2 (Local Port): 1 RS-232 serial interface (8-pin female Mini-DIN socket)

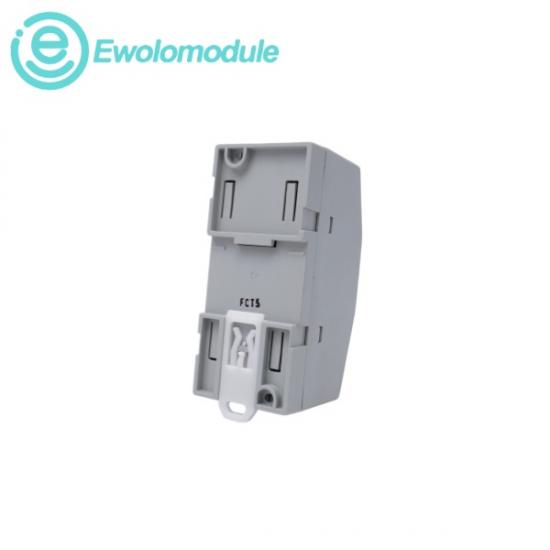

l Mounting & Temperature: DIN-rail or screw-mounted; operates from 0°C to +60°C, stores from -40°C to +85°C

l Operating Range: Temperature of 0°C to +60°C and 5% to 95% non-condensing humidity

More models with different options

The advantage brands and series of our company

FAQ➤frequently asked questions

Q1. What is your MOQ?

We could provide you very small MOQ for each item.

Q2. What about your shipping package?

Most of our products is ship with original factory new package, we will cover our our professional foam protective packaging to keep worldwide shipping no damaged.

Q3. Can you tell me the transportation mode of delivery?

We use DHL,FEDEX,TNT,UPS,EMS to delivery goods. If you have the shipping account, pls contact us directly and we will ship as your requirement.

Q4. How is the quality of your products? How long is the warranty period?

We guarantee that the products provided are original products of , and the warranty period of all products is 12 months
