Operating Voltage Range:

5.0V DC to 15.0V DC

Operating Temperature:

0℃ to 60℃

Logic Current Consumption:

80mA from +15V DC circuit

Storage Temperature:

-40℃ to 85℃

Backplane Current Capacity:

5.0A  maximum from +5V DC circuit

Relative Humidity Range:

5% to 95% (Non-condensing)

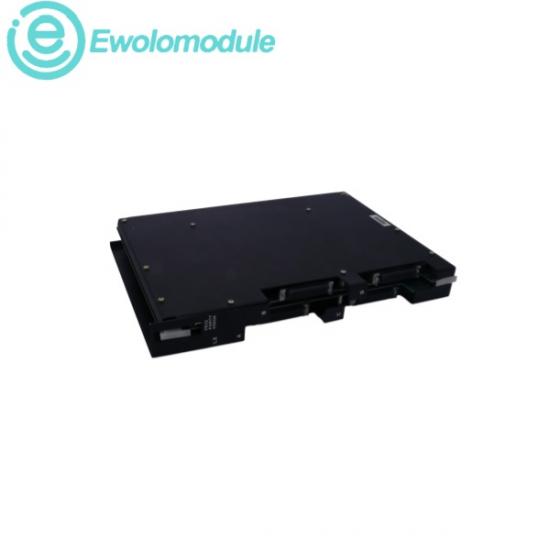

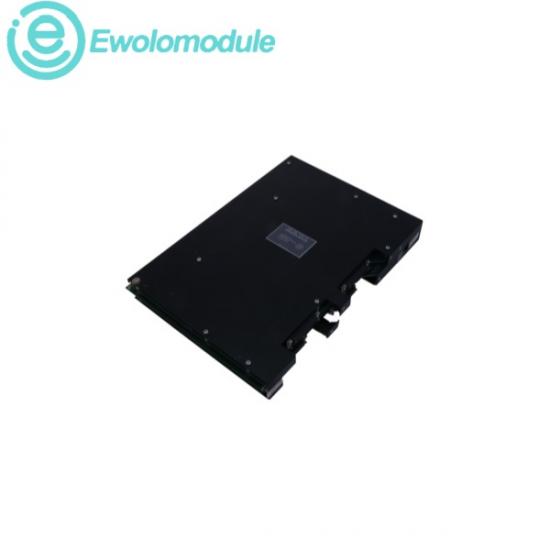

The Allen-Bradley 1775-LX is a legacy Expansion Module designed to scale up the processing footprint of the PLC-3 programmable controller family. It serves as a dedicated hardware bridge that allows a primary PLC-3 processor to interface transparently with up to four local processor/extension chassis without requiring additional I/O wiring or modifications to the user program. Occupying a single slot in the PLC-3 chassis, the module draws its operating voltages directly from the system backplane. Its essential role within the PLC-3 Expansion System is to extend the available slot capacity, handle cross-chassis control signaling, and sustain high-speed data integrity across expanded automation networks.
