Chassis Slot Requirement:

1 Single Slot

Environmental Operating Temp:

0℃ to 40℃

Total I/O Capacity:

Up to 2,048 Inputs and 2,048 Outputs per scanner

Scanning Ports:

4 Dedicated I/O Communication Channels

Backplane Input Voltages:

+5.0V DC and ±15.0V DC circuits

Relative Humidity Range:

5% to 80% (Non-condensing)

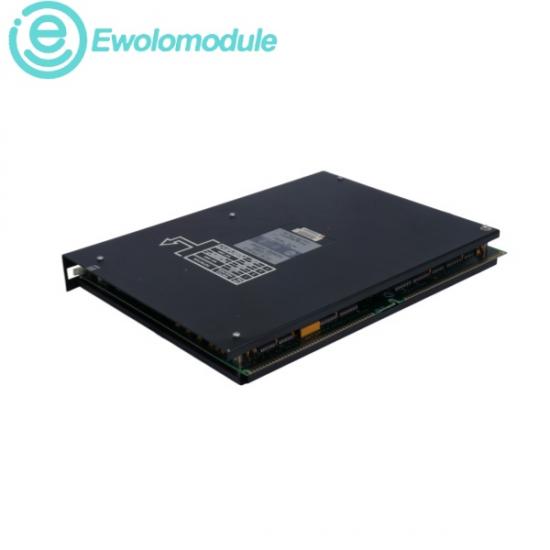

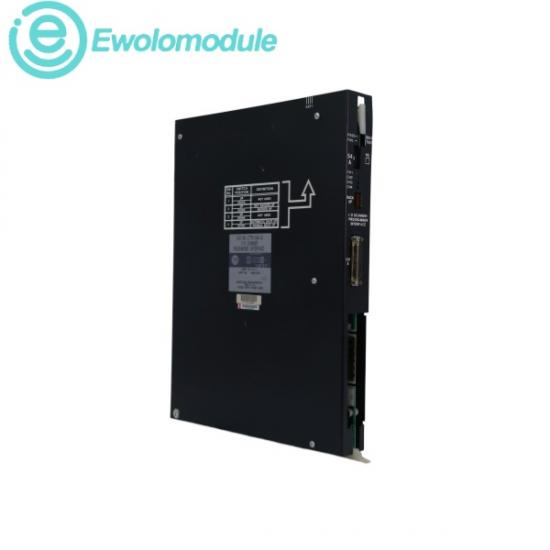

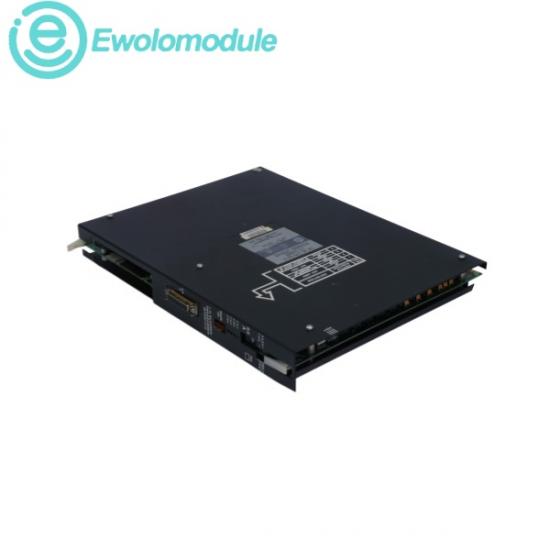

The Allen-Bradley 1775-S4A is a legacy I/O Scanner Programmer Interface Module developed for the PLC-3 control system platform. Occupying a single chassis slot, this high-performance module serves as a dedicated communication gateway between the core PLC-3 processor and distributed plant-floor devices. It features four independent I/O scanning channels that can simultaneously manage data from thousands of inputs and outputs distributed across remote 1771 I/O chassis. Additionally, the module integrates a dedicated RS-232-C communication channel (Channel 5) to directly host an industrial programming terminal, allowing engineers to perform online ladder logic modifications, configure I/O prioritization tables, and run active runtime diagnostic routines.
