Backplane Supply Voltage:

5.0V DC

Nominal I/O Scan Time:

5.5 to 6.5 ms per channel

Logic Current Consumption:

2.7A at 5V DC

Maximum I/O Cable Distance:

10,000 feet (at 57.6 kBaud)

Serial Auxiliary Port:

1 x RS-232-C Port

Environmental Operating Temp:

0℃ to 60℃

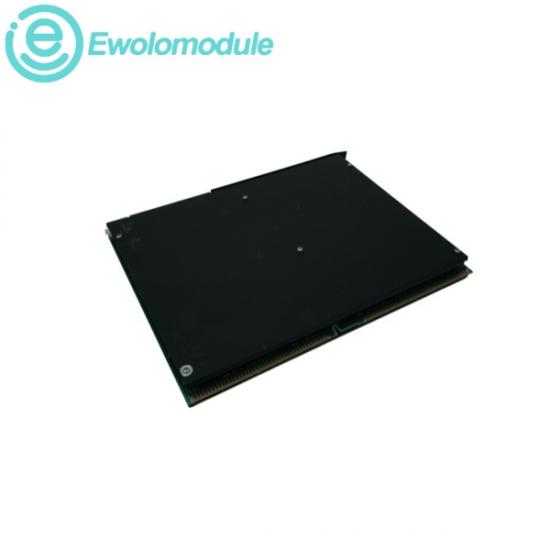

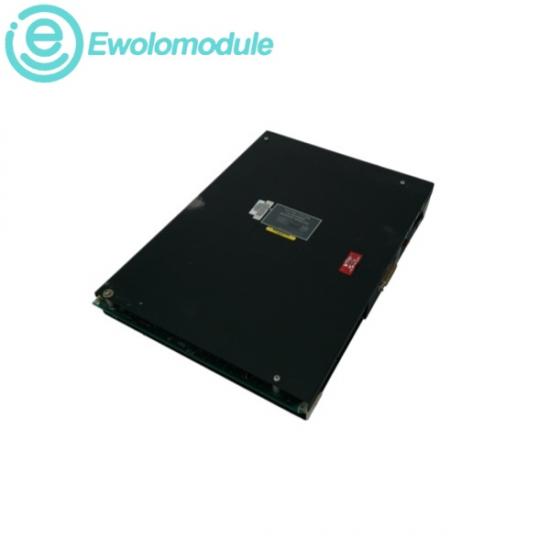

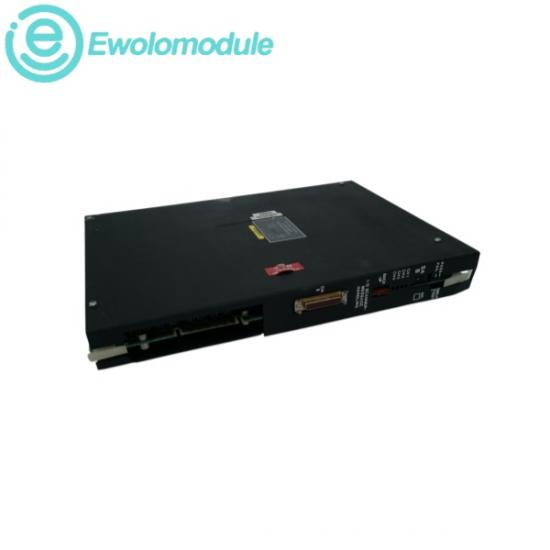

The Allen-Bradley 1775-S4B is a legacy high-performance I/O Scanner module engineered specifically for the PLC-3 control platform. Occupying a single slot within the processor chassis, its primary role is to manage extensive data transactions across thousands of remote plant-floor inputs and outputs. Unlike its sister module (the 1775-S4A which acts as a programming interface), the 1775-S4B is uniquely optimized for message-handling routines and high-speed background processing. It manages up to four independent I/O communication channels simultaneously alongside a dedicated serial RS-232-C channel. This configuration allows it to streamline automated manufacturing architectures, run priority-based device diagnostics, and coordinate heavy peer-to-peer messaging without taxing the primary CPU scan cycle.
