Backplane Power:

5V DC

Power Loss:

30W

Auxiliary Power:

±15V DC

Channels:

4 Active Channels

Current Draw:

20mA (±15V DC)

Operating Temp:

0 to 60℃

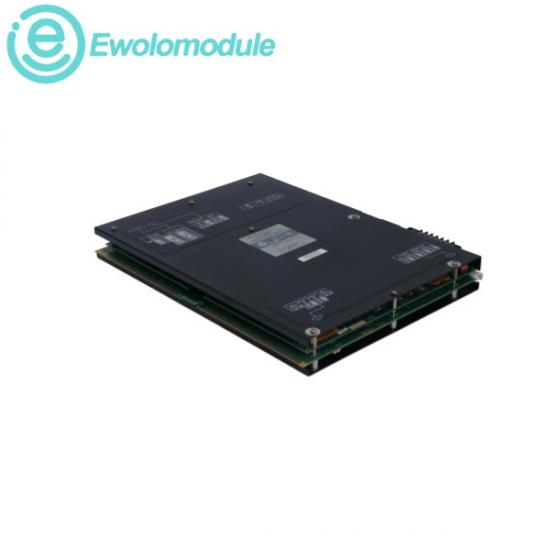

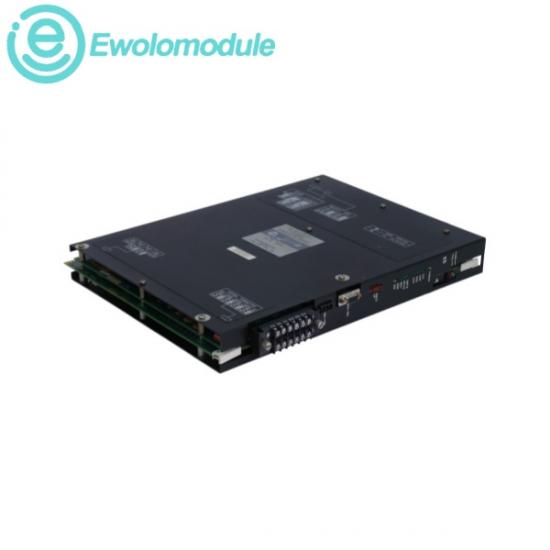

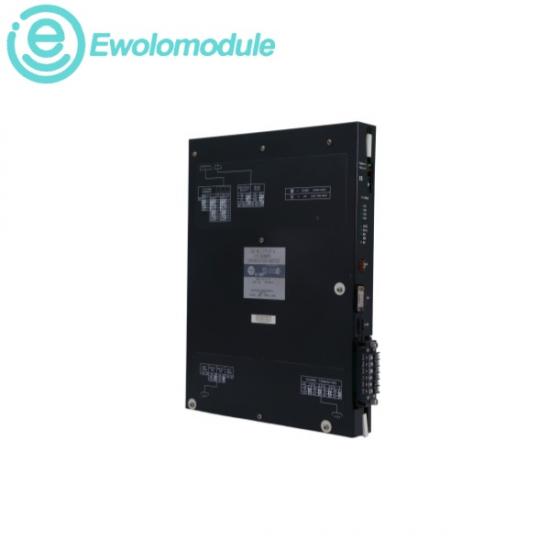

The Allen-Bradley 1775-S5 is a legacy high-performance network interface module designed for the PLC-3 control platform. It serves a dual architectural purpose by acting as both a localized remote I/O scanner and a specialized communication bridge. Its primary function within the system is to directly link a primary PLC-3 or PLC-3/10 controller to a high-speed Data Highway Plus (DH+) peer communication network. Occupying a single backplane slot, the module manages up to four standalone communication channels simultaneously, which allows the central processor to scan up to 16 remote I/O chassis per channel without reducing core processing cycle speeds. It features integrated front-panel LED indicators to deliver direct network diagnostics and physical thumbwheel switches to quickly assign its unique station node addresses.
