Description

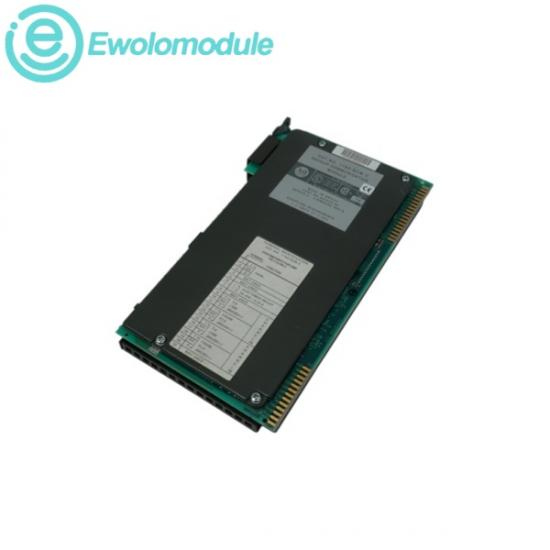

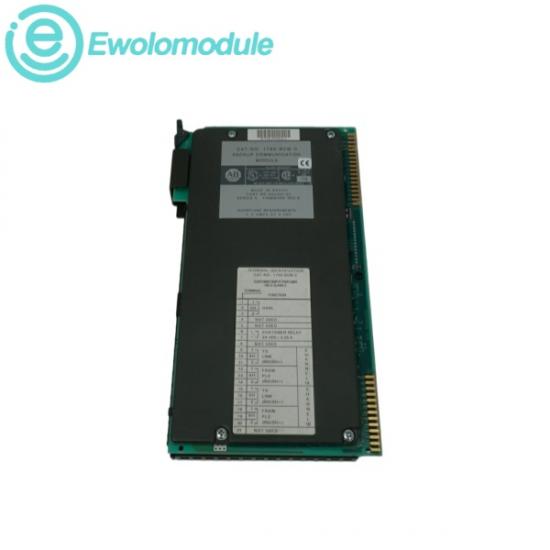

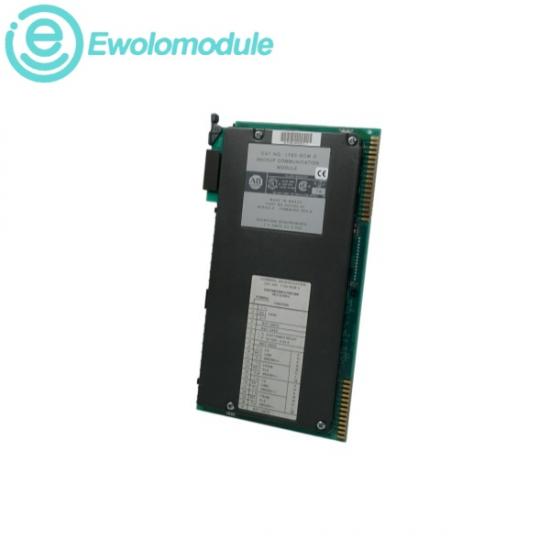

The Allen-Bradley 1785-BCM is a legacy Backup Communication Module designed specifically to establish high-availability, fault-tolerant architectures within the PLC-5 programmable controller platform. Occupying a single slot inside a standard 1771 I/O chassis alongside a primary PLC-5 processor, this module functions as the core coordination bridge for an Allen-Bradley Hot Backup System. It works in identical pairs (one in the primary chassis and one in the secondary chassis) to continuously monitor the health, operational status, and memory states of the running controller. In the event of a primary processor fault, power loss, or network breakdown, the 1785-BCM manages a seamless, high-speed switchover to the backup chassis in milliseconds, ensuring uninterrupted plant operations, safeguarding real-time process data, and preventing costly manufacturing downtime.

Product info

(1) Core Functionality: PLC-5 Hot Backup System Communication and Switchover Module.

(2) Chassis Compatibility: Installs into any standard Allen-Bradley 1771 Universal I/O chassis slot.

(3) Physical Connectors: Equipped with dedicated communication ports on the front panel, including a 15-pin D-shell high-speed parallel link port and a 9-pin D-shell network configuration interface.

(4) Backplane Current Load: Consumes an operating current of approximately 1.2Amps maximum over a stable + 5.0V DC loop.

(5) Environmental Boundaries: Designed to operate in standard industrial ambient temperatures ranging from 0℃ to 60℃ under non-condensing relative humidity (5% to 95%).
