Description

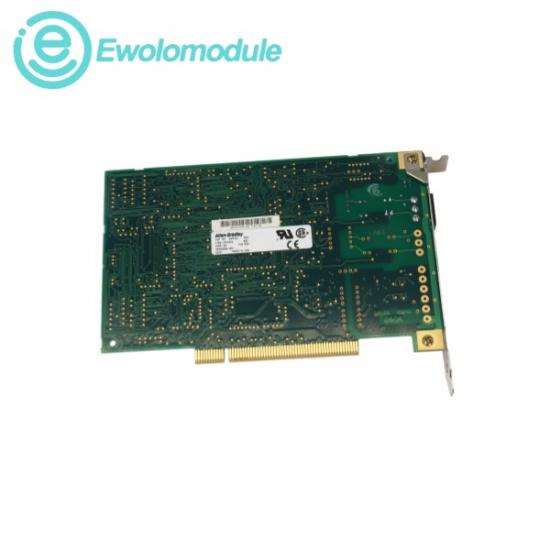

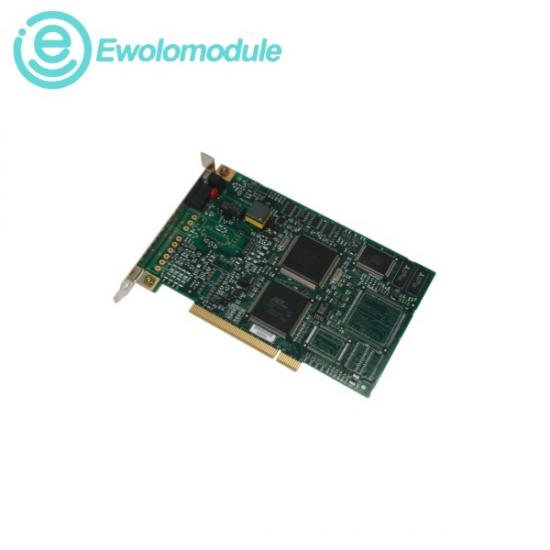

The Allen-Bradley 1784-PKTS is a legacy, high-performance network interface card designed to integrate personal computers or PC-based control systems directly with industrial automation networks. Unlike its sister cards (the 1784-PKTX and PKTXD, which support DH+ and DH-485 protocols), the 1784-PKTS variant is a specialized, single-channel card purpose-built to act as a Remote I/O (RIO) Scanner interface. It features a Universal PCI bus design that allows it to install seamlessly into standard computer expansion slots. Equipped with an onboard microprocessor, it autonomously handles protocol execution, timing, and data transfer without lagging the host PC's primary CPU. This card is a foundational component for running soft-control or embedded-control engines, enabling the computer host to scan, control, and collect data from extensive lines of remote 1771 or 1794 I/O chassis across the factory floor.

Product info

(1) Computer Bus Requirement: Standard 32-bit Universal PCI slot, compatible with both 3.3V and 5V motherboard signaling.

(2) Slot Fitment Versatility: Can be inserted into standard 64-bit PCI slots.

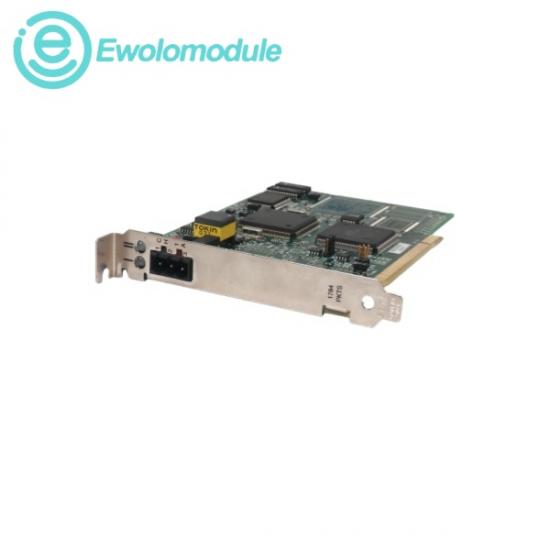

(3) Physical Connectors: Employs a 3-pin Phoenix open-style terminal block connector directly on the card bracket.

(4) Backplane Current Load: Consumes an operating current of approximately 800mA maximum over a stable + 5.0V DC loop.

(5) Operating System Support: Symmetrical support for 32-bit legacy operating systems including Windows NT, Windows 2000, and Windows XP (Not supported on 64-bit Windows platforms).
