Description

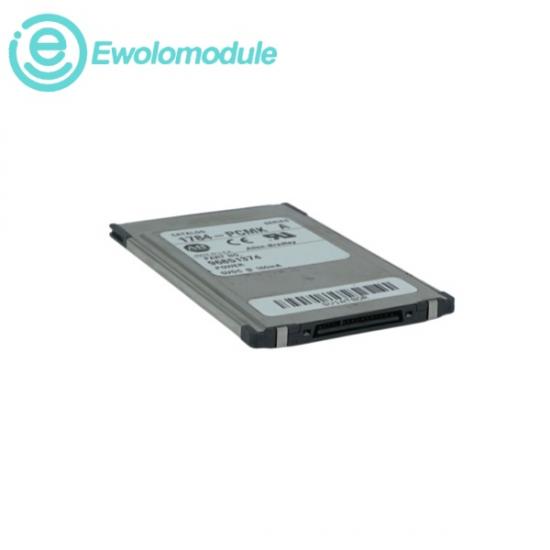

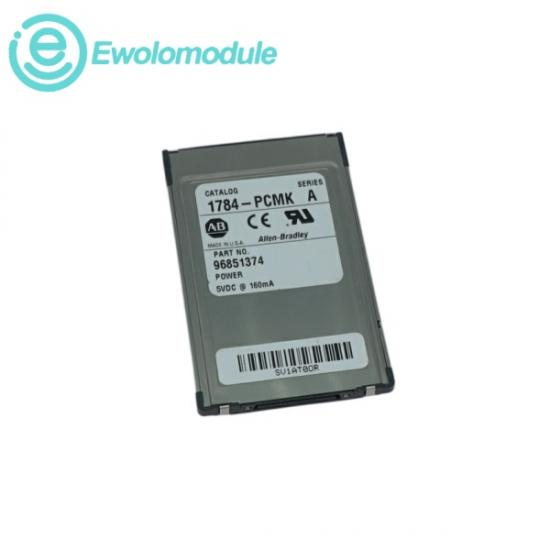

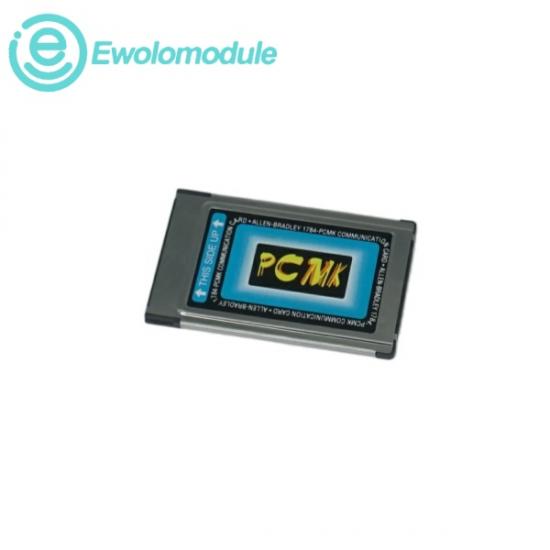

The Allen-Bradley 1784-PCMK is a legacy, pocket-sized PCMCIA communication interface card engineered to turn commercial laptop and portable notebook computers into industrial programming terminals. It is designed to slide directly into a standard Type II PCMCIA (Personal Computer Memory Card International Association) slot. The card functions as an intelligent network interface that allows field technicians and automation engineers to connect their laptops directly to Allen-Bradley industrial control networks on the plant floor. It features a high-density, proprietary physical port on its outer edge that attaches to specialized breakout cables. This architecture enables portable computers to perform high-speed ladder logic programming, on-site device configuration, and real-time troubleshooting diagnostics across Data Highway Plus (DH+), DH-485, and Remote I/O (RIO) network nodes without requiring bulky desktop-bound interface hardware.

Product info

(1) Laptop Hardware Interface: Formed as a 16-bit Type II PCMCIA card, compatible with standard PC Card slots on legacy laptops.

(2) Supported Network Cables: Requires specialized breakout cables to connect to networks, such as the 1784-PCM5 (for DH+/RIO) or 1784-PCM6 (for DH-485).

(3) Current Consumption Rating: Consumes a maximum current load of approximately 150 mA to 200mA  over a stable + 5.0V DC line.

(4) Operating System Boundaries: Compatible with legacy 16-bit and 32-bit operating systems, such as Windows 95, 98, NT, 2000, and Windows XP.
