Description

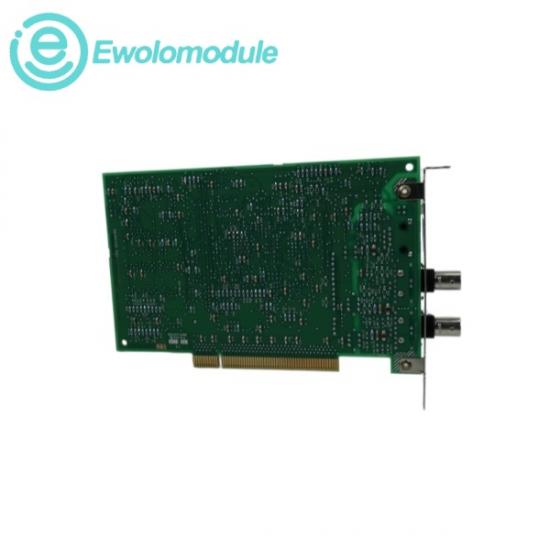

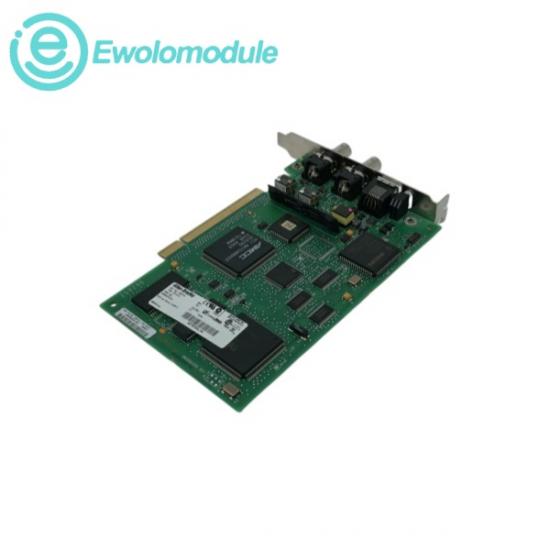

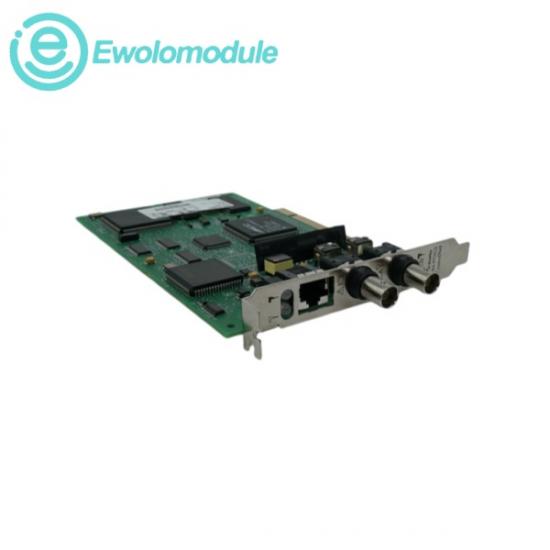

The Allen-Bradley 1784-PCIS is a legacy, high-performance ControlNet Communication Interface Card designed to allow industrial and desktop computers to communicate directly with ControlNet networks. Operating strictly as a "messaging-only" card, it enables standard PC platforms to perform network configuration, continuous device monitoring, and explicit peer-to-peer data transfers. This hardware uses a Universal PCI bus layout, meaning it fits into standard computer expansion slots and autonomously handles network protocol processing to prevent bogged-down performance on the host computer's CPU. On its exterior mounting bracket, it provides dual BNC connections to accommodate redundant media, ensuring stable connection nodes for Human-Machine Interfaces (HMI), Supervisory Control and Data Acquisition (SCADA) stations, and engineering programming environments.

Product info

(1) Motherboard Connection: Standard 32-bit Universal PCI open-bus expansion slot, compatible with both 3.3V and 5V signaling lanes.

(2) Network Media Capacity: Fully supports Redundant Media topologies to maintain communication if one cable line fails.

(3) Internal Voltage Source: Draws its power directly from the computer motherboard's PCI backplane rail.

(4) Backplane Current Load: Consumes up to 1.2Amps maximum at + 5.0V DC.

(5) Signaling Displays: Equipped with integrated front bracket LEDs displaying Channel A, Channel B, and overall card system health.
