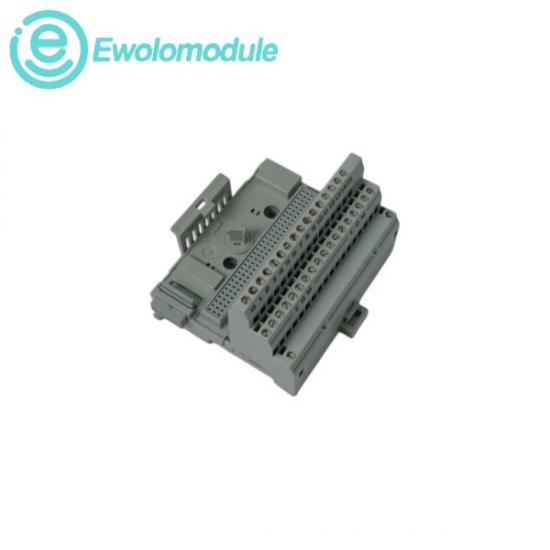

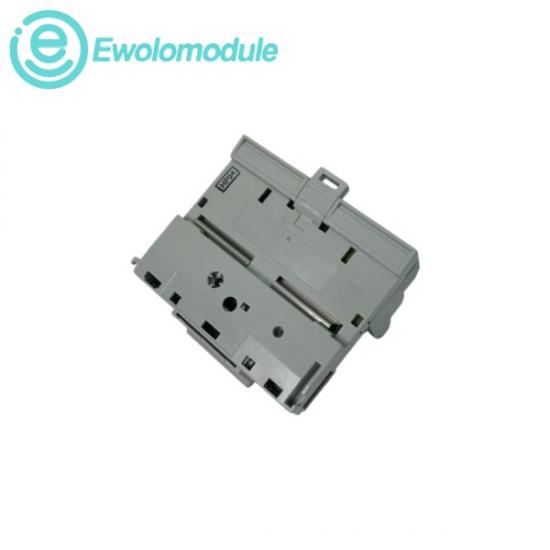

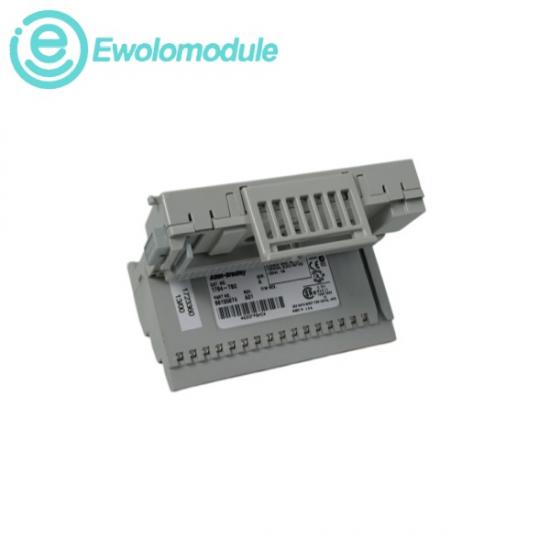

The 1794-TB2 is an industrial-grade distributed automation infrastructure component developed by Allen-Bradley brand. It is designed specifically to serve as a modular terminal base unit within the popular FLEX I/O platform. The primary purpose of this hardware component is to provide a unified physical mounting and backplane routing mechanism where digital, analog, or process-specific I/O modules can securely snap into position. It establishes electrical connections between the input/output modules and the main FLEX communication adapter via an integrated internal FlexBus backplane channel.

Total Configuration Capacity: 16 physical I/O terminal points, 2 common terminals, and 2 power terminals

Maximum Operating Voltage: 132V AC / 132V DC continuous rating

Maximum Current Capacity per Channel: 10.0 Amps total maximum current capacity allowed through the terminal base unit

FlexBus Backplane Rating: 5V DC power and digital logic routing across adjacent slots

Terminal Screw Torque: Recommended installation torque of 0.56…0.79 N·m

Operating Ambient Temperature: 0…55 °C (32…131 °F)
