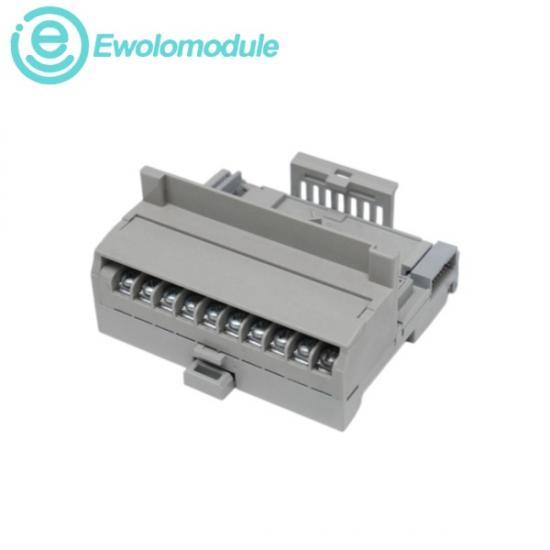

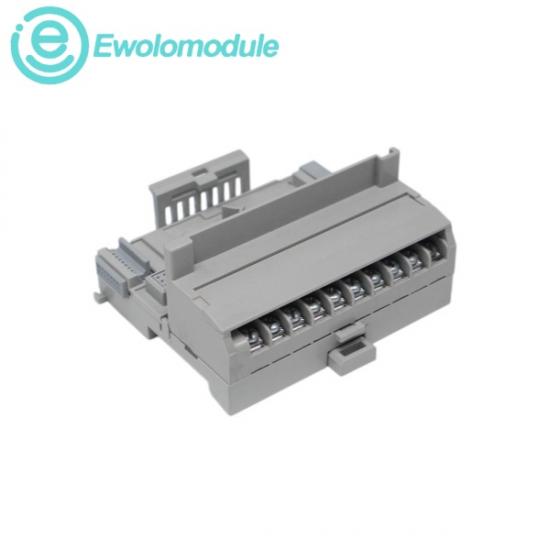

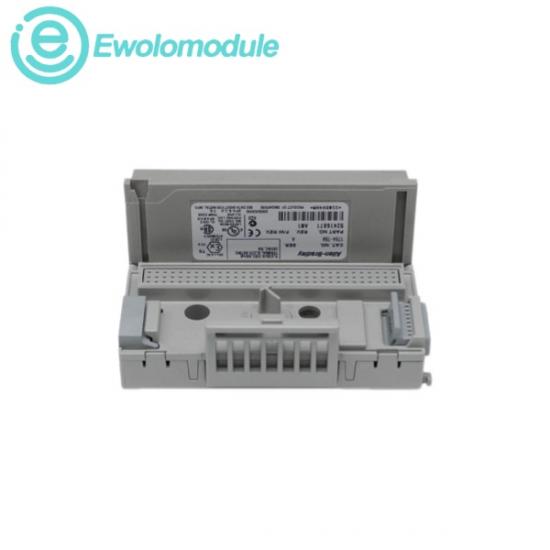

The 1794-TBN is an industrial-grade distributed automation infrastructure component developed by Allen-Bradley brand. Designed as a foundational component for the globally deployed FLEX I/O platform, this device functions as a specialized terminal base unit. Its primary purpose is to provide the underlying physical mounting, mechanical locking, and digital/analog signal backplane routing via an integrated internal FlexBus channel. This allows any standard active Bulletin 1794 operational module to snap directly into place and link with the node's main communication adapter. The defining characteristic of the 1794-TBN is its structural barrier-strip (NEMA style) terminal construction, which features 2 rows of terminal points using screw terminals separated by raised insulation barriers. This open-faced layout makes it highly suited for heavy industrial environments, offering high protection against accidental short circuits from stray wire strands and allowing for straightforward ring-lug or spade-lug wiring terminations.

Maximum Operating Voltage: 132V AC / 132V DC continuous rating

Maximum Current Capacity: 10.0 Amps total maximum current carrying capacity allowed through the internal power/common buses of the unit

FlexBus Backplane Rating: 5V DC power and digital logic routing across adjacent slots

Terminal Screw Torque: Recommended installation torque of 0.56…0.79 N·m

Operating Ambient Temperature: 0…55 °C (32…131 °F)
