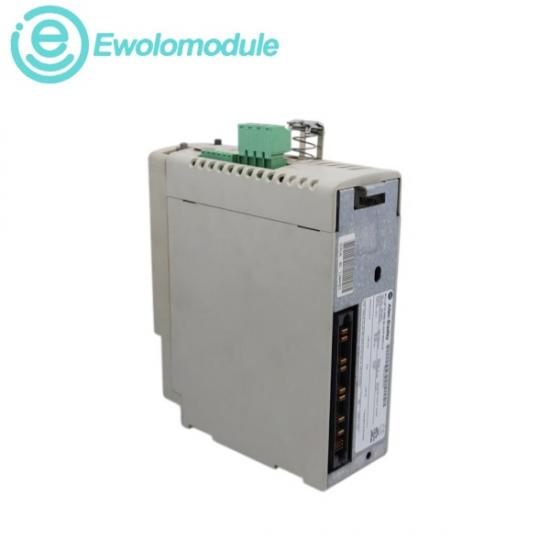

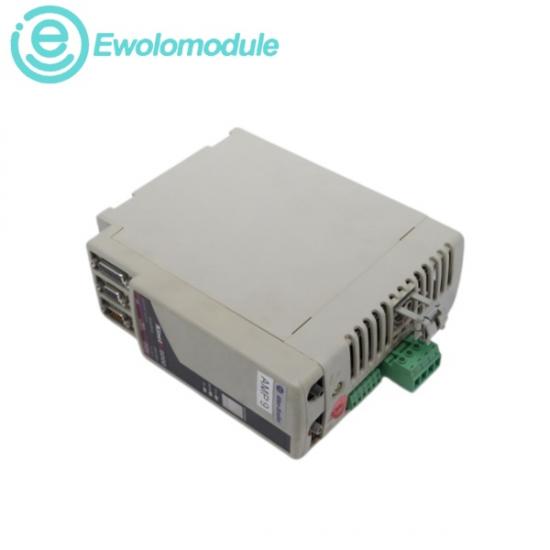

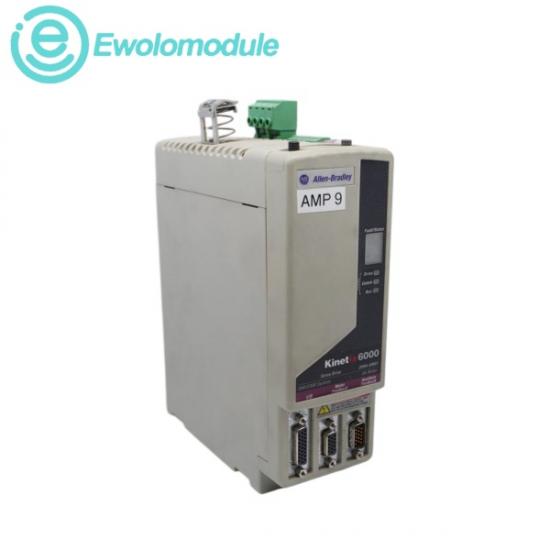

The 2094-AM01 is a high-performance digital multi-axis servo drive component engineered by Allen-Bradley brand. Functioning as a dedicated Axis Module (AM) within the Kinetix 6000 platform, this unit provides precise speed, torque, and position control for modern industrial brushless servo motors. Rather than utilizing a standalone design with individual line filters and rectifiers, the module operates within a shared-bus multi-axis system. It hangs directly from a specialized Bulletin 2094 Power Rail, drawing its internal DC bus power and control-side voltage from a primary leader module known as the Integrated Axis Module (IAM). By consolidating multiple inverter channels onto a unified power rail, the 2094-AM01 minimizes control cabinet space requirements, reduces structural wiring complexity, and drives down total system installation costs. The drive communicates over a high-speed, synchronized network interface (typically SERCOS or CIP motion based on the selected control module), allowing central Logix controllers to coordinate complex, multi-axis motion paths.

Peak Output Current (RMS): 12.0 Amps

Peak Output Current (0-to-Peak): 17.0 Amps

Nominal Continuous Power Output: 1.9 kW (2.5 Hp)

Pulse Width Modulation (PWM) Frequency: 8 kHz

Velocity Loop Bandwidth: 500 Hz

Current Loop Bandwidth: 1300 Hz

Continuous Output Current (RMS): 6.0 Amps

Continuous Output Current (0-to-Peak): 8.5 Amps

Efficiency Rating: 98% operating efficiency at rated output
