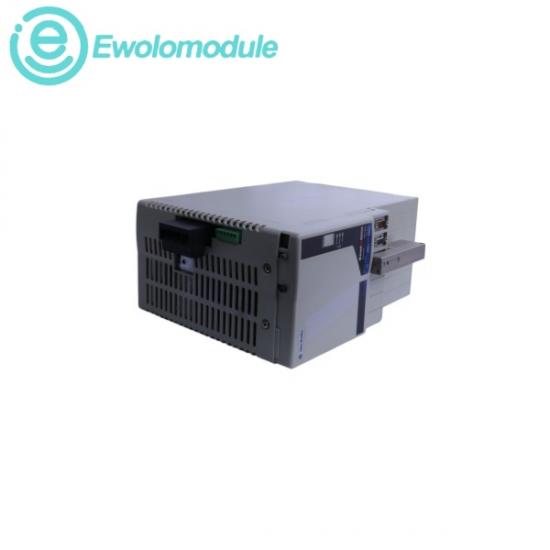

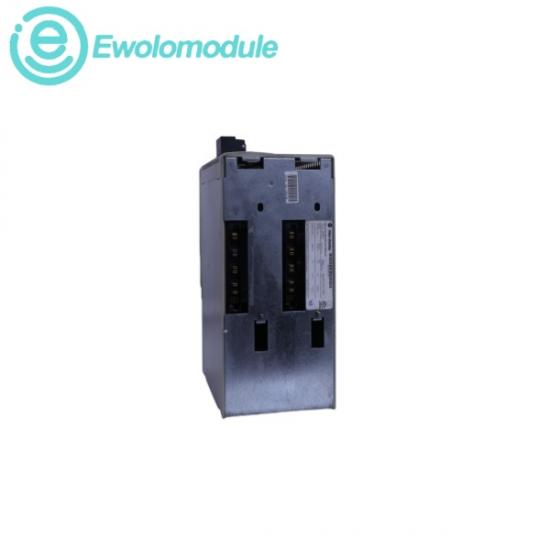

The 2094-BM05 is a heavy-duty, digital multi-axis servo drive inverter module engineered by Allen-Bradley brand. Functioning as a high-capacity Axis Module (AM) within the Kinetix 6000 platform, this unit provides precise closed-loop speed, torque, and position control for dynamic brushless servo motors. Differing from low-power entries in the series, the 2094-BM05 is a double-wide module, meaning its physical enclosure takes up two adjacent card slots on a shared Bulletin 2094 Power Rail to accommodate its enhanced power electronics and internal thermal heat-sinks. Operating within a shared-infrastructure system, the module completely eliminates the need for an individual AC line rectifier or dedicated input filter. Instead, it hooks up directly onto the power rail to draw its internal 650V DC bus voltage and control-side operational power from a central host, known as the Integrated Axis Module (IAM). The module utilizes advanced high-frequency pulse width modulation (PWM) to orchestrate smooth motor currents. It seamlessly interfaces with central Logix controllers via high-speed synchronized communication networks (such as SERCOS or EtherNet/IP CIP Motion).

Module Configuration: 400V/460V class multi-axis inverter module

Nominal Main DC Bus Input: 650V DC derived directly from the power rail shared-bus link

Main AC Voltage Source (System Line): 360V…480V AC RMS, Three-Phase

Continuous Inverter Output Current (RMS): 49.0 Amps

Continuous Inverter Output Current (0-to-Peak): 69.3 Amps

Nominal Continuous Power Output: 22.0 k

Pulse Width Modulation (PWM) Frequency: 4 kHz fixed carrier frequency

Electrical Efficiency Rating: 98% structural efficiency at fully rated continuous output
