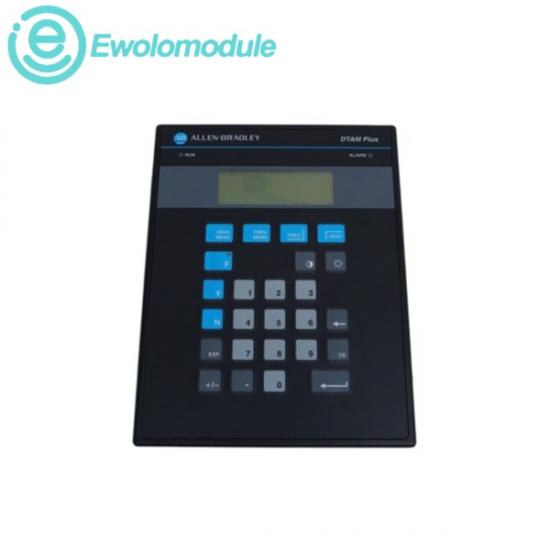

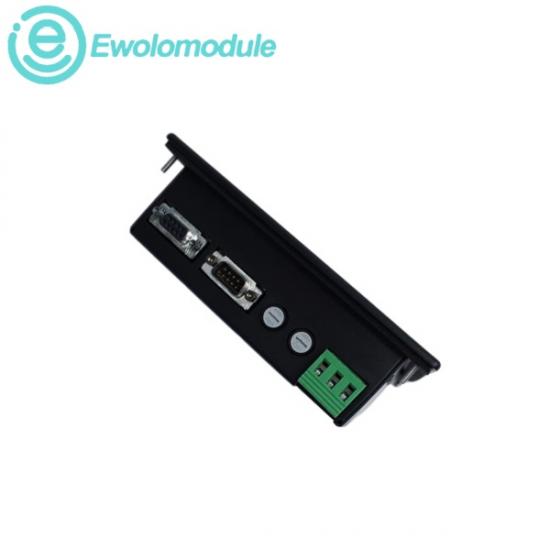

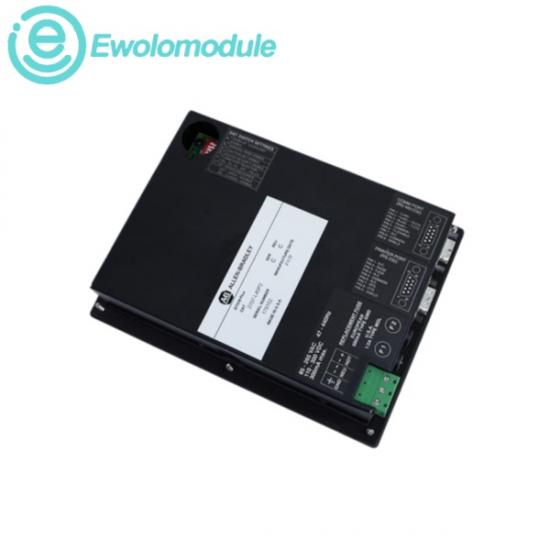

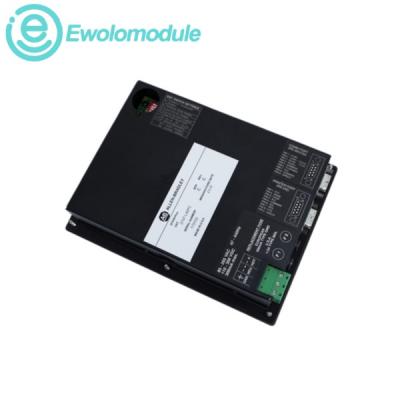

The 2707-L40P2 is a legacy industrial Human-Machine Interface (HMI) and data entry terminal developed by Allen-Bradley brand. Operating as a highly reliable information deployment terminal, this device functions as a compact, cost-effective interface designed to link directly to Allen-Bradley programmable logic controllers (such as the PLC-5, SLC 500, or MicroLogix families). It bypasses the requirement for complex, fully graphics-driven overhead computer screens by providing crisp, character-based messaging right on the plant floor. This makes it ideal for localized data monitoring, machine diagnostics, alarm management, and setpoint modification. The device is built with a rugged, tactile membrane keypad featuring 25 integrated function keys, allowing machine operators to quickly execute macro-commands or navigate customized software submenus. For visual feedback, the hardware embeds a high-contrast, backlit liquid crystal display (LCD) layout that outputs clear text strings across 4 lines. Housed in a durable enclosure intended for industrial panel-mounting, it utilizes a versatile communication board supporting multi-drop network links.

Screen Capacity: Text-based screen outputting 4 lines × 20 characters per line

Internal Application Memory: 40K bytes of non-volatile onboard memory to store configured user screens and data registers

AC Voltage Line: 85…265V AC operating at a wide frequency of 47…440 Hz

DC Voltage Line: 110…300V DC

Maximum Current Draw: 150 mA maximum
