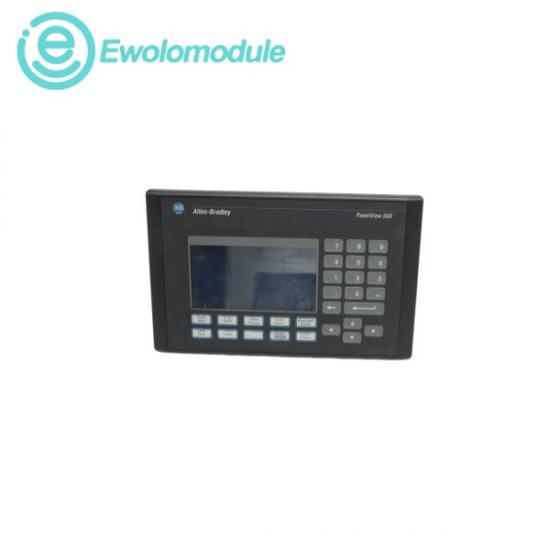

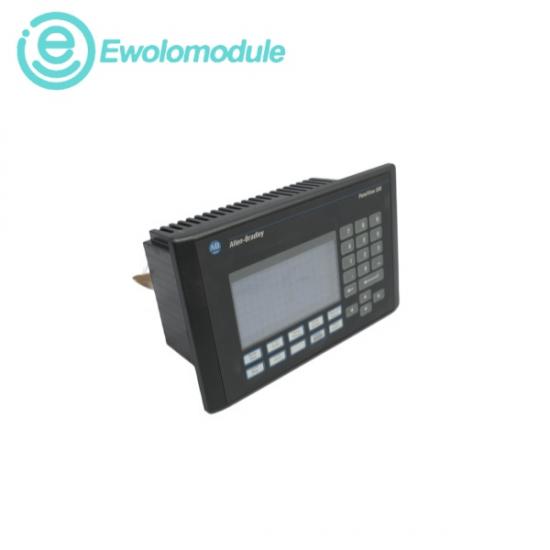

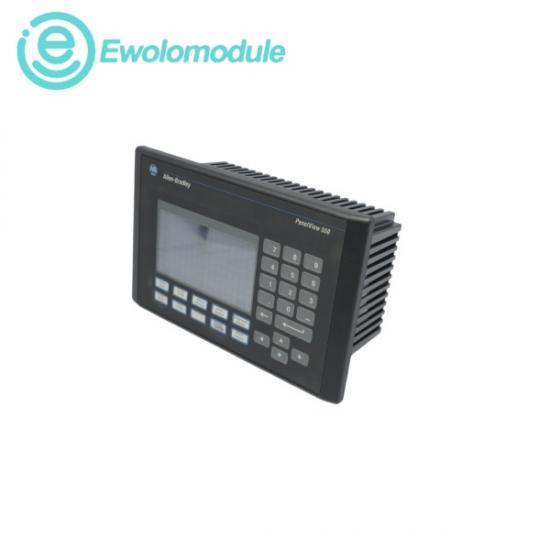

The 2711-B5A8X is a rugged, legacy industrial Human-Machine Interface (HMI) and operator terminal engineered by Allen-Bradley brand. Acting as a core monitoring and configuration dashboard on the factory floor, this machine-level interface allows plant operators to interface directly with programmable logic controllers. It translates complex internal data tables into dynamic, user-friendly text, status graphics, data entry prompts, and real-time fault tracking diagnostics. The "X" suffix at the end of the catalog number signifies that this is a no-logo/custom brand or open-label hardware revision, meaning it possesses the exact same internal circuitry, mounting, and firmware as the standard 2711-B5A8, but lacks the iconic Allen-Bradley brand print on the front bezel to accommodate OEM machine styling. Designed for exceptional versatility in high-vibration and tactile-heavy assembly lines, the dual-input framework of the 2711-B5A8X provides operators with two independent ways to navigate screens. Users can either press the software keys directly on the analog resistive touch matrix or use the 10 fixed, tactile membrane function keys arrayed along the borders. For physical data routing, the terminal is equipped with a dedicated DH-485 communication port designed for industrial multi-drop networking, alongside an independent RS-232 serial auxiliary port intended for local printer log output.

Display Screen: 5.5-inch blue monochrome gas plasma or LCD display with an integrated high-durability backlight

Display Resolution: 256 × 128 pixels active matrix display area

Nominal Operating Supply Voltage: 85…264V AC auto-ranging line input

Line Power Frequency Window: 47…63 Hz

Maximum Power Consumption: 45 VA (Volt-Amperes) maximum

Operating Temperature Threshold: 0…55 °C (32…131 °F)
