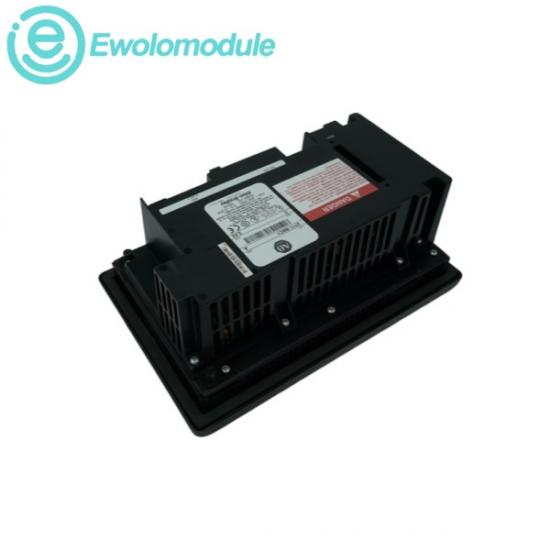

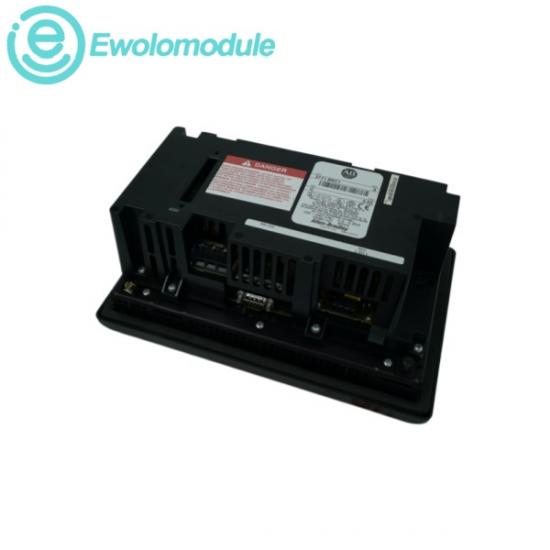

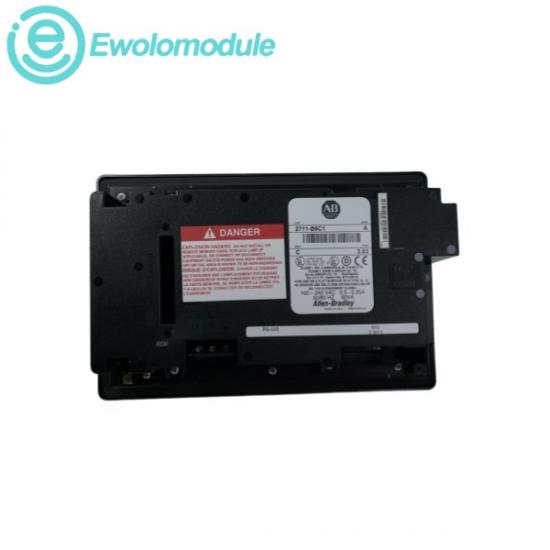

The 2711-B6C1 is a high-reliability, legacy industrial Human-Machine Interface (HMI) designed by Allen-Bradley brand. Operating as a compact control-level visualization solution, this module bridges the communication gap between shop-floor machinery and centralized controllers. The "B" in the 2711-B6C1 catalog prefix indicates a dual-input control setup, combining an analog resistive touchscreen with a physical domed membrane keypad on a single front bezel interface. The "6C" signifies a 5-inch class active-matrix color TFT display, enabling engineers to replace plain text interfaces with color-coded process animations and intuitive status graphics. Designed to excel in heavy-use or high-vibration assembly lines, the dual-input matrix gives operators physical flexibility; they can execute rapid commands on the 10 tactile function keys (F1…F10) or trigger actions right on the display screen. For remote communication routing, the 2711-B6C1 features an embedded Remote I/O (RIO) port for networking alongside an independent RS-232 serial printer interface designed to dump real-time error logs and data reports.

Screen Resolution: 320 × 234 pixels active matrix resolution

Operating Line Input Power: 85…264V AC universal power supply at a standard 50/60 Hz frequency

Maximum Power Consumption: 60 VA (Volt-Amperes) maximum continuous AC power draw

Primary Communications Node: 1 x built-in Remote I/O (RIO) interface port supporting legacy multi-drop processor networks
