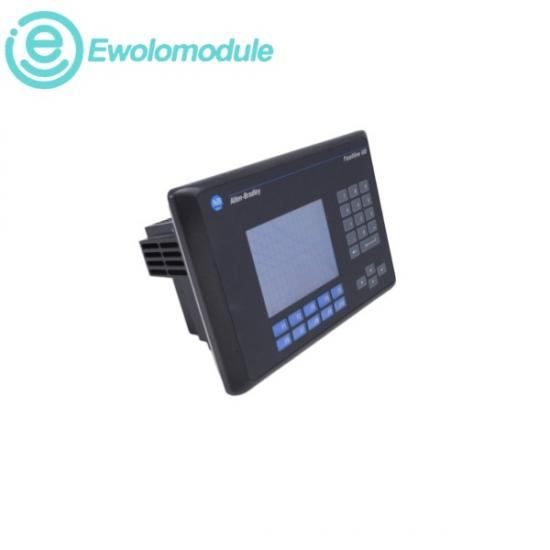

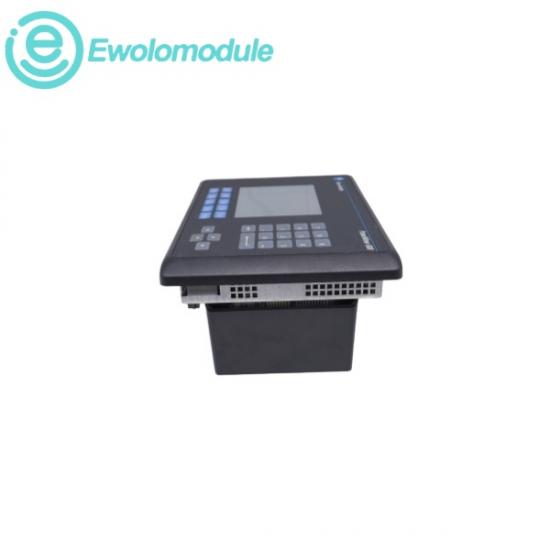

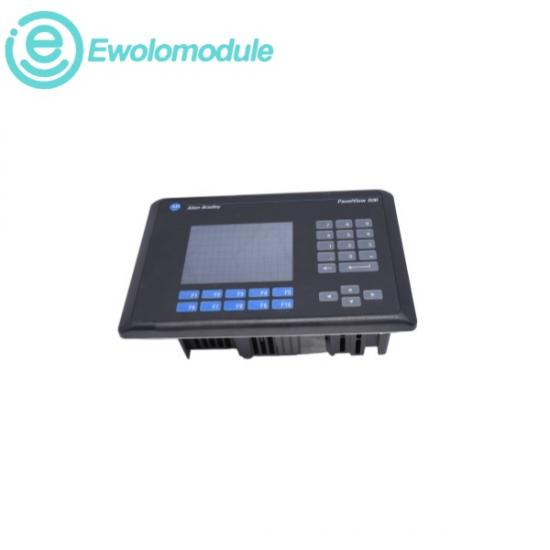

The 2711-B6C10 is a rugged, legacy industrial Human-Machine Interface (HMI) designed and built by Allen-Bradley brand. Acting as a centralized control dashboard on the plant floor, this terminal is engineered to link directly with programmable logic controllers. It converts raw digital data arrays into rich, color-coded visual animations, status indicators, and process indicators. The "B" in the 2711-B6C10 catalog code highlights its dual-input layout, embedding an analog resistive touchscreen and a physical domed membrane keypad onto a single front bezel. The "6C" indicates it features a 5-inch class Active Matrix TFT color display, bringing clear process visibility to localized operations.Designed to handle heavy-use or high-vibration manufacturing lines, the dual-input architecture gives operators high flexibility; they can trigger software buttons right on the display surface or execute rapid macro-commands using the 10 tactile function keys (F1…F10). For physical network communication, the 2711-B6C10 features a built-in DeviceNet communication port, which allows it to seamlessly join high-speed industrial device networks. It also includes an independent RS-232 serial printer interface designed to dump real-time error logs and physical audit data.

Screen Resolution: 320 × 234 pixels active matrix color resolution

Operating Line Input Power: 85…264V AC universal power supply at a standard 50/60 Hz frequency

Maximum Power Consumption: 60 VA (Volt-Amperes) maximum continuous AC power draw

Operating Temperature Threshold: 0…55 °C (32…131 °F)
