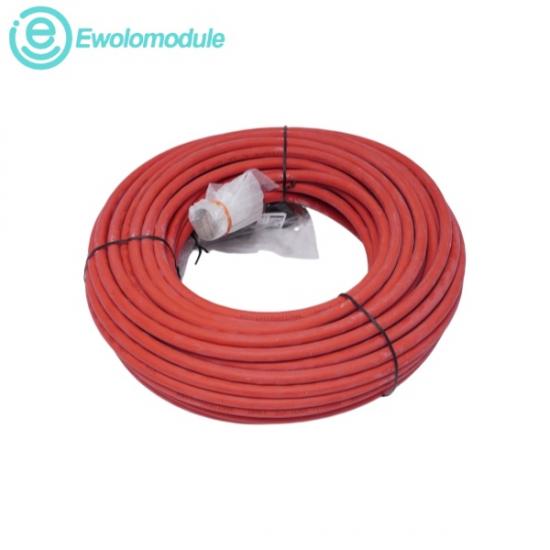

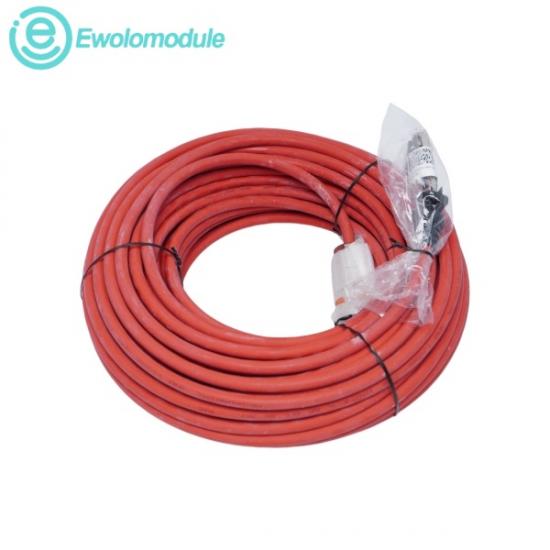

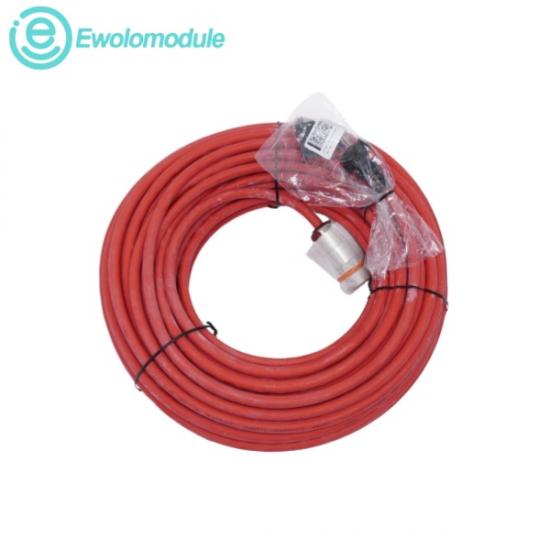

The ABB 3HAC031683-004 is an industrial-grade, heavy-duty 30-meter umbilical communication cable assembly designed to connect an ABB robot teach pendant directly to its central controller. Specifically engineered for the SxTPU3 / DSQC679 FlexPendant generation, this high-integrity cable handles dual-channel safety signals, real-time graphic data streams, and operator keystroke protocols over a single robust connection. The unit features internal high-grade twisted-pair shielding to suppress electromagnetic interference (EMI) on the factory floor, a rugged oil-resistant polyurethane jacket to withstand mechanical abrasion, and heavy-duty, quick-disconnect military-grade connectors that lock tightly to prevent signal dropping during active teaching operations.

n Physical Cable Length: 30 meters

n Nominal Operating Voltage Constraints: 24 VDC standard system logic supply

n Minimum Bend Radius: 10 × external cable diameter for dynamic tracking deployments

n Ambient Operating Temperature: +5°C to +45°C (+41°F to +113°F) continuous cabinet/floor operational tracking

n Ambient Storage Temperature Range: -25°C to +55°C

n Relative Environmental Humidity: Maximum 95% (Non-condensing environment state)

1.

Extended Work Cell Trajectory Teaching: Plugged straight into an ABB IRC5 controller panel. The massive 30-meter length allows an automation engineer to walk entirely around a large structural work cell, such as an external track layout or linear gantry system to manually jog a 6-axis robot head and safely calibrate complex path positions.

2.

Automotive Welding & Frame Assembly Lines: Deployed on large-scale automotive manufacturing floors to route data from the operator safely past adjacent high-current resistance welding guns without experiencing EMI packet loss.

3.

Aerospace Riveting & Heavy Machine Tending Cells: Maintained across expansive cleanrooms and machining bays where robots handle large carbon fiber panels, allowing the programmer to step close to the tool head during initial dry runs.

4.

High-Velocity Palletizing & Logistics Centers: Integrates handheld diagnostic controls inside extensive packaging and sorting lines, keeping operators at a safe distance outside the active safety fencing while monitoring system faults.
