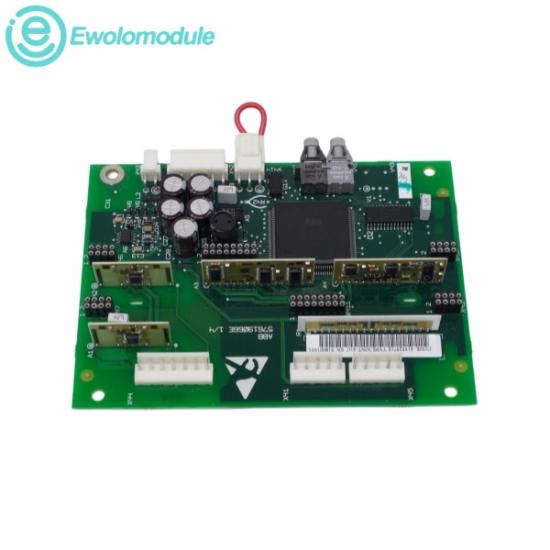

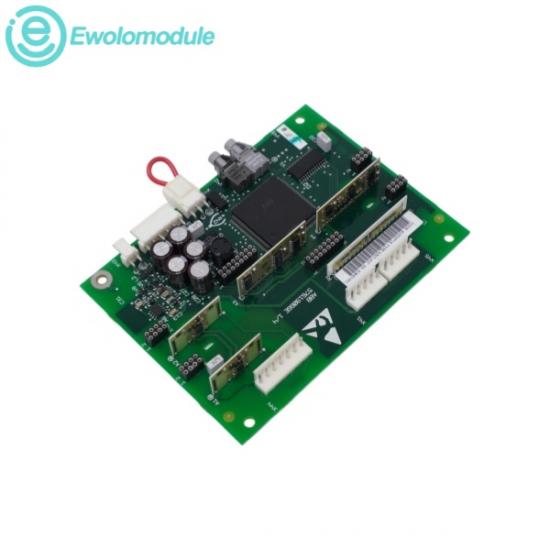

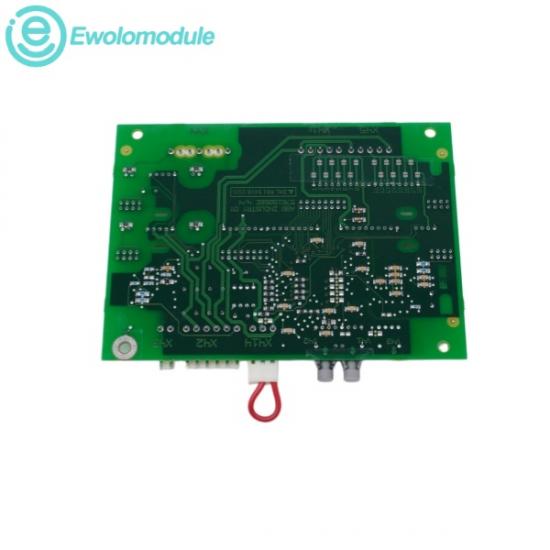

The ABB NINT-41C is a high-performance communication and main circuit interface board engineered to manage core signal orchestration within variable frequency drives. Operating as an essential interface link inside the drive's phase or converter modules, the card acts as a high-speed data highway that transmits and receives critical system control data. It processes real-time command strings from upper-level programmable logic controllers (PLCs) or system networks, translating them into precise gating inputs to regulate the drive's power switching circuits while providing continuous diagnostic feedback.

n Nominal System Input Voltage: 24 V DC standard logic control bus supply

n Data Transfer Network Speed: 10/100 Mbps adaptive communication

n Ambient Operating Temperature: 0°C to +55°C (+32°F to +131°F) continuous cabinet environment placement rating

n Supported Industrial Fieldbus Protocols: Integrated routing capabilities for EtherNet/IP, PROFINET, and DeviceNet frameworks

1.

Multi-Protocol VFD Network Integration: Mounted directly into an ACS600 drive subrack chassis. It links the individual phase modules over a synchronized RJ45 fiber optic or Ethernet loop, allowing a centralized main PLC to dynamically modulate motor speed curves and read immediate output fault diagnostics without network latency.

2.

Oil, Gas, & Petrochemical Refining Hubs: Regulates massive product transfer pumps, heavy refinery ventilation fans, and continuous gas compressor systems where advanced multi-protocol communication ensures automated operation and minimizes facility downtime.

3.

Traditional Power Utilities & Mining Equipment: Managed inside high-power common DC bus drive configurations to sync speed parameters and torque balances for heavy mining conveyors, automated material transport tracks, and boiler supply pumps.

4.

Pulp, Paper, & Water Treatment Facilities: Coordinates microsecond-level timing and speed controls across high-velocity paper mill rollers or large water distribution pumps, preventing material tearing or pressure surges.
