CONTROL NETWORK PROFILE

CALL +86 17359287459 EMAIL sales9@apterpower.com

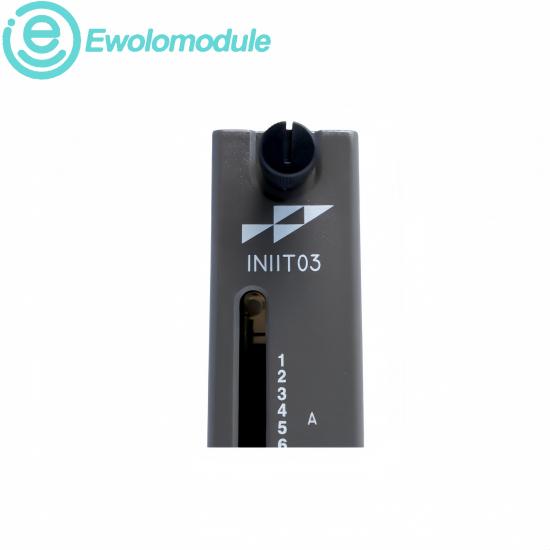

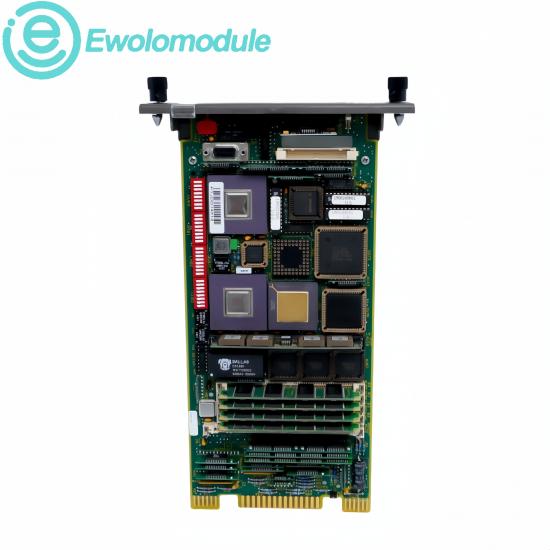

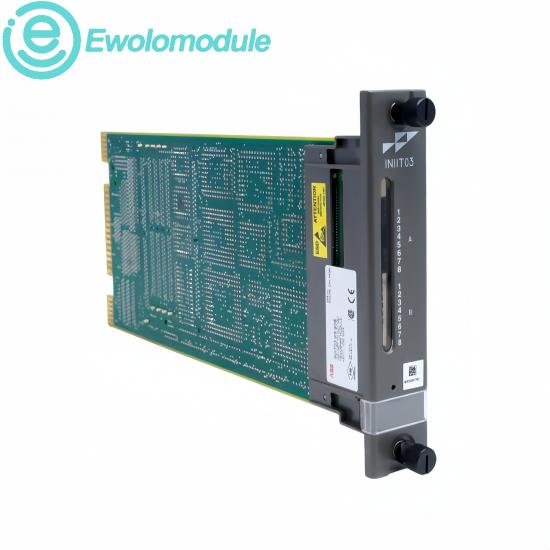

ABB BAILEY · INFI 90

ARTICLE NUMBER

INIIT03

OFFICIAL PRODUCT NAME

INFI-Net to INFI-Net Transfer Module

INFI-NET BRIDGE

REDUNDANT

CONTROLWAY

CONDITIONNew Original

WARRANTYOne year

AVAILABILITYIn stock

ABB BAILEY INFI 90 · CONTROL NETWORK TRANSFER HARDWARE

TECHNICAL & OPERATING GUIDE

CALL +86 17359287459 EMAIL sales9@apterpower.com

TECHNICAL SPECIFICATIONS

Transfer-module identification and network details

INFI 90 NETWORK HARDWARE

Manufacturer

ABB Bailey

Article number

INIIT03

Product type

Network transfer module

System family

INFI 90 / Symphony

Network role

INFI-Net bridge

Local interface

INIIL02 assembly

Companion modules

Two INNIS01 units

Redundancy

Primary / secondary pair

Supervision bus

Controlway

Termination distance

45.8 m maximum

Installation

INFI 90 module rack

Service role

Legacy DCS communication

OPERATING ENVIRONMENT

Install the transfer module in a documented INFI 90 cabinet with stable temperature, clean dry air and verified grounding. Preserve the assigned rack position, INNIS companions, termination path and redundancy wiring; isolate system power before replacement.

LOCATIONEngineered DCS cabinet

TEMPERATUREControlled industrial range

PROTECTIONClean dry air / grounded rack

RACK POSITION

PAIR MATCH

POWER ISOLATION

MONITORING & CONTROL

INIIT03 transfers network traffic between local INFI-Net segments and supports redundant operation. Commissioning should confirm module status, Controlway supervision, INNIS communication, primary-secondary coordination and stable transfer diagnostics.

MODULE STATUSVerify run state and LEDs

INFI-NET HEALTHConfirm segment communication

REDUNDANCYCheck primary / secondary roles

CONTROLWAYReview supervisory data path

VERIFY RACK → SEAT MODULE → SYNC PAIR → CHECK NETWORK

BRAND & APPLICATION OVERVIEW

BRAND CHARACTERISTICS

ABB Bailey INFI 90 hardware uses modular rack architecture, documented module identities and redundant network interfaces to support traceable system engineering, controlled replacement and long-term process-control service.

DOCUMENTED

REDUNDANT

NETWORK READY

APPLICATION FIELDS

Applied in power generation, oil and gas, chemical processing, pulp and paper and other continuous-process facilities operating ABB Bailey INFI 90 or Symphony control networks.

PROCESS CONTROL

POWER PLANTS

PLANT NETWORKS
