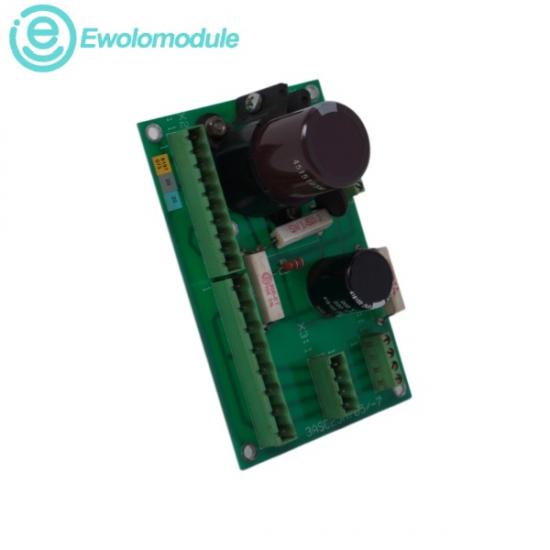

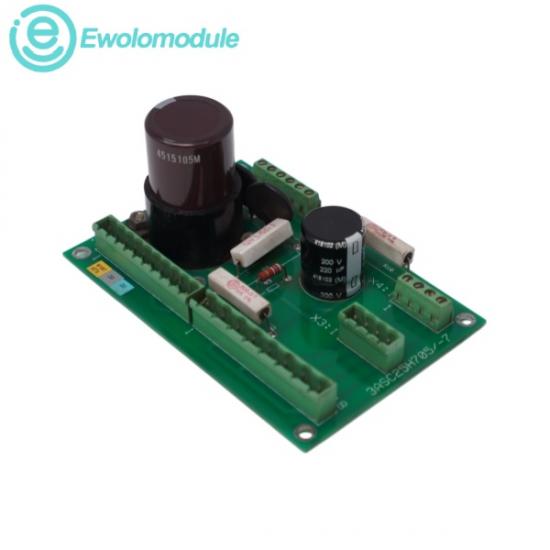

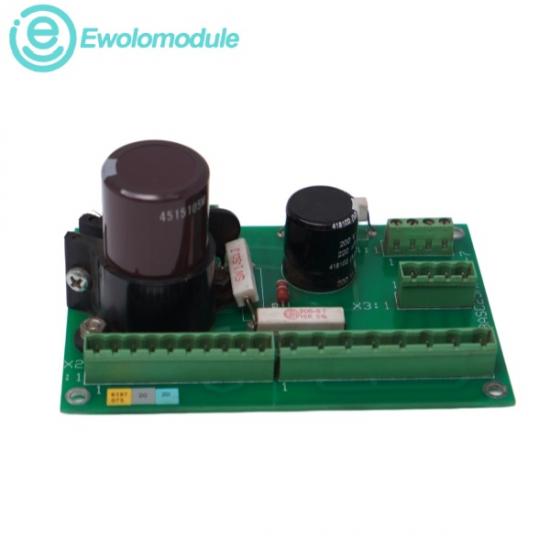

The ABB DASA110 3ASC25H705/7 is a multifunction intelligent processing board that operates simultaneously as a power supply regulator, motor control board, and signal preprocessor. It is responsible for handling localized arithmetic processing, converting DC input power into precise AC power for motor operations, and executing high-level vector and direct torque control algorithms. By incorporating micro-intelligent circuitry, this board captures physical field fluctuations and filters data registers locally to bypass transmission bottlenecks in demanding industrial networks.

l Operating Logic Current: 10 mA typical internal circuit current draw

l Logic Power Input: Typically DC 9V to 24V or nominal 24V DC configurations

l Operating Temperature Range: Highly resilient industrial deployment range from -25°C to +60°C

l Storage Temperature Limits: Built for extended downtime survivability from -40°C to +85°C

l Communication Interfaces: Integrates serial protocols including RS232, RS422, RS485, and specialized high-speed ModuleBus lines

Variable Frequency Drive Regulation:

Embedded inside ABB ACS drive panels to regulate power inversion, managing external motor acceleration, speed, and mechanical torque.

High-Precision Motion Synchronization:

Connects with physical field encoders to execute micro-level shaft tracking and millisecond-level position loops.

Redundant Power Architecture:

Installed in critical industrial power enclosures to preserve system logic continuity in harsh environments.

Analog Signal Ingestion:

Captures physical field parameters (such as thermal readings, pipeline pressures, and fluid flow metrics) and transforms them into digital registers for a central PLC.
