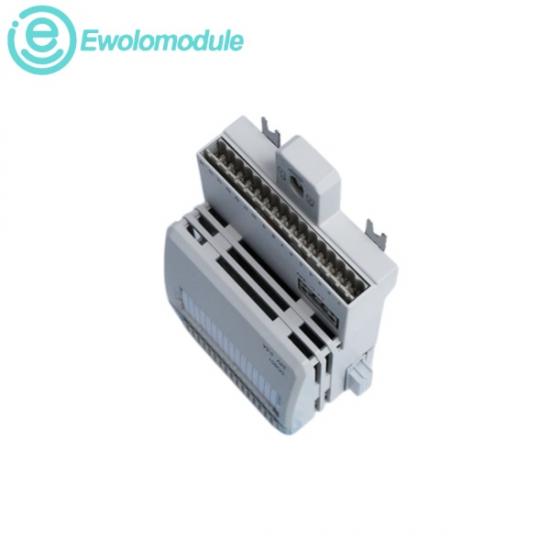

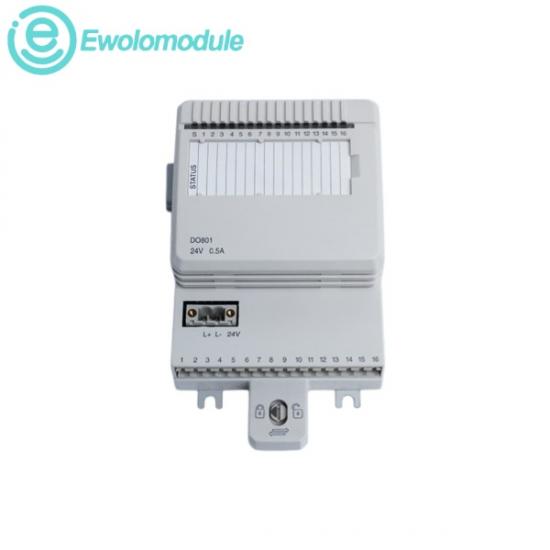

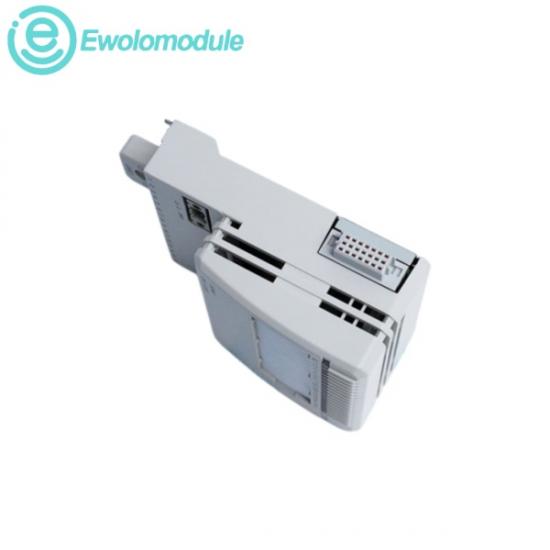

The ABB DO801 3BSE020510R1 is a 16-channel, 24 V d.c. digital output module. To ensure long-term physical hardware endurance within complex field configurations, all 16 channels are bundled into a single isolated group and engineered with embedded short-circuit, over-voltage, and over-temperature safety protections. Each individual path incorporates high-side drivers, inductive load suppression for handling actuators, an optical isolation barrier, and dedicated front-facing LEDs for fast troubleshooting and active status indication.

l Power Dissipation: Typ. 2.1 W

l Rated Voltage: 24 V d.c. nominal

l Output Load Resistance: Less than 0.4 Ω

l Continuous Current Output: Max 0.5 A per channel

l Channels: 16 digital outputs, configured into 1 isolated group

l Operating Temperature Range: 0°C to +55°C (32°F to 131°F) for normal horizontal setup; vertical mounting maxes at 40°C (104°F)

l Storage Temperature Limits: -40°C to +70°C (-40°F to 158°F)

l Relative Humidity: 5% to 95%, non-condensing

DCS Process Automation:

Serves as a localized link within the ABB System 800xA DCS architecture to actuate digital components based on core logic commands.

Solenoid and Valve Driving:

Controls the on/off switching positions of pneumatic and hydraulic field solenoids in oil, gas, and chemical refineries.

Motor Control Centers (MCC):

Routes discrete 24V triggers to industrial motor starters, contactors, and control relays.

Anunciator & Indicator Triggers:

Signals field sirens, alarm beacons, stack lights, and mimic panels across manufacturing shop floors.
