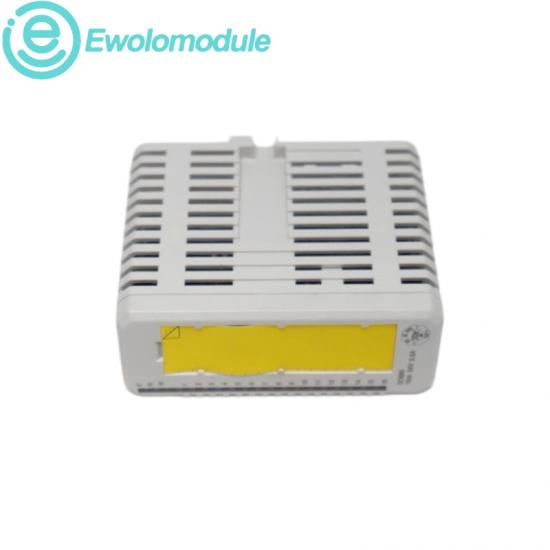

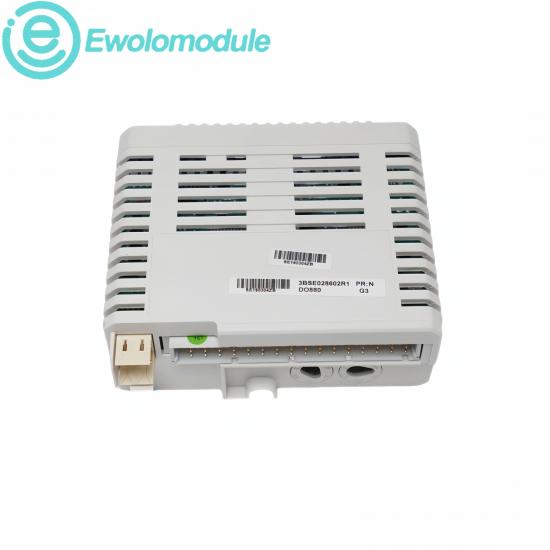

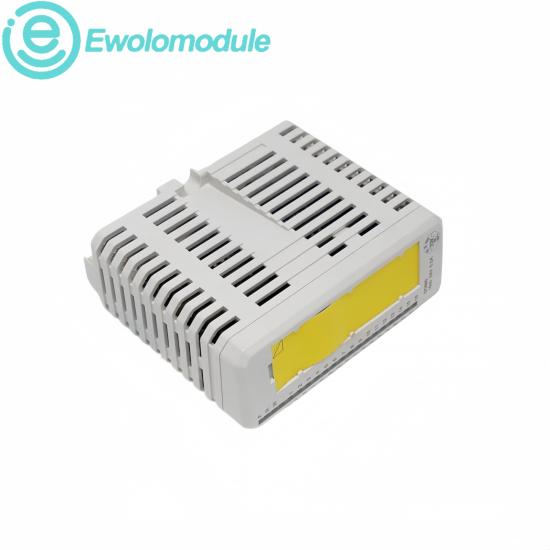

ABB · HIGH INTEGRITY DIGITAL OUTPUT

DO880 3BSE028602R1
High integrity digital output module

SIL3-capable 24 V DC output control with loop supervision, diagnostics and redundant operation in ABB S800 I/O systems.

OUTPUT CHANNELS

16 channels

OUTPUT RATING

24 V DC / 0.5 A

INTEGRITY

SIL3 capable

Related models

SPECIFICATIONS

Email : sales9@apterpower.com

ABB · HIGH INTEGRITY DIGITAL OUTPUT

Supervised high-integrity outputs for safety-related field control

DO880 combines current-limited drivers, channel diagnostics and redundant support for demanding 24 V DC output duties.

Official technical data

Product type

Digital output module

Article number

3BSE028602R1

Type designation

DO880

Signal specification

24 V DC; 19.2–32 V DC

Output channels

16 current-sourcing outputs

Continuous current

0.5 A per channel

Redundancy

Single or redundant

Diagnostics

Open load, short circuit, overtemperature

Mechanics

S800 I/O

High integrity

Yes; SIL3 capability

Operating Environment

Operating temperature

0 to +55°C

Storage temperature

−40 to +70°C

Relative humidity

5–95%, non-condensing

Protection

IP20 in cabinet

Safety & Compliance

Remove ModuleBus and field power before handling the module. Verify the FE key code, compatible MTU, output polarity and configured normally energized/de-energized channel behavior before commissioning.

Technical reference: ABB DO880 Compact Product Suite hardware data sheet.

BRAND & APPLICATIONS

Email : sales9@apterpower.com

Brand characteristics

ABB S800 I/O modules combine modular termination, detailed diagnostics and scalable redundancy for process and safety automation.

High integrity

Fault-tolerant output drivers support safety architectures.

Advanced diagnostics

Channel supervision detects open load and short circuit faults.

Modular service

S800 mechanics simplify cabinet replacement and expansion.

Application fields

DO880 is used for supervised actuator control where dependable 24 V DC output operation is required.

Safety systems

SIL3-oriented shutdown and interlock outputs.

Process plants

Solenoid, relay and contactor control in DCS cabinets.

Redundant I/O

Single or redundant high-availability installations.

Recommended models

ABB

PM865K01 3BSE031151R1

PM866K01 3BSE050198R1

CI854AK01 3BSE030220R1

CI867K01 3BSE043660R1

AI845 3BSE023675R1

AO845A 3BSE045584R1

DI810 3BSE008508R1

DO810 3BSE008510R1

DO880 3BSE028602R1

SD812F 3BDH000014R1

SD821 3BSC610037R1

SD832 3BSC610065R1

TU810V1 3BSE013230R1

TU830V1 3BSE013234R1

TB840A 3BSE037760R1

CI801 3BSE022366R1

CI840A 3BSE041882R1

PM802F 3BDH000002R1

EI803F 3BDH000017R1

SA801F 3BDH000011R1

Bachmann

MPC240

DIO280

DI232

DO232

AIO288

AI204

AO202

CNT204

EM203

FS212/N

MC205

GM260

OT115/R

RS204

BS210

DA3284-C

PTAI216

PVA216

AIO216

CNT204/H

SERVICE & POLICY

Email : sales9@apterpower.com

01 · IDENTIFY

Provide the complete DO880 3BSE028602R1 order code, installed system and required quantity.

02 · VERIFY

Confirm the FE key code, selected MTU, redundancy mode and channel energization strategy.

03 · QUOTE

Review availability, pricing, lead time, warranty and delivery terms.

04 · DISPATCH

Complete order checks, protective packing and destination-based shipment planning.
