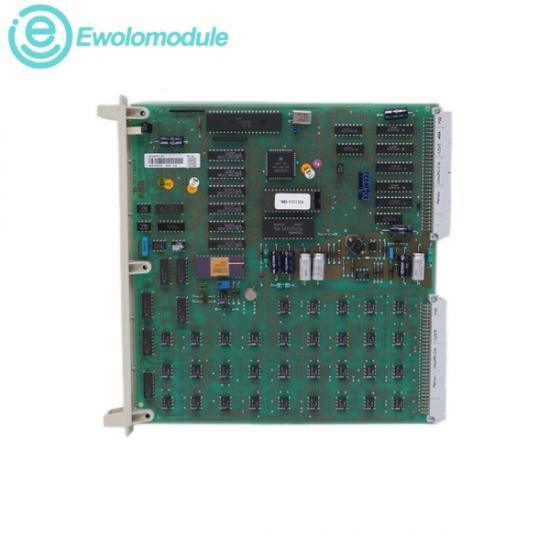

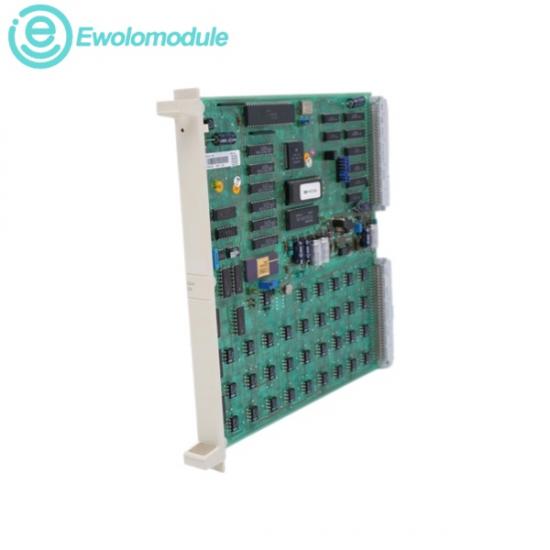

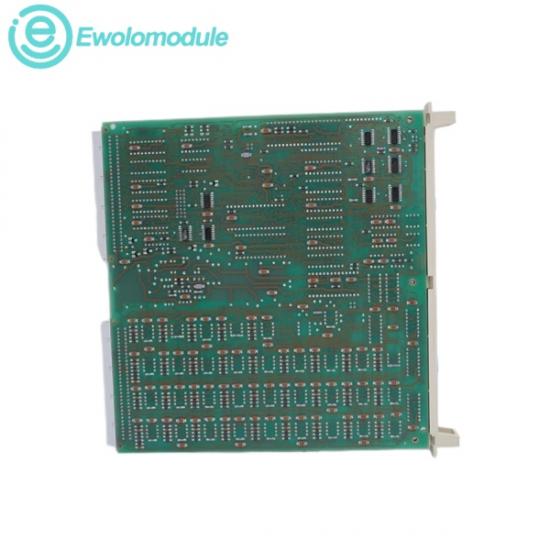

The ABB DSAI133 57120001-PS is a high-density, high-performance analog input board specifically engineered to manage multi-channel data acquisition within the Advant Controller 400 (AC400) and AC450 process environments. Configured as a 32-channel single-ended analog input module, it accurately captures low-level continuous electronic signals generated by sensors and transmitters across a plant facility. The card features advanced unipolar and bipolar signal processing topology, outstanding instrument accuracy filtering to eliminate noise, and deep backplane galvanic isolation to protect central processing controllers from volatile electrical anomalies in the field.

Supported Input Voltage Range:

Nominal 0 to +10 VDC / ±10 VDC

Supported Input Current Range:

Nominal 0 to +20 mA / 4 to 20 mA

Hardware Measurement Accuracy:

0.025% of full scale

System LocalBus Supply Voltage:

5 VDC / 24 VDC backplane carrier integration

Ambient Operating Temperature:

0°C to +55°C (+32°F to +131°F) continuous cabinet environment rating

Relative Operating Humidity:

5% to 95% (Non-condensing state)

Industrial Applications

Typical Scenarios

High-Density Sensor Telemetry Integration:

Directly aggregates continuous data streams from arrays of multi-variable instruments, such as differential pressure transmitters, flowmeters, tank level sensors, and analytical gas probes.

Pulp,  Printing Operations:

Tracks tension parameters, moisture content levels, liquid chemical feed rates, and steam pressure levels inside heavy-duty multi-stage paper mill machinery.

Chemical,  Oil Refining:

Monitours temperature profiles within distillation columns, analyzes volumetric pipeline displacement rates, and aggregates tank level metrics across hazardous processing cells.

Power Generation:

Aggregates continuous thermal analytics from steam boiler feeds, cooling loop inputs, and fuel manifold valves to ensure optimal generating efficiency.

Metals,  Material Processing:

Monitors raw material weight sensors, conveyor speed metrics, and blast furnace exhaust characteristics in iron and steel processing facilities.
