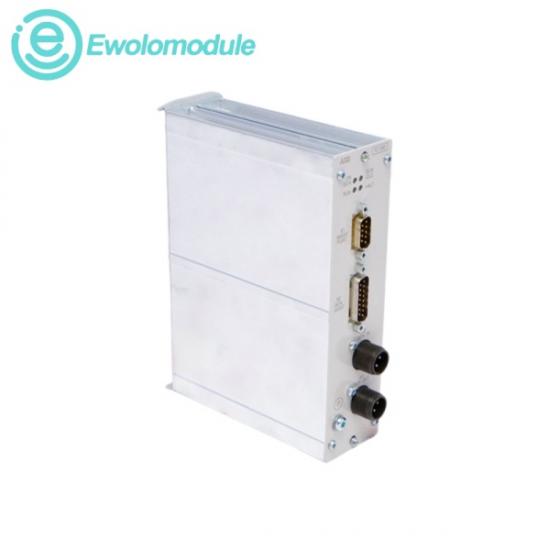

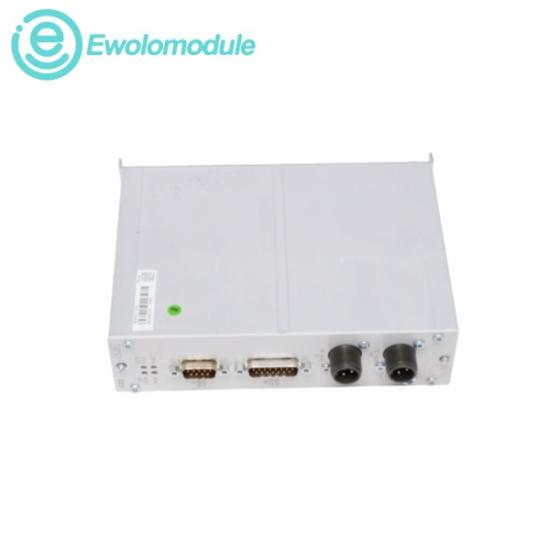

The ABB TC530 3BUR000101R1 is a specialized multiport interface unit and network communication node designed exclusively for legacy system management within the Advant MOD 300 Distributed Control Network (DCN). Acting as a "T-Box" tap or drop module, it establishes a reliable communication link between individual local process controllers and the high-speed main DCN backbone array. The hardware ensures uninterrupted signal distribution, safe signal separation, and precise real-time communication routing across vintage industrial computing grids. It is carefully engineered to guarantee total backplane protection against network anomalies and configuration noise.

System Platform:

MOD 300 Series Industrial Controls

Backplane Input Logic Voltage:

5 VDC / 24 VDC standard carrier integration

Internal Component Array:

Complex Programmable Logic Device (CPLD) execution matrix

Nominal Logic Input Voltage:

5 VDC / 24 VDC standard system carrier loop integration

Industrial Applications

Typical Scenarios

Distributed Control Network:

Serves as a physical serial/network loop tap box within MOD 300 cabinet architectures to drop communication connections from the primary DCN line to independent controller chassis without disrupting signal continuity.

Petrochemical Processing:

Maintains long-term network routing infrastructure for continuous process control lines, heat management subsystems, and gas extraction fields regulated by legacy MOD systems.

Power Utility Operations:

Manages essential system-wide inter-module communications within boiler sub-networks, auxiliary turbine data rings, and old control room console nodes.

Pulp,   Printing Mills:

Connects isolated processing segments and continuous web management controllers to the plant-wide data grid for real-time diagnostic reporting.

Large-Scale Infrastructure:

Bridges multi-node industrial communication lines across isolated blast furnaces or extensive material handling arrays.
