01 / PRODUCT DETAILS
S100 I/O / Advant OCS
ABB · S100 I/O / ADVANT OCS

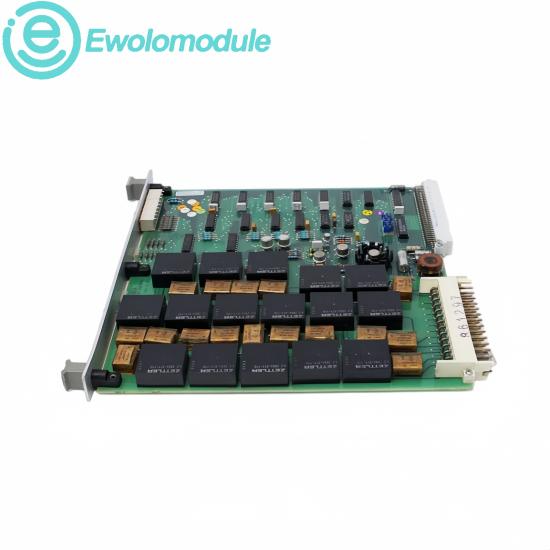

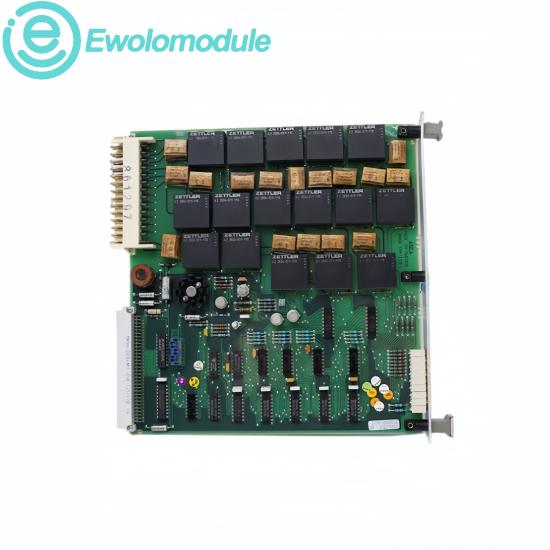

DSDO131
16-Channel Digital Output Board
Relay-output board for established ABB S100 I/O and Advant control installations, providing isolated binary switching for field loads.
REFERENCE SET
57160001-KX
Verify the complete nameplate, hardware revision and installed-system configuration before replacement.
02 / FIRMWARE & CONFIGURATION
Firmware & Updates
The DSDO131 has no standalone user firmware. Before replacement, record the controller software release, S100 I/O database entry and board revision so the host configuration remains consistent.
Configuration & Programming
Map all 16 output points to the documented rack addresses, confirm relay logic and fail-state behavior, then verify field wiring and load class before energizing the replacement board.
Technical data
OUTPUT CHANNELS
16 relay outputs
OUTPUT RANGE
24–240VAC/VDC
OUTPUT ISOLATION
Relay isolated
HOST SYSTEM
S100 I/O / Advant OCS
INSTALLATION
System rack module
03 / BRAND & APPLICATIONS
Brand characteristics
Control heritage
ABB S100 I/O hardware supports long-life Advant and 800xA migration environments.
Relay switching
Channel isolation supports mixed field loads within published relay ratings.
Installed-base fit
Documented module identities simplify planned spare replacement.
Engineering continuity
ABB control tools preserve I/O mapping and plant logic across lifecycle work.
Application fields
Process automation
Binary control of valves, contactors and auxiliary plant equipment.
Power utilities
Relay output duties in legacy station and balance-of-plant systems.
Metals & mining
Rugged discrete control in established Advant installations.
Lifecycle service
Like-for-like replacement during scheduled shutdowns.
