Product category: ABB Advant Master DCS Series / S100 I/O System Series

Product status: New and Original

Tariff code: 85371091

Product description:

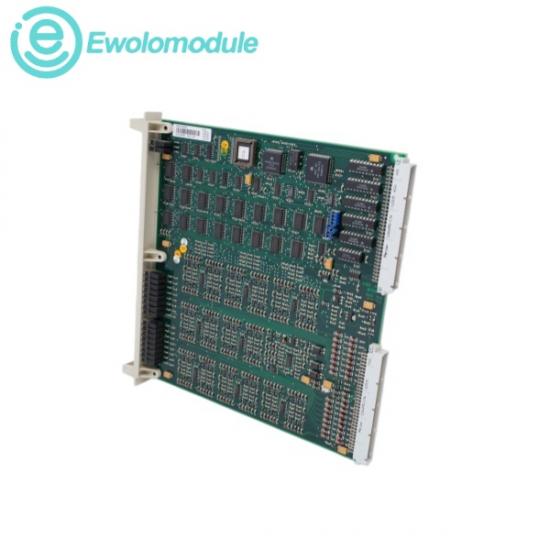

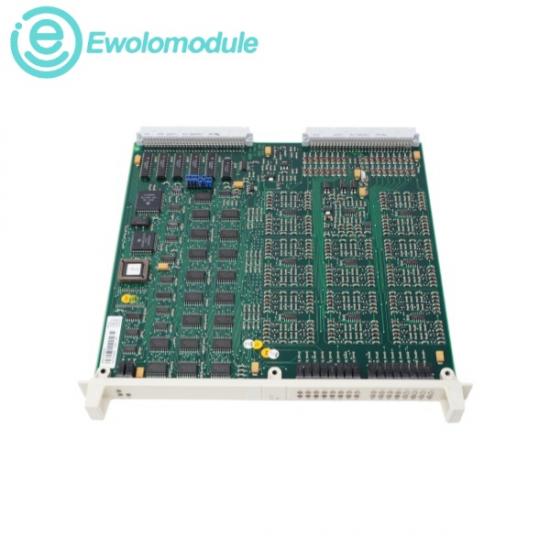

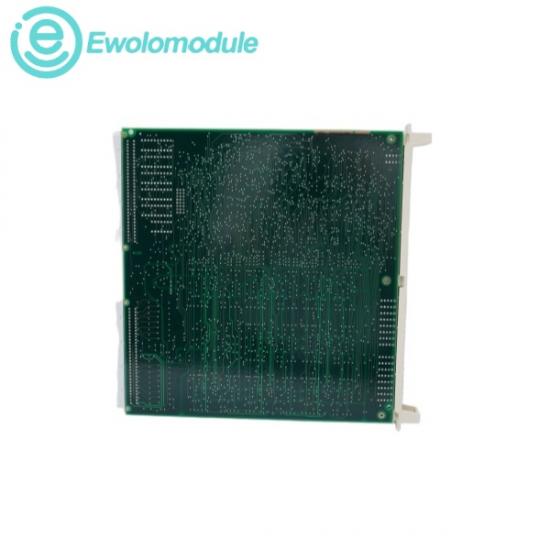

ABB DSDX180 3BSE003859R1 Digital input/output module

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

Item

The ABB DSDX180 3BSE003859R1 is a high-density, bi-directional industrial digital input and output module designed for the ABB Advant Master and Advant OCS distributed control frameworks. Functioning as a dual-purpose peripheral interface board, it communicates over the standardized, rack-mounted S100 I/O bus architecture to process binary field device data. Rather than utilizing fixed hardware layouts, it allows users to assign channels individually for either sensing or execution roles. It suppresses severe industrial electrical noise, safeguarding host CPUs from signal spikes while enabling highly flexible and cost-effective cabinet spacing across power plants, steel mills, and automated manufacturing lines.

Channel Infrastructure:	Features 32 software-configurable channels that can be independently programmed as digital inputs or digital outputs.
Nominal Operating Supply:	Powered and monitored via a standard industrial 24 VDC system supply line.
Input Voltage Thresholds:	Configured with a distinct logical "1" (ON) state at >15 VDC and a logical "0" (OFF) state at <5 VDC.
Output Driving Current:	Provides solid-state switching parameters capable of driving standard discrete loads up to 0.5 A per channel under output configurations.
Redundancy Support:	Supports advanced dual-redundant wiring schemes; up to 3 redundant pairs can connect to a TX513 conversion panel.
