Product category: ABB MasterPiece 200/1 Control System Series

Product status: New and Original

Tariff code: 85371091

Product description:

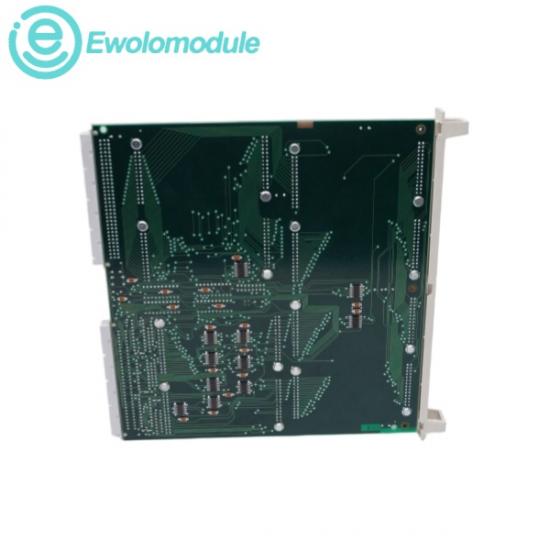

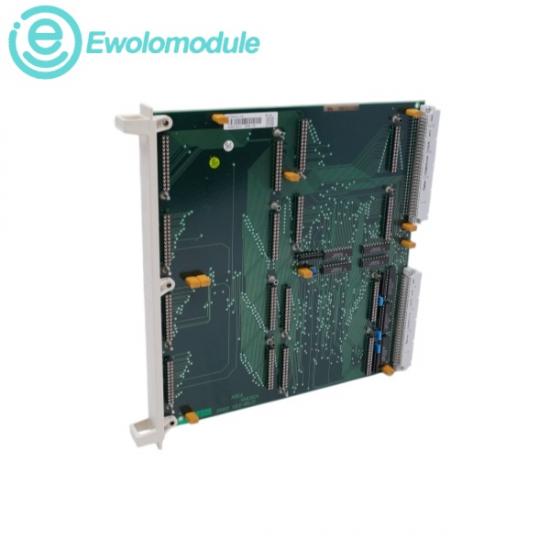

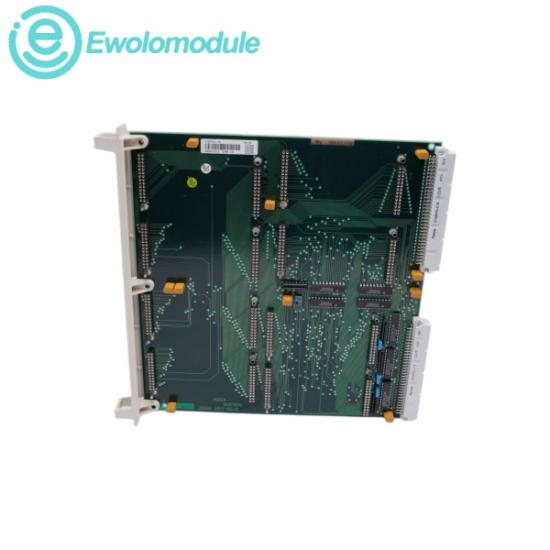

ABB DSMB176 57960001-HX Memory Board

The DSMB176 57960001-HX is an original RAM expansion board for MasterPiece 200/1 processors. Incorporating the DSMB176 57960001-HX safely maximizes volatile data capacity and execution stability in critical legacy DCS networks.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

Product Introduction

The ABB DSMB176 57960001-HX is a high-performance memory expansion module designed for ABB's industrial automation and control systems. It serves as dedicated hardware memory support, extending the host controller's internal processing capacity to run extensive applications, process data logging, and manage advanced control system algorithms. The DSMB176 is a non-volatile memory expansion module that provides expanded storage capacity for critical process control applications. By utilizing socketed memory chip layouts on a rigid industrial printed circuit card, it expands processing architecture limitations while ensuring stable data execution without communications latencies.

Capacity:	2 MB, 4 MB, or 176 KB non-volatile storage
System Voltage Requirements:	Powered entirely from the backplane chassis, relying on a 5V DC logic voltage rail
Current Load Consumption:	Typically 300 mA to 500 mA at 5V DC
Ambient Operating Temperature:	0 °C to +55 °C
Storage Temperature:	-40°C to +85°C
Relative Humidity:	0–95% non-condensing

Applications by Industry

Distributed Control Systems (DCS):	Provides essential memory support for ABB Advant OCS and MasterPiece 200/200I control systems.
Recipe & Logging Buffering:	Buffers batch system recipes, historical sequence event captures, and complex industrial algorithms.
Hardware Maintenance & Swaps:	Used as a direct drop-in replacement part to preserve running applications during legacy plant lifecycles.
Real-time Control & Monitoring:	Supports high-speed data access essential for real-time process control, monitoring, and fault detection.

Application

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
