Functional Description

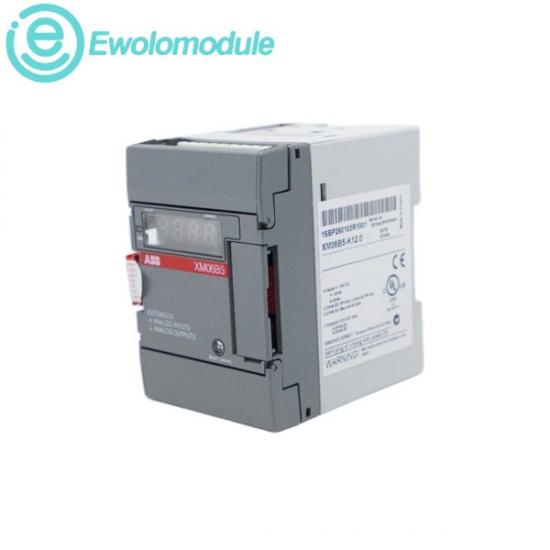

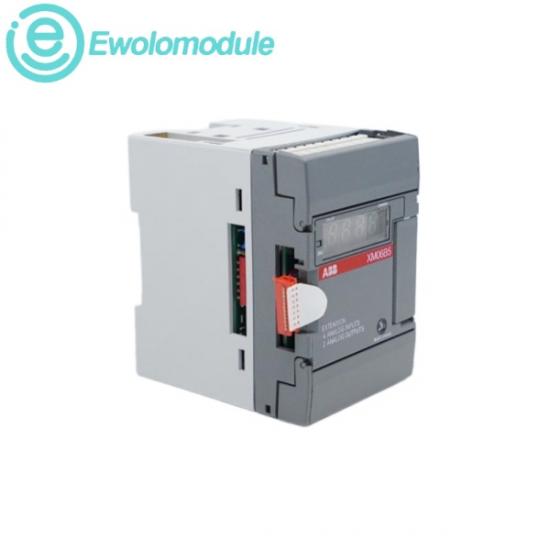

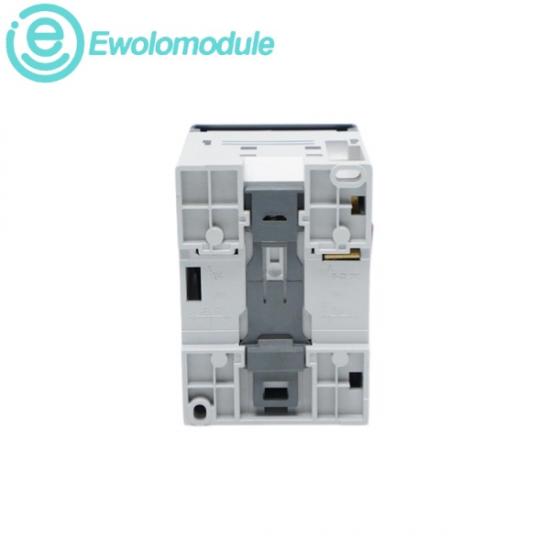

The ABB XM06B5 1SBP260103R1001 is an analog input/output extension module belonging to the ABB AC500 PLC series. It functions as a robust interface block that directly attaches to central processing units or remote interface structures, bridging field sensors with core automation networks. It is designed for DIN rail mounting and features a compact housing for flexible installation in control cabinets.

(1) Operating Voltage: External 24V DC nominal power supply system

(2) Channels Configuration: Built with 4 analog inputs and 2 analog outputs

(3) Analog Output Ranges: Configurable for 0-10V DC, 0-20 mA DC, and 4-20 mA DC loops

(4) Ambient Operating Temperature: 0 °C to 55 °C (32 °F to 131 °F) under regular operating conditions

(5) Storage Temperature: -40 °C to 75 °C (-40 °F to 167 °F) protected storage environment

Applications by Industry

v Process Parameter Monitoring: Acquires live thermal measurements and voltage loops from raw factory sensors to monitor continuous production dynamics.

v Actuator Loop Control: Drives external industrial devices like proportional valves, temperature controllers, and speed variators via analog command output signals.

v Distributed I/O Node Scaling: Mounts directly alongside ICMK remote terminal nodes to distribute standard operational control tasks away from the main central layout.

v Legacy Cabinet Maintenance: Acts as a specialized drop-in spare unit to replace aged or damaged expansion blocks inside marine and land-based automation systems.
