Product category: ABB Advant OCS with Master SW series

Product status: New and Original

Tariff code: 85371091

Product description:

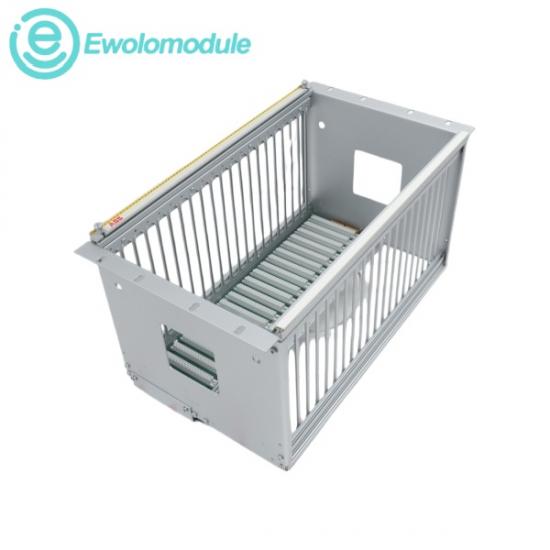

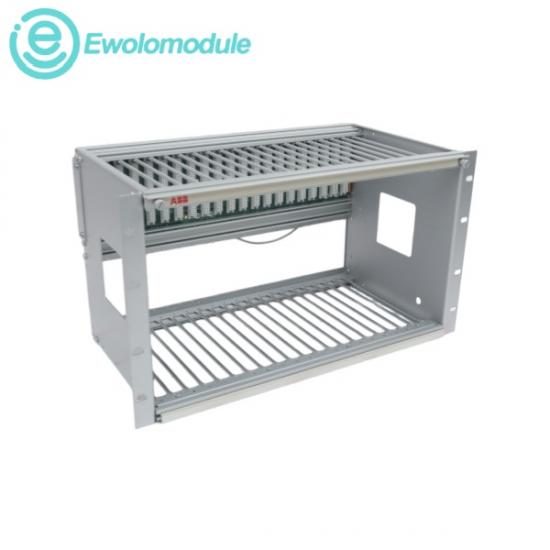

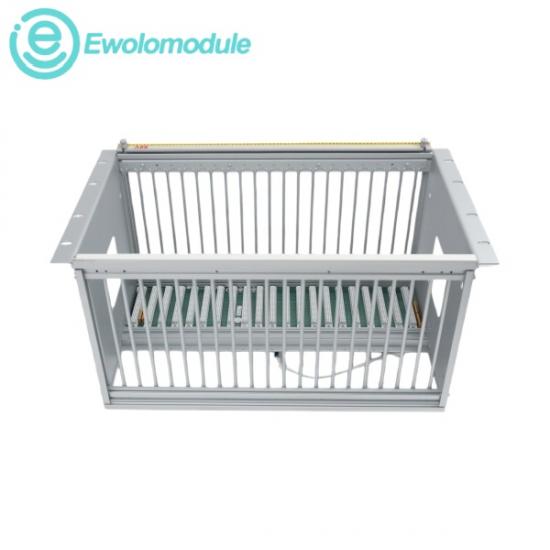

ABB DSRF182 57310255-AL I/O Equipment Frame

The ABB DSRF182 57310255-AL is a dedicated S100 I/O equipment frame. Designed as a heavy-duty subrack with integrated supervision signaling, this ABB DSRF182 57310255-AL module provides reliable, modular hardware hosting for legacy industrial process automation control environments.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

Description

The ABB DSRF182 57310255-AL is a robust and specialized hardware subrack frame designed to serve as the mechanical housing and electrical backbone for modular I/O expansion. Serving as the structural and electrical backbone for S100 series I/O modules, this frame provides standardized mounting slots, backplane bus communication, and integrated supervision signal routing. It does not perform I/O conversion itself but forms the essential foundation for operating S100 I/O assemblies reliably in continuous-duty industrial applications. The frame is a passive mechanical subrack that incorporates backplane circuitry for power distribution and supervision signal transmission.

ü Input Voltage Infeed: Routes 24 V DC (system/field power) and 5 V DC

ü Digital/Binary Input Loop Voltage: Supports 24 V DC / 48 V DC wetting voltages commonly utilized

ü Digital Output Contact Rating: The tracking layout easily handles up to 24 V to 250 V AC/DC

ü Operating Temperature: 0°C to +55°C (32°F to 131°F) ambient cabinet temperature under standard operation

ü Storage Temperature: -25°C to +70°C (-13°F to 158°F) for shipping and warehouse preservation

ü Relative Humidity: 5% to 95%, strictly non-condensing

Industrial Applications

² Industrial Automation: Serves as the central interface backbone in legacy manufacturing, process control cabinets, and distributed power management setups.

² Modular I/O Expansion: Used in engineering plants to safely expand the total count of binary/analog input and output signals connected to a MasterPiece controller.

² System Upgrades & Maintenance: Utilized as an essential, high-reliability spare part or expansion frame specifically inside established ABB Advant Master Process Control Systems.

Application Industry

1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
