Product category: ABB Advant Master Process Control System series

Product status: New and Original

Tariff code: 85371091

Product description:

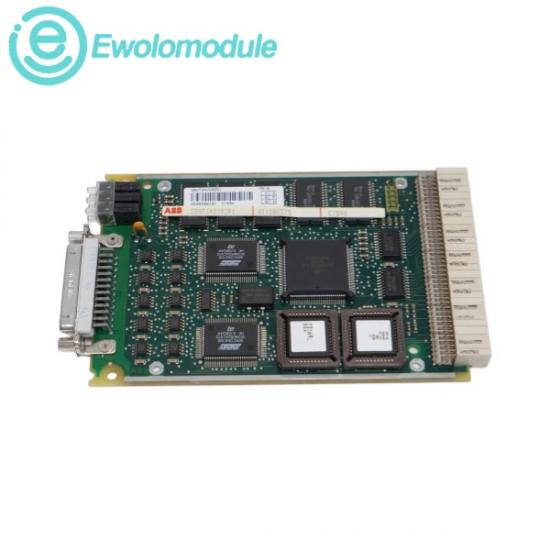

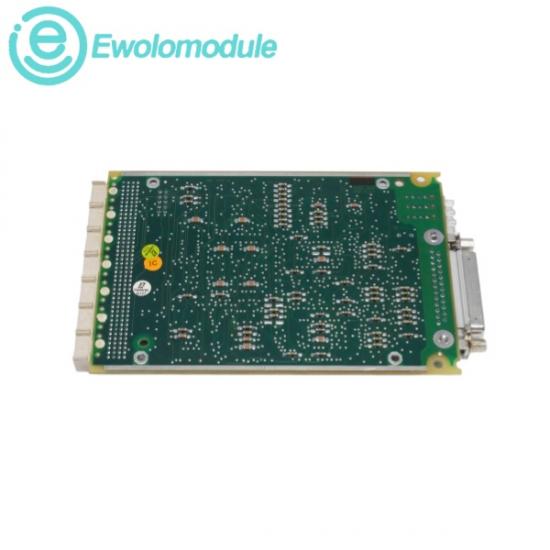

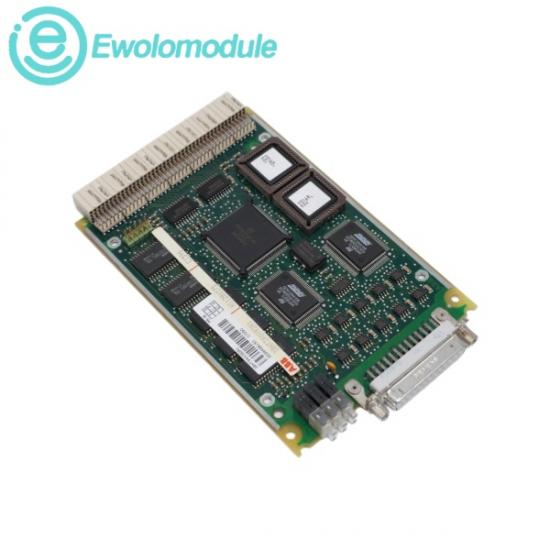

ABB CI590 3BHT340092R1 SERCOS Controller

The ABB CI590 3BHT340092R1 is a CI590 SERCOS controller communication module. Designed for Advant Master systems, this compact ABB CI590 3BHT340092R1 interface board provides reliable, real-time deterministic field bus network control.

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

Description

The ABB CI590 3BHT340092R1 is a high-performance communication interface board designed to act as a dedicated SERCOS controller within an industrial automation network. Installed into the dedicated IFB slot of an AC450, MasterPiece, or AC100 controller backplane，this module serves as the physical SERCOS master interface, bridging the controller with SERCOS servo drive networks via a fiber-optic ring topology. It functions primarily as an intelligent bridge, enabling real-time, deterministic, and highly synchronized fiber-optic motion control communication between the central ABB master process controller and distributed field devices like servo drives.

ü Input Supply Voltage: +5 V DC (±5% tolerance)

ü Current Consumption: Typically 0.3 A to 0.5 A

ü Power Dissipation: Approximately 1.5 W to 2.5 W

ü Operating Ambient Temperature: 0 °C to +55 °C (+32 °F to +131 °F) under vertical

ü Storage & Transport Temperature: -40 °C to +70 °C (-40 °F to +158 °F) under sealed warehouse conditions

ü Relative Humidity: 5% to 95%, strictly non-condensing

Industrial Applications

² Motion Control Networks: Used for integrating high-speed, synchronized servo drives and motion axes into the central automation platform via the SERCOS bus.

² Process Automation Systems: Implemented in factory setups utilizing the ABB Advant Master DCS for robust field communication.

² System Expansion and Upgrades: Serves as a crucial hardware expansion module or replacement spare part to maintain legacy industrial networks.

Application Industry

1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
