01PRODUCT OVERVIEWPROCONTROL P14 / CONTROL BOARD
|
ABB
ED1202B HEDT300355R1 HE693655-307/16

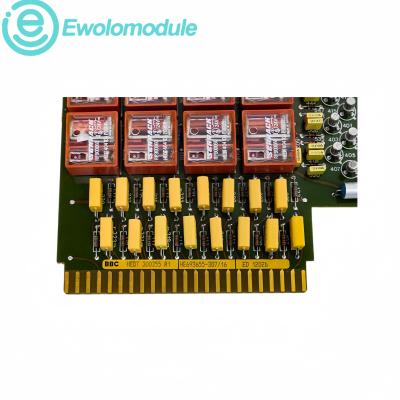

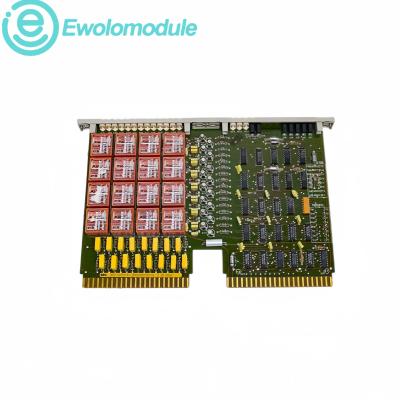

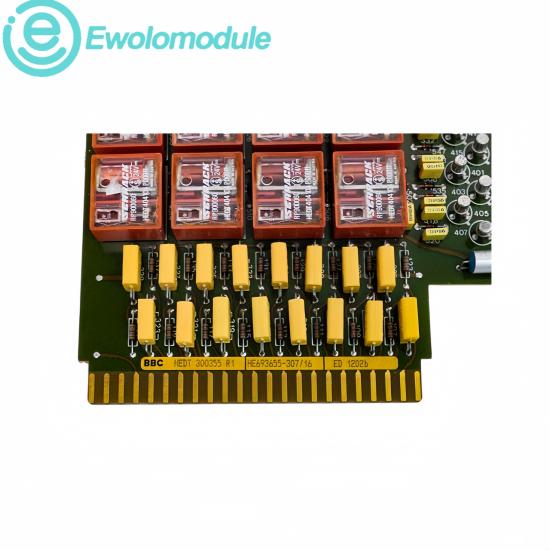

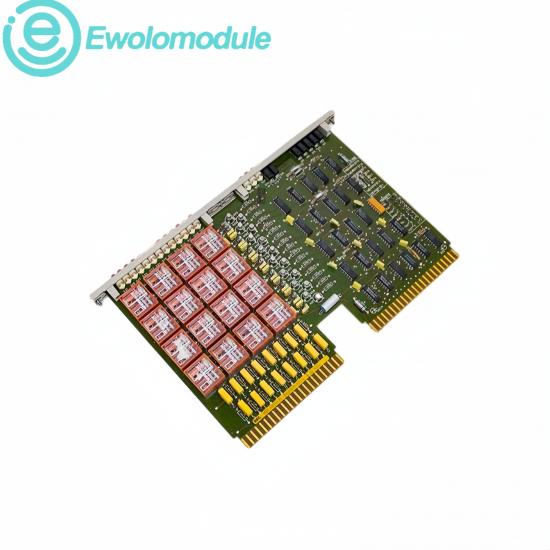

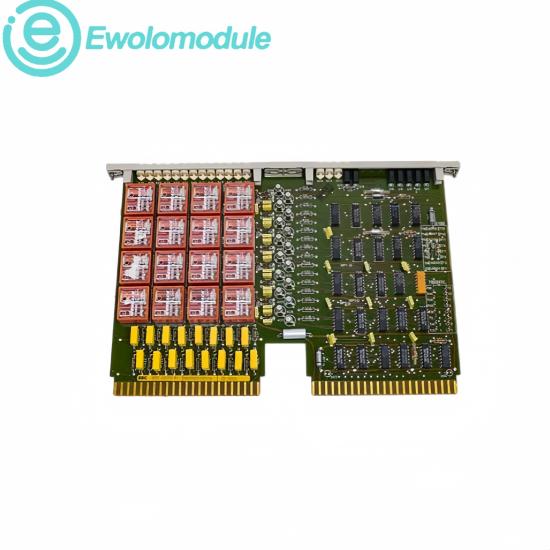

Procontrol P14 PC Board
|
PRODUCT ROLE
Plug-in control board for documented Procontrol P14 racks
Provides revision-specific control and signal-processing functions inside compatible ABB Procontrol assemblies.
|
02DIAGNOSTICS & DEPLOYMENTPROTECTION / INSTALLATION
Diagnostics & Protection
Review rack diagnostics, process alarms and board indicators before removal. Record the exact slot, revision and connector arrangement.
Isolate the rack and associated field circuits, verify the absence of hazardous voltage and use ESD handling throughout service.
|
Installation & Upgrades
Insert only in the documented Procontrol P14 position, maintain card-guide alignment and seat backplane connectors without force.
Treat every board suffix as configuration-controlled. Confirm host software, timing and I/O compatibility before recommissioning.
|
Technical data
| System family |
Procontrol P14 |
Module format |
Plug-in PC board |
| Supply context |
220 VAC cabinet |
Timing reference |
30 kHz |
| Cabinet rating |
IP54 context |
Ambient range |
-20°C to +70°C |
| Mounting |
Rack slot |
Revision control |
Exact suffix required |
Verify the complete order code, installed revision and system documentation before commissioning.
03BRAND & APPLICATIONSSYSTEM CONTEXT
| Brand characteristics |
Application fields |
| ABB engineering |
ABB industrial hardware supports dependable operation in established automation systems. |
Power generation |
Boiler and turbine auxiliary control racks. |
| Installed-base fit |
Procontrol P14 hardware uses modular rack architecture for long-life power and process control. |
Process control |
Legacy plant automation with Procontrol hardware. |
| Service discipline |
Documented diagnostics, safe handling and configuration checks support controlled fault recovery. |
Energy systems |
Signal processing in documented cabinet assemblies. |
| Lifecycle continuity |
Complete order-code and revision verification helps preserve the installed system architecture. |
Lifecycle service |
Revision-matched board replacement during outages. |
