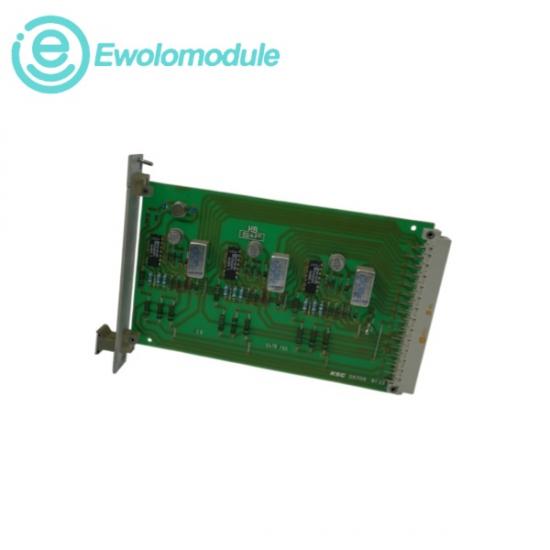

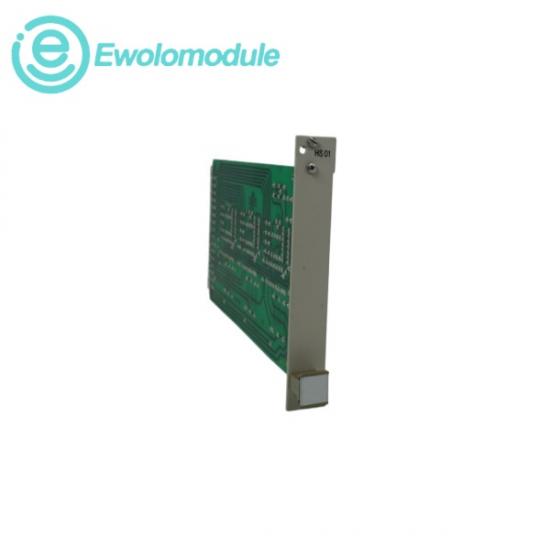

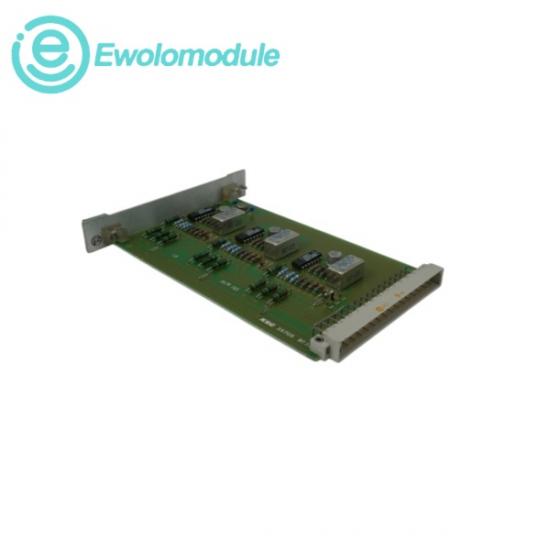

The ABB HS01 is an industrially hardened interface and data-routing hardware component designed for distributed automation loops. Functioning as a high-density system bus adapter module, this card sits securely in a localized controller subrack slot to handle traffic between main processor assemblies and remote I/O nodes. It bridges localized logic streams by performing electronic isolation, preventing external power surges and high-frequency factory floor interference from compromising the sensitive central control backplane.

Operating Logic Voltages: Draws internal system logic-level power (+5 VDC or +24 VDC directly from the rack carrier power rails)

Terminal Cross-Section Interface: Onboard X2 terminal blocks accept solid or stranded conductor wires ranging from 0.5 mm² to 4.0 mm² (22 to 12 AWG)

Screw Terminal Tightening Torque: Rated for field technician tightening thresholds between 0.4 Nm and 0.8 Nm (0.3 to 0.6 lbf.ft)

Required Disconnection Tools: Designed for spring terminals requiring a standard 0.6 mm × 3.5 mm blade flat screwdriver

Operating Temperature Limits: 0 °C to +55 °C (+32 °F to +131 °F)

Storage Temperature Range: -40 °C to +75 °C (-40 °F to +167 °F)

Relative Humidity Matrix: 5% to 95% (non-condensing atmospheric layout)
