Product category: ABB Bailey INFI 90 Process Management System

Product status: New and Original

Tariff code: 85371091

Product description:

ABB IMASI03 Universal Analog Input

Inquiry stage

Send me part number & company name & whatsapp & email address
Payment stage

Once price confirmed , I will make ProForma Invoice with bank account for you to pay
Shipment stage

Order your parts and arrange collection on the same day from our warehouse, either in person or by courier.

WhatsApp:+86 17359287459

Email:sales15@amikon.cn

Add:Siming district , Xiamen , Fujian,China

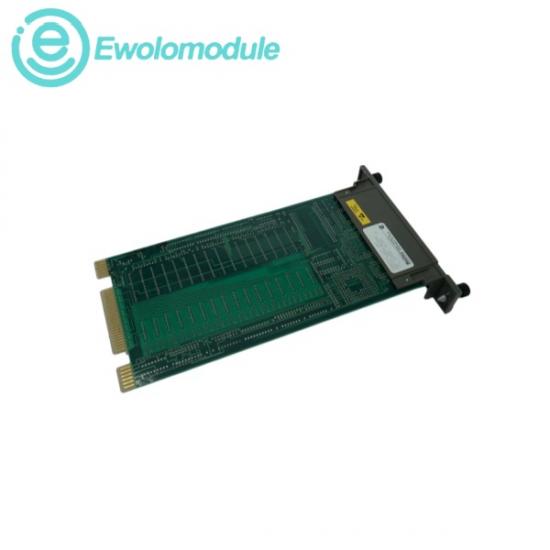

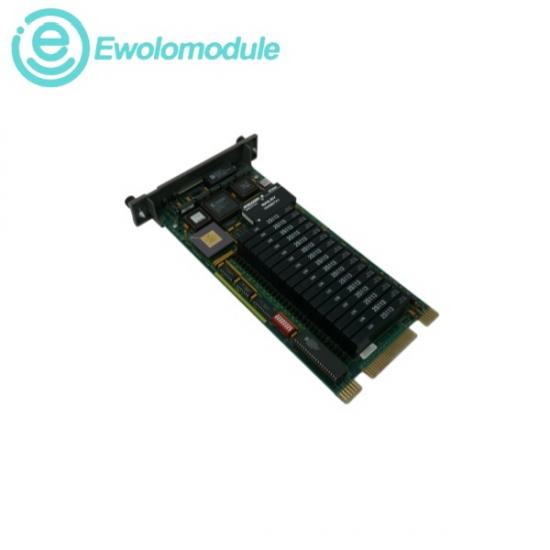

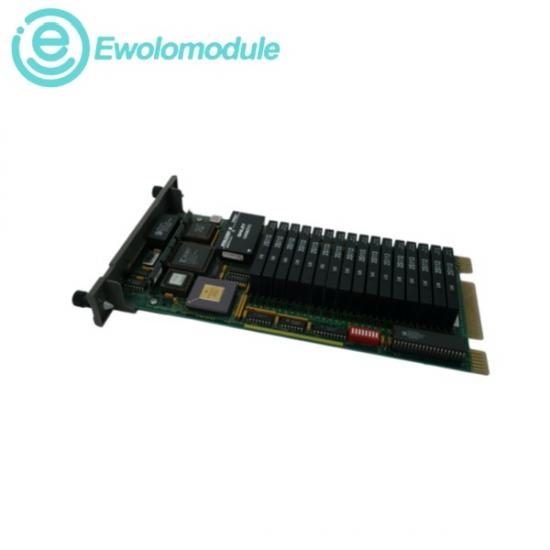

ABB|IMASI03

The ABB IMASI03 is a high-performance, 16-channel Universal Analog Input Slave Module engineered to interface diverse field process indicators directly with a system's multi-function processor. Acting as an intelligent data collection gateway, this module provides direct, onboard conditioning—including high-accuracy amplification, digital filtering, and secure signal isolation—for a variable mix of field sensors. It is uniquely versatile, allowing each channel to be independently programmed to process millivolt, high-level voltage, current loop, RTD, or thermocouple inputs. The module converts raw analog field physics into highly precise digital data strings with an analog-to-digital (A/D) resolution reaching up to 24 bits, providing the primary controller with real-time process visibility.

More Details

Channel Density: 16 independently configured process input channels

Current: Standard 4 to 20 mA loops

High-Level Voltage: -10 V to +10 V

Millivolt: -100 mV to +100 mV

Analog-to-Digital (A/D) Resolution: Programmable independently per channel over a range from 16 to 24 bits

System Power Requirements: Draws internal bus logic power rates of +5 VDC and +15 VDC, consuming a total power load of approximately 4.0 VA

Operating Temperature Limits: 0 °C to +55 °C (+32 °F to +131 °F) for nominal control cabinet operations

Storage Temperature Range: -40 °C to +75 °C (-40 °F to +167 °F)

Relative Humidity: 5% to 95% (non-condensing atmospheric layout)
