Quick Details

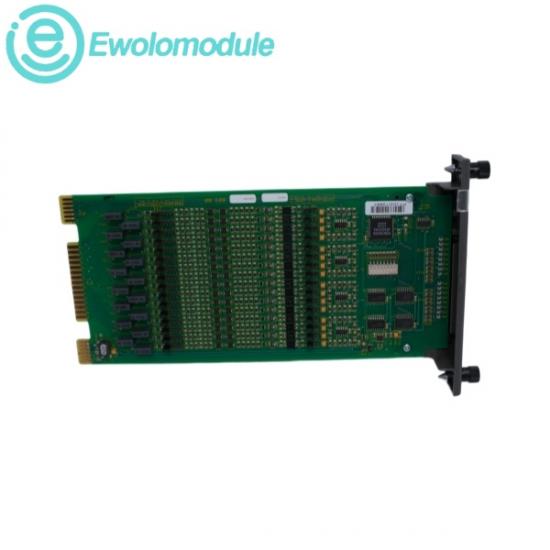

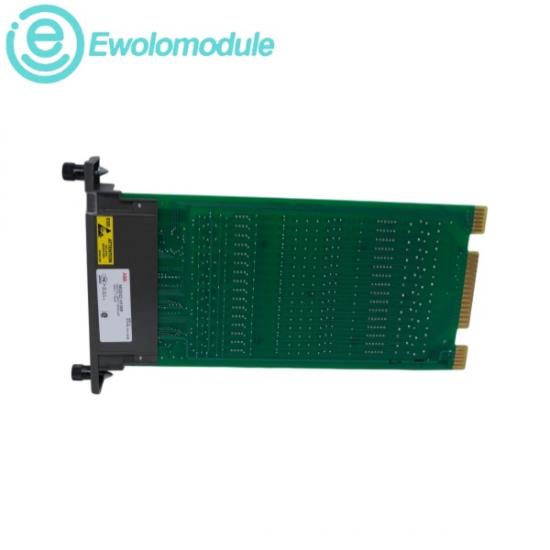

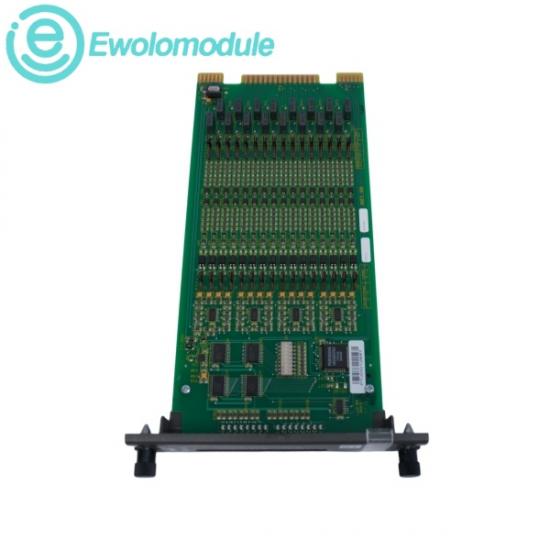

The ABB IMDSI22 Digital Input Module is an advanced microprocessor-based plug-in circuit board engineered to process external operational state changes into standardized digital data for a distributed control system. Installed directly within a system rack cage, it manages 16 isolated physical input channels that constantly sense closed contacts, field limits, and mechanical switch transitions. The onboard logic interprets variable field voltages, digitally filters dangerous contact bounce or localized line noise, and presents a synchronized status matrix to central controller modules to govern live automation loops safely.

l Number of Channels: 16 separate, isolated digital input points.

l Input Voltages: Highly versatile, supporting 24 VDC, 48 VDC, 125 VDC, or 120 VAC field configurations.

l Power Consumption: Typically draws approximately 4.5 Watts under normal full-load operation.

l Input Current: Standard low-power loop sensing current, generally around 2 mA to 10 mA per channel.

l Electrical Isolation: Galvonic boundary protection up to 1500 V RMS between channels and backplane logic.

l Operating Temperature: Designed for industrial rack environments, running reliably from 0°C to 55°C (32°F to 131°F).

l Relative Humidity: Survives 5% to 95% non-condensing environments.

Product Applications

l Switch Status Tracking: Monitors status changes from critical field components like process limit switches, safety pushbuttons, and valve position contacts.

l Mixed-Voltage Integration: Merges diverse electrical loops (like high-power 120 VAC utility lines and low-power 24 VDC control loops) onto one digital platform.

l Industrial Safety Interlocking: Routes automated trip markers and emergency shutdown state confirmations directly to core control loops.

l Sequence of Events (SOE) Logging: Feeds chronological discrete status transitions to ABB Symphony networks for rapid system fault analysis.

Application

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
