Quick Details

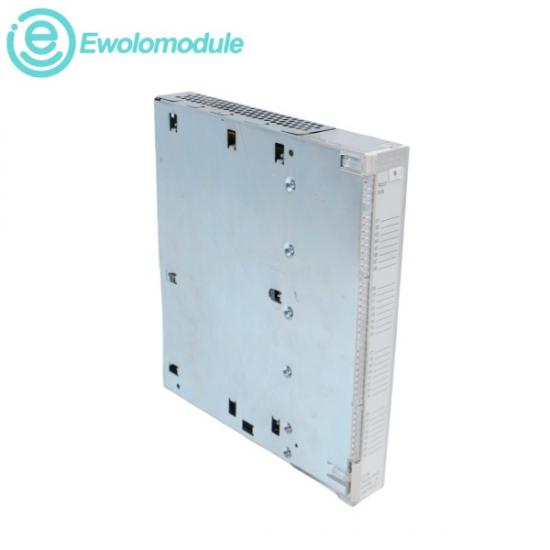

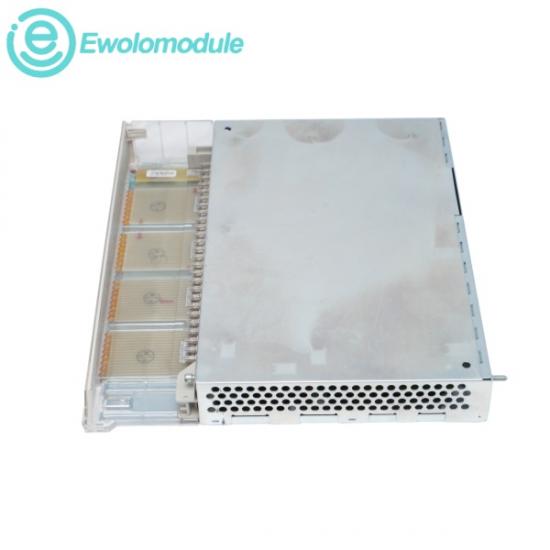

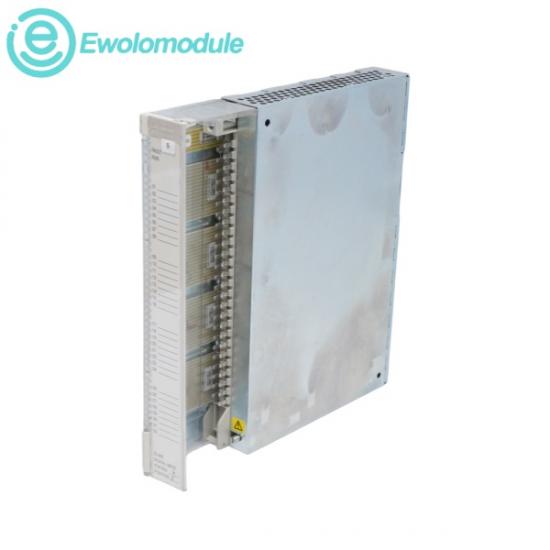

The ABB DI685 3BDS005833R1 Digital Input Module is a high-density, micro-processed industrial automation board designed to capture and synchronize binary telemetry across process loops. Featuring 32 independent channels, the unit provides opto-isolated signal barriers that isolate vulnerable system backplanes from hazardous field overvoltages. Its intelligent onboard circuitry performs high-speed sequence-of-events (SOE) timestamping directly at the hardware layer, manages active loop current paths, and evaluates continuity errors to detect raw cable breaks before they impact plant uptime.

l Number of Channels: 32 high-density, opto-isolated digital input points.

l Input Voltage Envelope: Universally handles rated nominal field inputs of 24 VDC to 48 VDC.

l Internal Sensor Power Supply: Equipped with an integrated 48 VDC sensor loop excitation source.

l Operating Temperature: Industrial standard deployment window, rated for 0°C to 55°C (32°F to 131°F).

Product Applications

l High-Speed Sensor Tracking: Captures live feedback from binary field instrumentation like optical sensors, mechanical limit switches, and status pushbuttons on assembly lines.

l Industrial Safety Interlocking: Routes remote emergency stop actions, valve position indicators, and trip metrics directly into central logic loops.

l Electrical Switchgear Monitoring: Audits operational feedback contacts from auxiliary breakers and high-voltage switches within utility yards.

l Advanced Sequence-Of-Events Profiling: Captures chronological trip cascades across sprawling setups to enable quick root-cause analysis after emergency plant shutdowns.

Application

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
