Quick Details

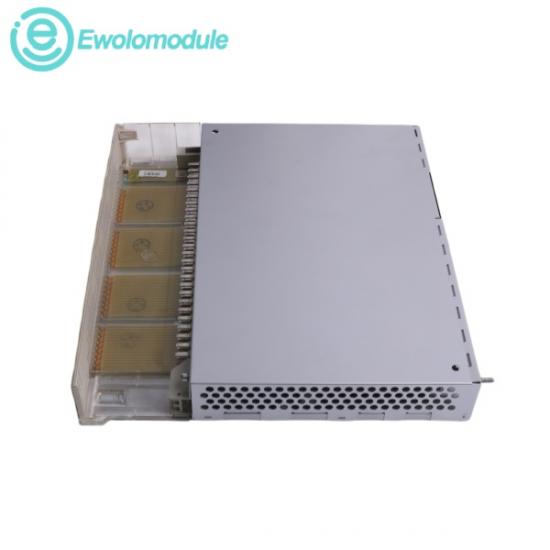

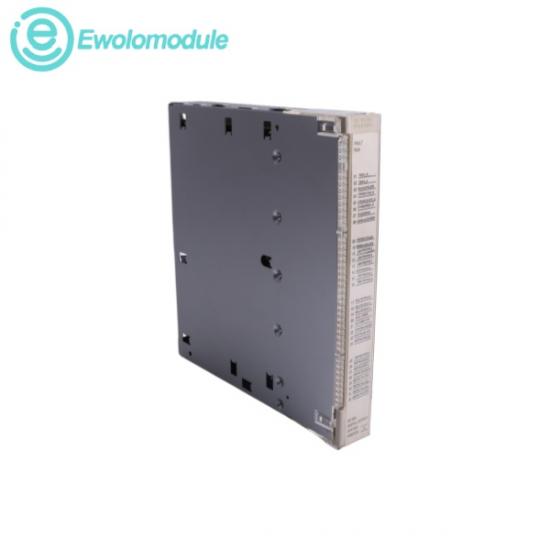

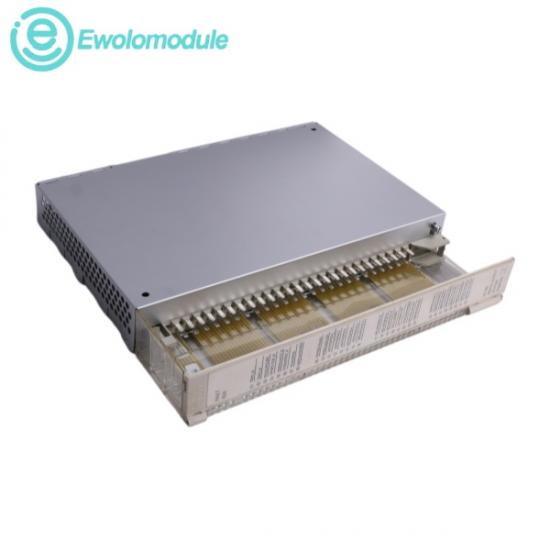

The ABB DO620 3BHT300009R1 is a high-density digital output module engineered for demanding industrial automation and distributed control systems. Part of the ABB S600 I/O family, this 32-channel module converts controller digital commands into reliable field-level switching signals for driving DC loads such as solenoids, relays, contactors, and indicator lamps. Its robust design features short-circuit proof transistor outputs, opto-isolation in four independent groups for enhanced electrical protection, and a wide operating temperature range suitable for harsh industrial environments.

l Number of Channels: 32 distinct discrete output points.

l Voltage Threshold: Universally operates across an industrial window rated at < 60 V DC.

l Channel Current Load: Provides a maximum continuous output capability of 0.5 A per channel.

l Total Module Current: Constrained to a combined loop output load of ≤ 5 A maximum.

l Galvanic Isolation: Features comprehensive opto-isolation segregated into 4 independent groups.

l Operating Temperature: Designed for standard industrial control cabinets, operating reliably from 0°C to 55°C (32°F to 131°F).

Product Applications

l Solenoide and Valve Actuation: Directs power distribution commands to isolate or open fluid pipelines by controlling electro-pneumatic solenoid valves in petrochemical installations.

l Relay and Contactor Interfacing: Drives high-voltage interposing relays and heavy contactor coils to activate fans, pumps, or conveyors safely.

l Visual and Auditory Alarms: Manages system status alerts by triggering field annunciators, hazard beacons, and alarm horn networks.

l Power Distribution Substation Control: Deployed in power generation control rooms to interact with circuit breaker trip coils and switchgear status controls.

Application

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
