Quick Details

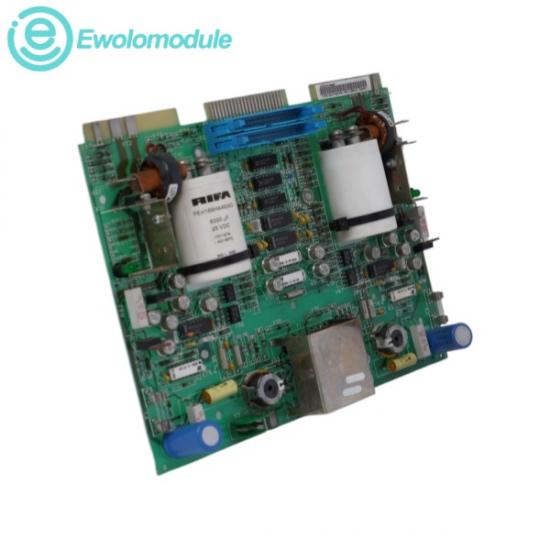

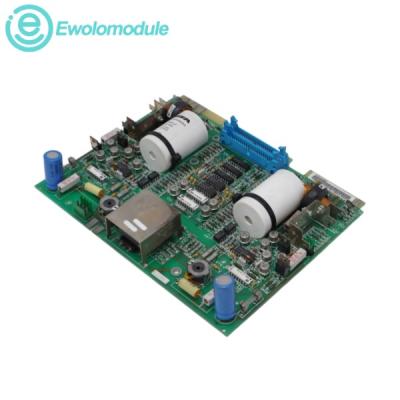

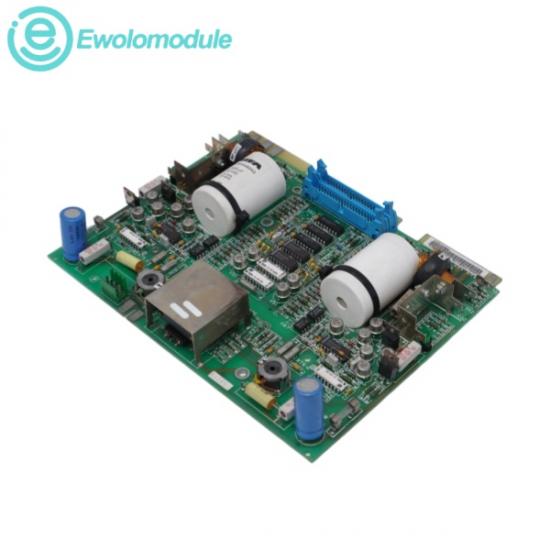

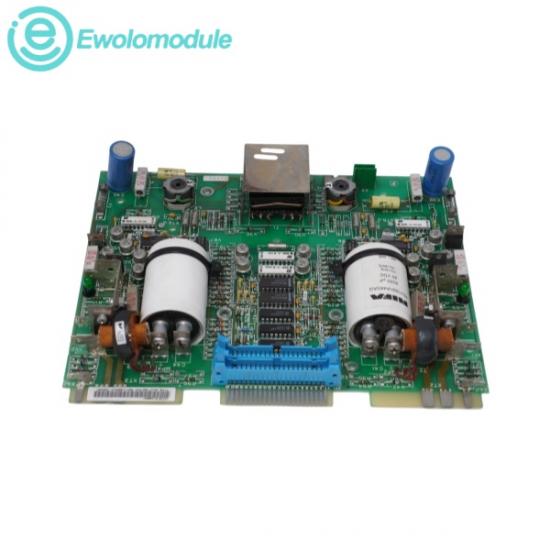

The ABB SNAT630PAC SNAT 630 PAC Network Automation Terminal is an intelligent, high-reliability interface and pulse amplifier module engineered to coordinate complex telemetry exchange between critical motor drive control systems and distributed automation networks. It handles high-frequency pulse synchronization, digital communication routing, and precision analog data translation. By utilizing onboard hardware jumpers and dedicated screw terminal matrices, the device manages mixed-signal environments, actively filters electrical noise, and bridges industrial control interface cards with peripheral cabinet systems to guarantee precise velocity tracking and drive orchestration.

l Analogue Input Signal Options: Configurable via jumpers S1 (AI1) and S2 (AI2) to accept either current loops of 0(4) - 20 mA or voltage spans of 0(2) - 10 V.

l Terminal Interface: Designed with an X50 screw terminal block.

l Operating Temperature: Hardened for plant-floor environments, operating from -20°C to +60°C.

l Storage Temperature Range: Resilient against severe structural facility climates from -40°C to +85°C.

l Relative Humidity: Supports a non-condensing moisture boundary from 5% to 95%.

Product Applications

l Drive Pulse Amplification: Amplifies high-speed digital pulse encoder and tachometer feedback signals over long wiring distances within heavy industrial motor drive enclosures.

l Network Automation Bridging: Serves as a localized terminal node to route RS-485 serial telemetry from main drive control units to master automated networks or external SCADA panels.

l Analog Signal Conditioning: Acts as a field converter that bridges disparate industrial process instrumentation (such as 0-10V or 4-20mA sensor loops) directly into central control unit logic.

l Cabinet Interfacing & Distribution: Consolidates complex control internal wiring by linking the main internal SNAT series control cards to accessible, external cabinet terminal blocks (like Terminal Block X2).

Application

Refinery: Controls emergency shutoff valves to prevent fire and explosion.

Chemical Plant: Provides safety interlocks to automatically isolate hazardous pipelines.

Power Plant: Monitors boilers and turbines, triggering emergency shutdowns during unsafe conditions.

Pharmaceutical Plant: Protects critical reactors from temperature and pressure limits.

Fertilizer Plant: Safeguards high-pressure ammonia units to prevent gas leaks.
